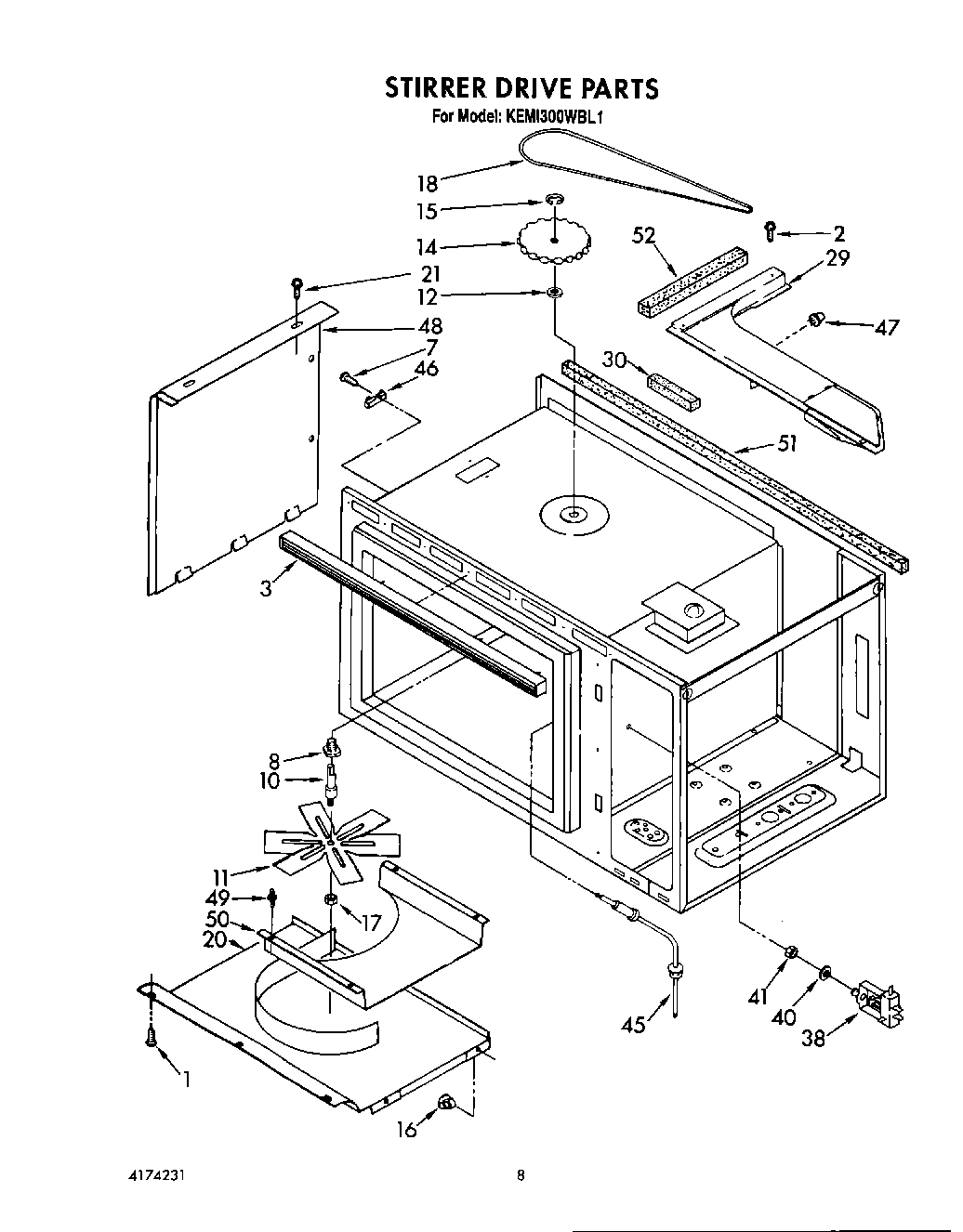

KEMI300WBL1 05 – STIRRER DRIVE

Products

Position	Product
3	screw (3)
3	Grill, Air
8	Bushing, Stirrer
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
14	Pulley, Stirrer Blade
15	“E“ Ring
16	Fastener (4)
17	WP487939 Whirlpool Refrigerator Nut
18	WP313646 Whirlpool Microwave Drive Belt
20	screw, 8-32 x 1/2 (3)
20	Silicone Rubber Gasket
21	Fastener (2)
29	Baffle, Air Exhaust
30	Seal, Foam
38	Probe Jack
40	Washer, Internal Lock
41	Nut
45	(Alt.)
46	Fuse, Thermal
46	screw
47	Screw
47	Sensor, Gas
48	Cover, Side
48	WP488729 Whirlpool Refrigerator Door Screw
49	Support (4)
50	Plate, Tuning
51	Seal, Air Duct
52	Seal, Foam
