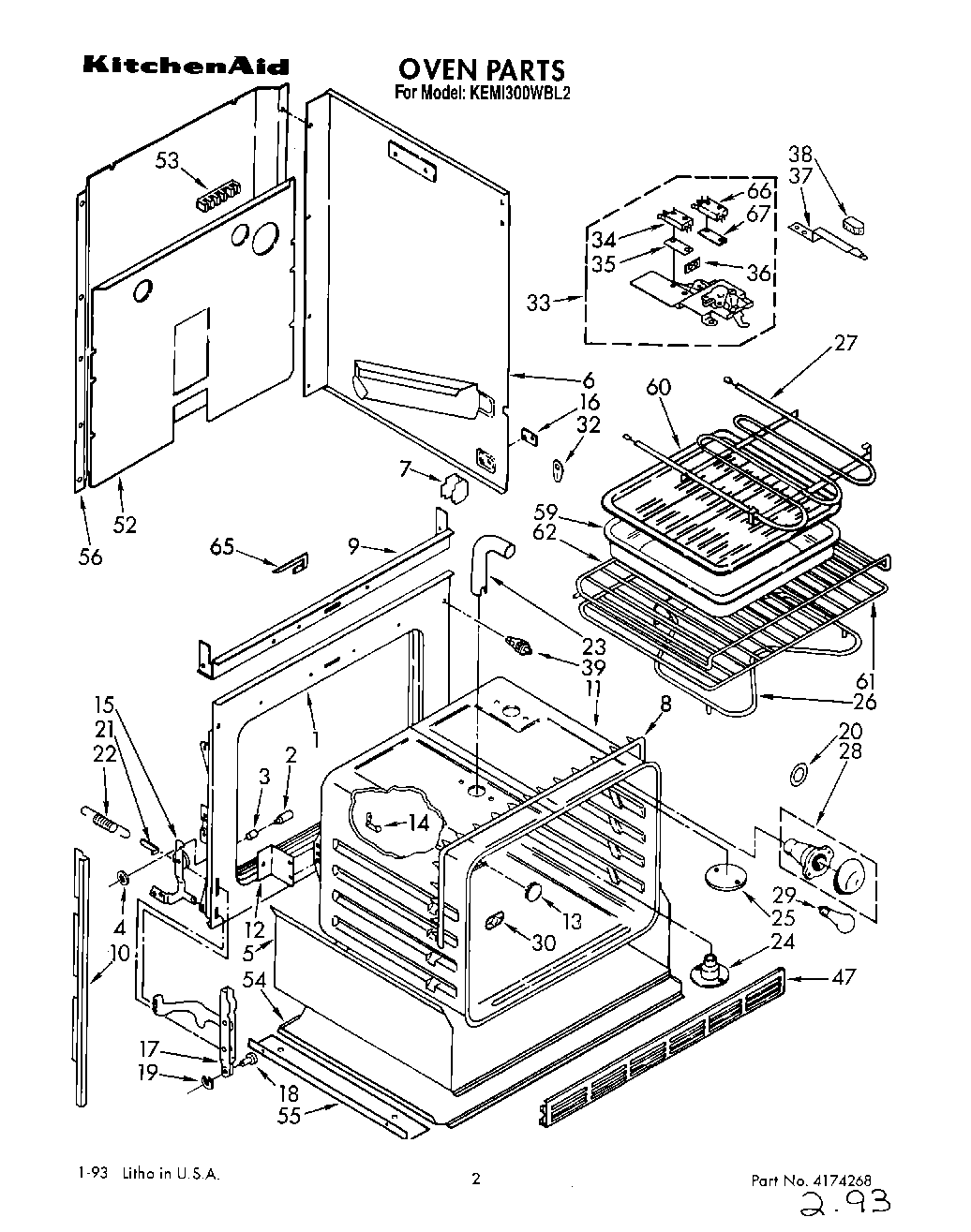

KEMI300WBL2 01 – OVEN

Products

Position	Product
	W10841140 Whirlpool Dishwasher Adhesive
	WPL LIT3147005
	Cookbook
	WPL LIT3147438
	WPL 3171507
	WPL LIT3147571
	WPL LIT3147577
	WPL LIT3149135
	WPL LIT3150702
	WPL LIT3181679
	WPL LIT4174268
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Left Side)
6	Side Wrapper (Right Side)
7	Support, Side Wrapper (4)
8	WPL 3185197
9	Baffle, Top Insulation
10	Side Trim (Right Side)
10	Side Trim (Left Side)
11	SCREW
11	Oven 30“
12	Bracket, Oven Mounting (2)
13	Button, Plug
14	98005642 Whirlpool Clip
15	Hinge Ear, R.H.
15	Hinge Ear, L.H.
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	WP3184533 Whirlpool Range Light Lens Gasket
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Tube, Vent
24	Eliminator, Smoke
24	WP90767 Whirlpool Screw
25	WPL 310662
26	ELMNT-BAKE
26	Screw (2)
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	Plate, Cover
32	WP488729 Whirlpool Refrigerator Door Screw
32	WPL 3183005
33	Screw (3)
33	Latch Assembly
34	Screw
34	Safety Switch
35	Insulator, Switch
36	Screw
36	Shield, Latch
37	Latch, Handle
37	Screw
38	Knob, Latch Handle
38	Screw
39	Switch, Door
47	Grill, Bottom (Screw (3))
47	Grill, Bottom (Black)
52	Panel, Back
53	Screw (10-12 x .875)
53	WP112432 Whirlpool Nut Assembly
53	WPL 3147001
53	WP8203546 Whirlpool Terminal Block
54	WPL 310458
55	Angle, Support (2)
56	Cover, Rear
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	Rack, Straight
62	Rack, Oven Offset
65	Shield, Air
65	WPL 309080
66	Switch, Lock
67	Screw, 10A x 1/2 (2) (Black)
67	WPL 310433
67	WPL 3149328
67	WPL 3147864
