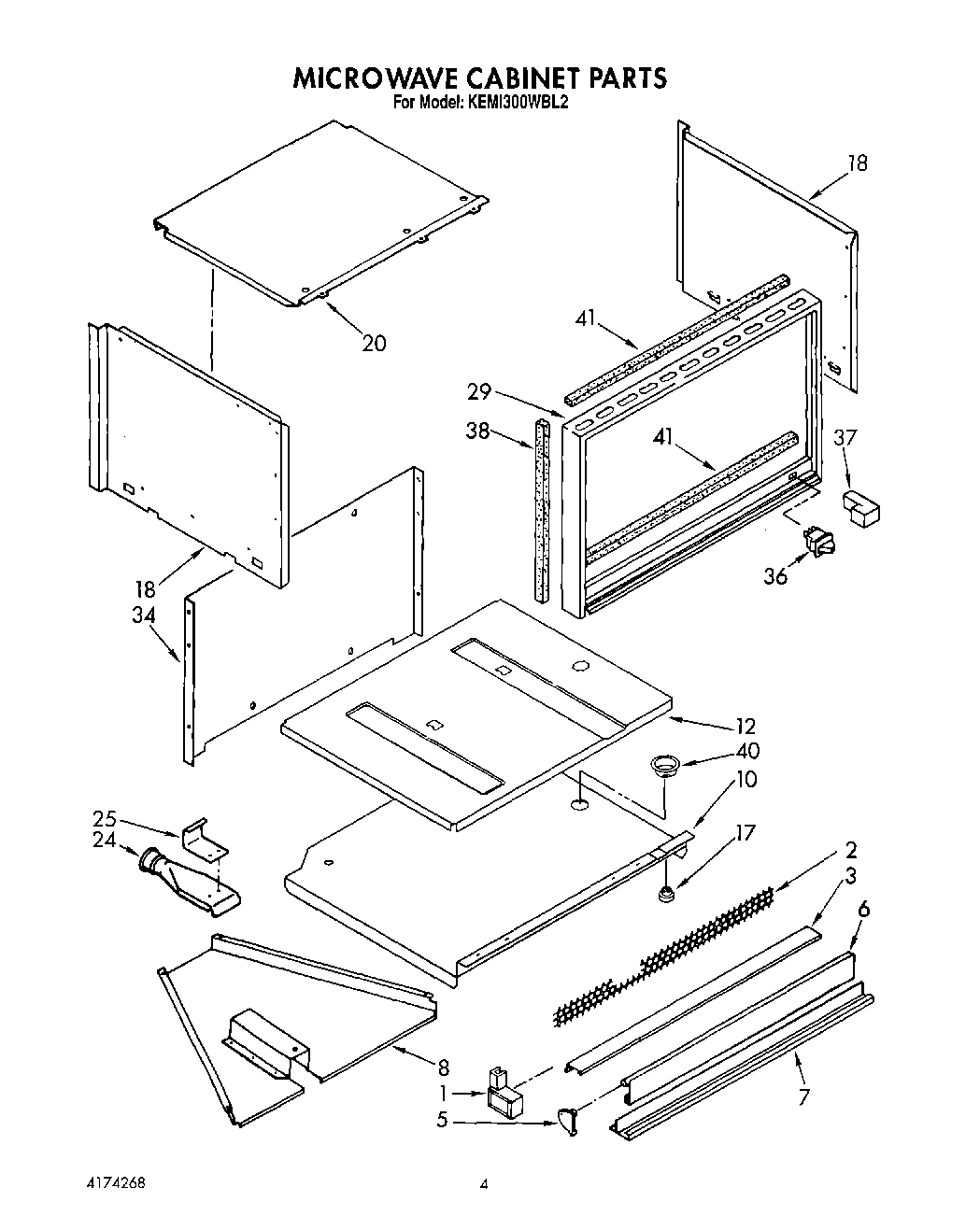

KEMI300WBL2 02 – MICROWAVE CABINET

Products

Position	Product
1	End Cap, L.H.
1	End Cap, R.H.
2	Trim, Oven Vent
3	WP965173 Whirlpool Dishwasher Screw
3	Trim, Top
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	Door, Vent
7	Screw, 10-32 x 1/2
7	Trim, Bottom
8	Box Air
10	Support Plate
12	Panel, Support
17	Snap Bushing
18	Side Panel, R.H.
18	Side Panel, L.H.
20	Panel, Side L.H. (Screw, 10A x 1/2 (2))
20	Panel, Top
20	302251 Whirlpool Dishwasher Screw
24	Vent Tube
25	Support, Vent Tube
25	Screw,
29	Frame
34	Cover, Rear
34	WP488729 Whirlpool Refrigerator Door Screw
36	WP4314961 Whirlpool Lite Switch
37	Seal, Foam (2)
38	WPL 3147595
40	Bushing, Snap
41	WPL 3147596
