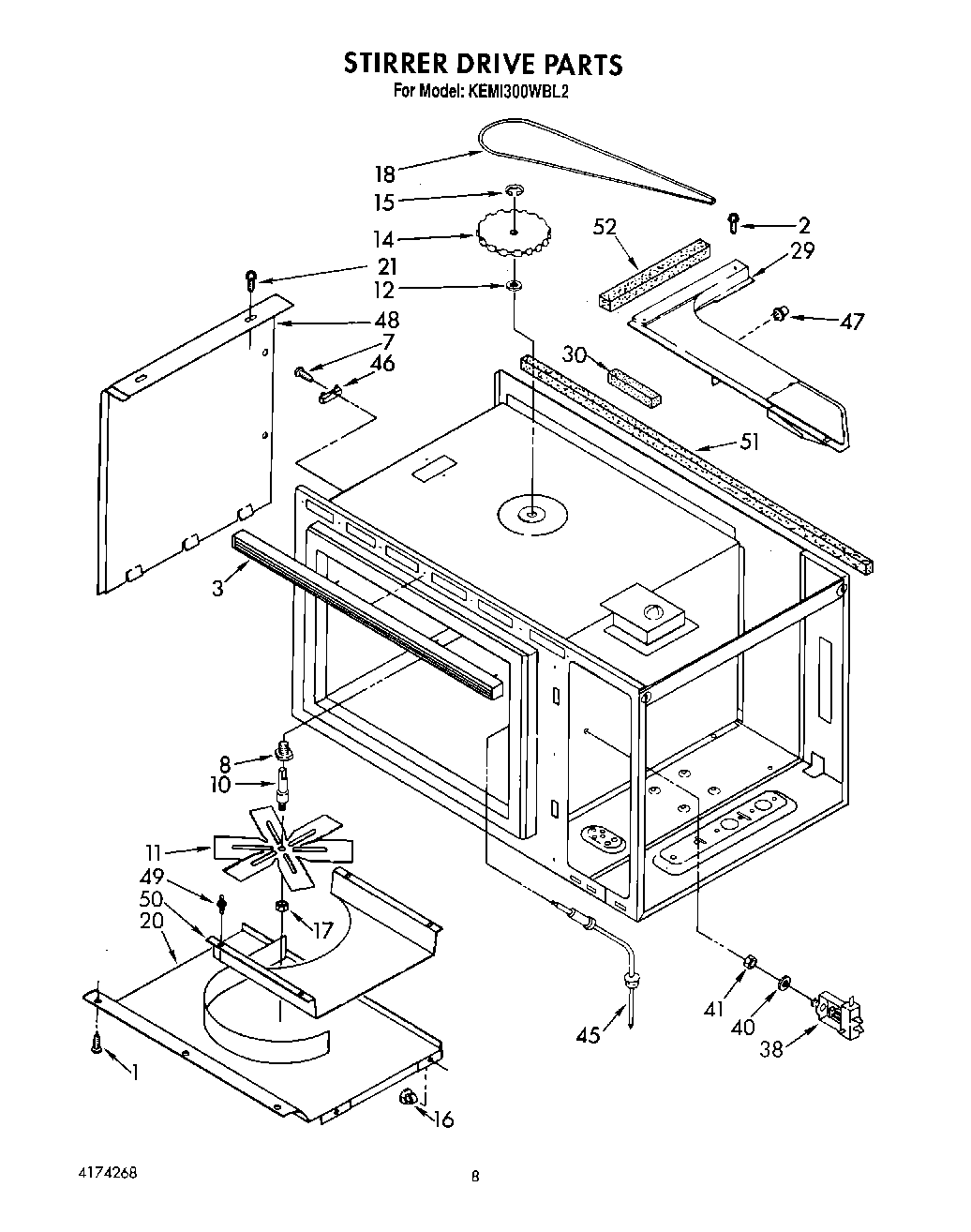

KEMI300WBL2 04 – STIRRER DRIVEadmin2025-04-26T10:25:38+00:00KEMI300WBL2 04 – STIRRER DRIVE
Products
| Position | Product |
|---|
| 3 | screw (3) |
| 3 | Grill, Air |
| 8 | Bushing, Stirrer |
| 10 | Shaft, Stirrer |
| 11 | Stirrer Blade |
| 12 | Washer, Nylon |
| 14 | Pulley, Stirrer Blade |
| 15 | ``E`` Ring |
| 16 | Fastener (4) |
| 17 | WP487939 Whirlpool Refrigerator Nut |
| 18 | WP313646 Whirlpool Microwave Drive Belt |
| 20 | screw, 8-32 x 1/2 (3) |
| 20 | Silicone Rubber Gasket |
| 21 | Fastener (2) |
| 29 | Baffle, Air Exhaust |
| 30 | Seal, Foam |
| 38 | Probe Jack |
| 40 | Washer, Internal Lock |
| 41 | Nut |
| 45 | (Alt.) |
| 46 | Fuse, Thermal |
| 46 | screw |
| 47 | Screw |
| 47 | Sensor, Gas |
| 48 | Cover, Side |
| 48 | WP488729 Whirlpool Refrigerator Door Screw |
| 49 | Support (4) |
| 50 | Plate, Tuning |
| 51 | Seal, Air Duct |
| 52 | Seal, Foam |
