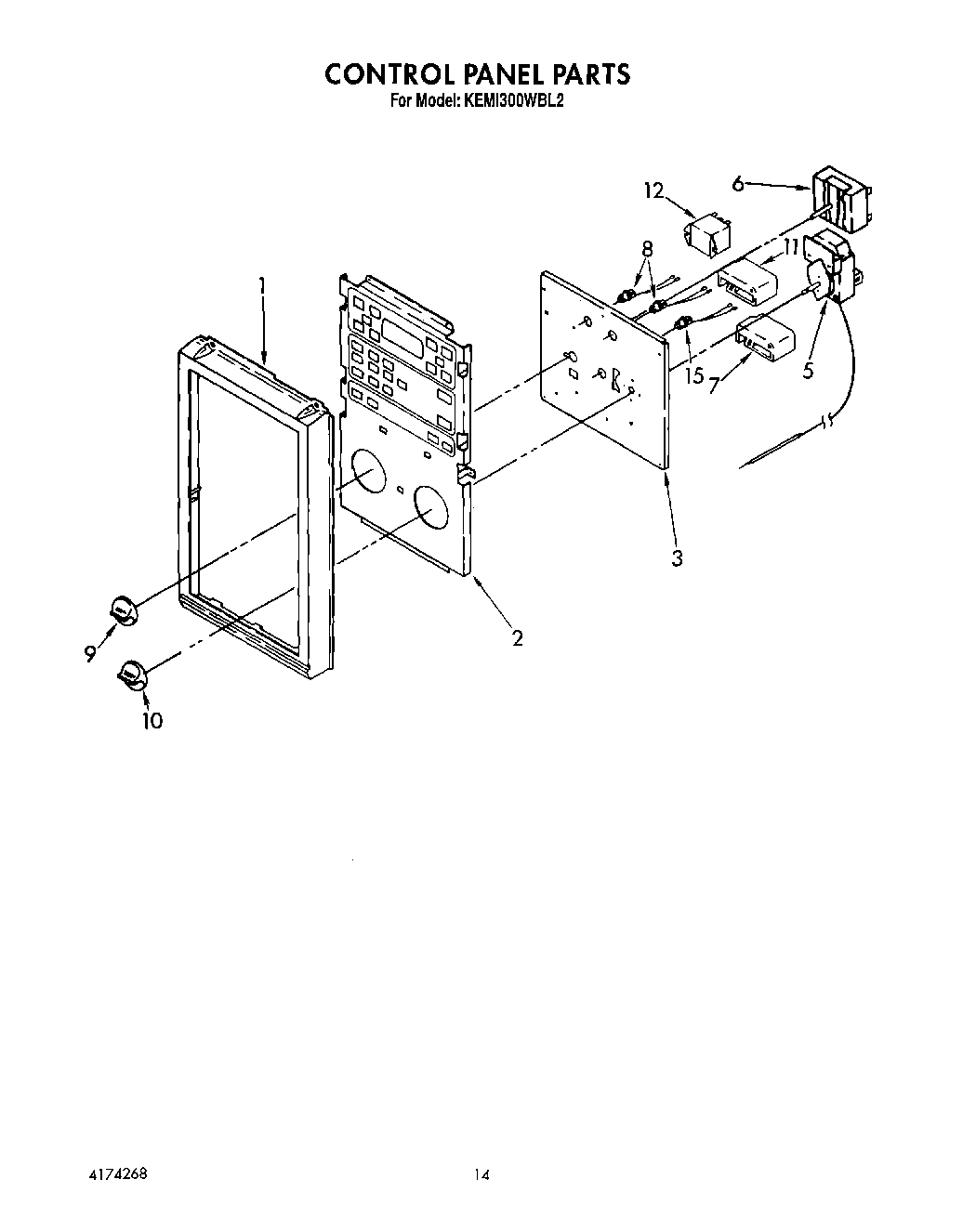

KEMI300WBL2 08 – CONTROL PANELadmin2025-04-26T10:27:41+00:00KEMI300WBL2 08 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Frame, Control Panel |
| 2 | Switch Membrane (Control Module) |
| 3 | Screw, 8-32 x 3/16 (2) |
| 3 | Bracket, Control (Mounting) |
| 5 | WP313808 Whirlpool Screw |
| 5 | Thermostat |
| 6 | Screw |
| 6 | Switch, Selector |
| 7 | WPL 314215 |
| 7 | Switch, Bake |
| 8 | Light, Indicator (4) |
| 9 | Knob, Control |
| 10 | WP693995 Whirlpool Screw |
| 10 | Knob, Control |
| 11 | Sw |
| 11 | WPL 312006 |
| 12 | Relay, Vent (24V, Clear) |
| 12 | Screw |
| 15 | Screw |
| 15 | Light, Indicator |
