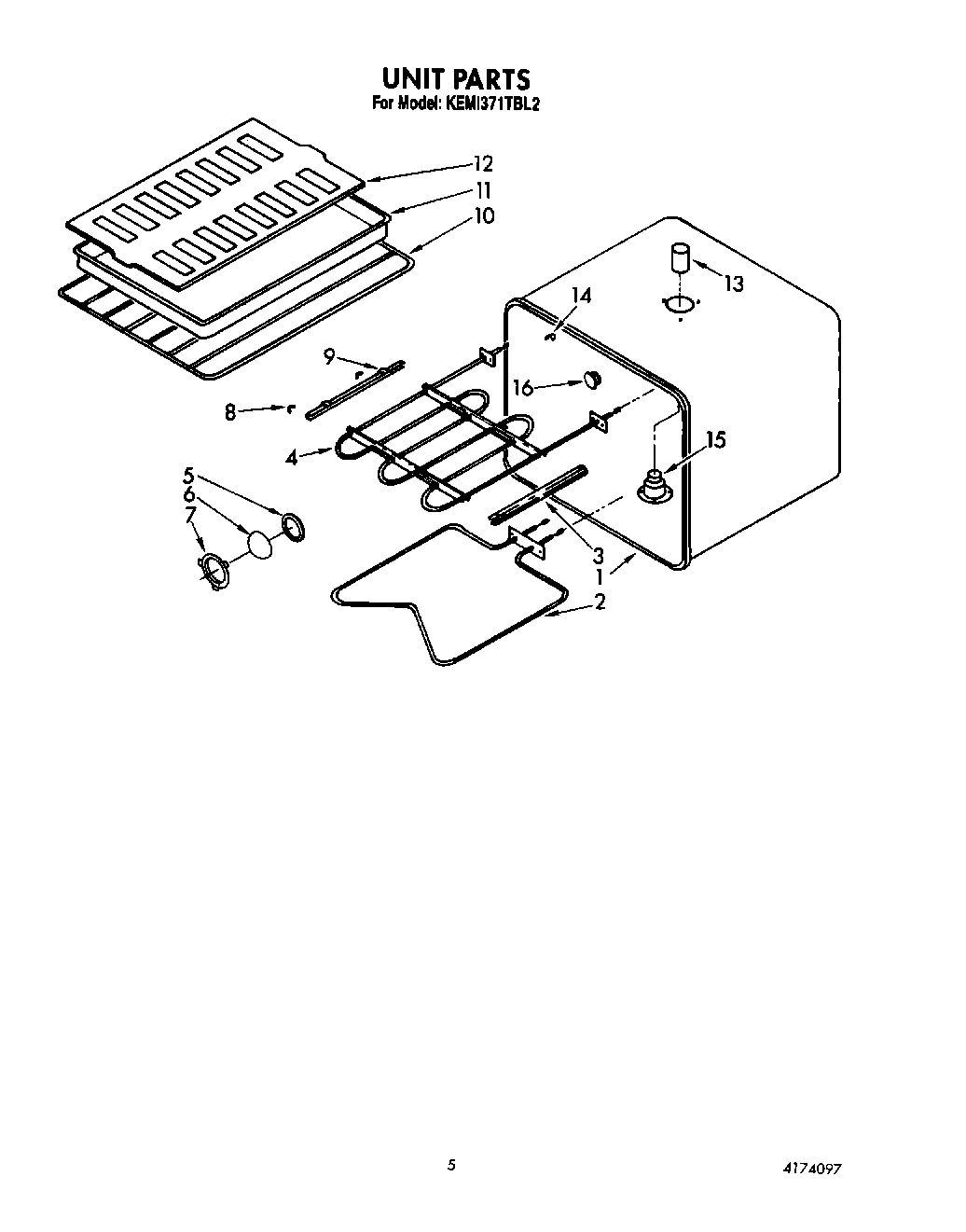

| 1 | Liner, Oven |
| 2 | WP3177420 Whirlpool Bake Element |
| 3 | Broiler Element Support-Right |
| 4 | Broiler Element |
| 4 | screw (4) |
| 5 | Light Lens Gasket |
| 6 | Light Lens |
| 7 | Screw |
| 7 | Light Lens Retainer |
| 8 | Clip, Thermostat Bulb |
| 9 | Broiler Element Support-Left |
| 10 | Rack, Oven |
| 11 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 13 | Vent Tube Extension |
| 14 | Cover, Cap Tube |
| 15 | Smoke Eliminator (Upper Oven) |
| 15 | Screw, (2) |
| 16 | Plug Button (3/8`` Hole) |
| 16 | Plug Button (5/8`` Hole) |
