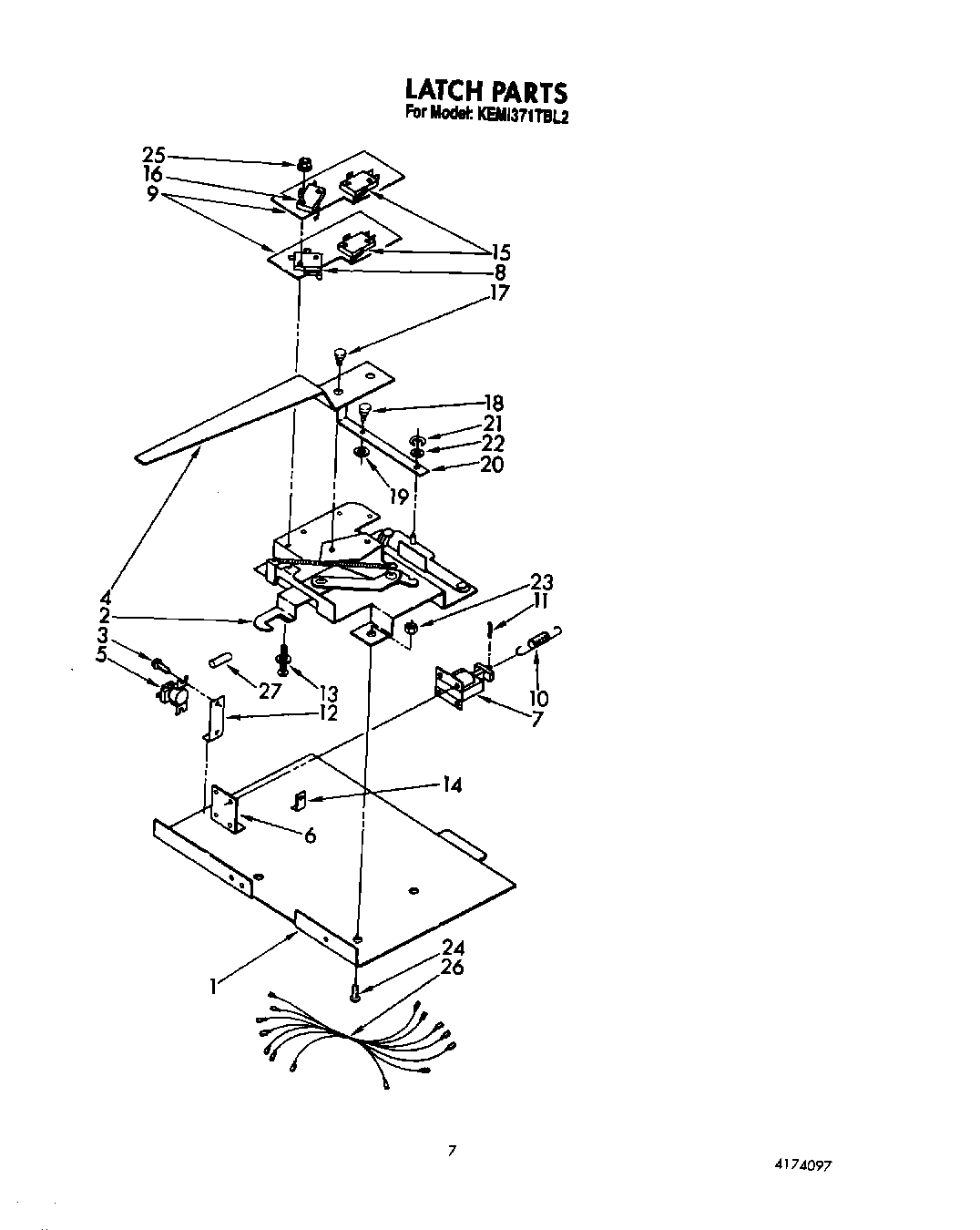

KEMI371TBL2 07 – LATCH
Written by
in
KEMI371TBL2 07 – LATCH
Products
Position
Product
1
Plate, Latch
2
Mechanism, Latch
3
Screw, No.10-24 X 3/8“ Hex TCS
4
lever, latch
5
Thermal Switch
6
Solenoid Plate
7
Screw (2)
7
Solenoid
8
Latch Switch With Roller
9
Insulator (2)
10
Solenoid Spring
11
Cotter Pin
12
Screw
12
Bracket, Mounting Safety Switch
13
Screw, No.4-40 X 1 1/4“ Hex
14
Bracket, Harness
15
Latch Switch (2)
16
Latch Switch
17
Shoulder Screw Latch Lever Upper Oven
18
Shoulder Screw, Actuator Arm
19
Spacer, Actuator Arm
20
Actuator Arm
21
Retaining Ring
22
Washer, Flat
23
Nut, No.10-24 Hex Kep
24
Screw, No.10-24 X 3/8“ PTHMS
25
Nut (2)
26
Screw, (2)
26
wireless harness
27
Sleeve, Bulb
←
