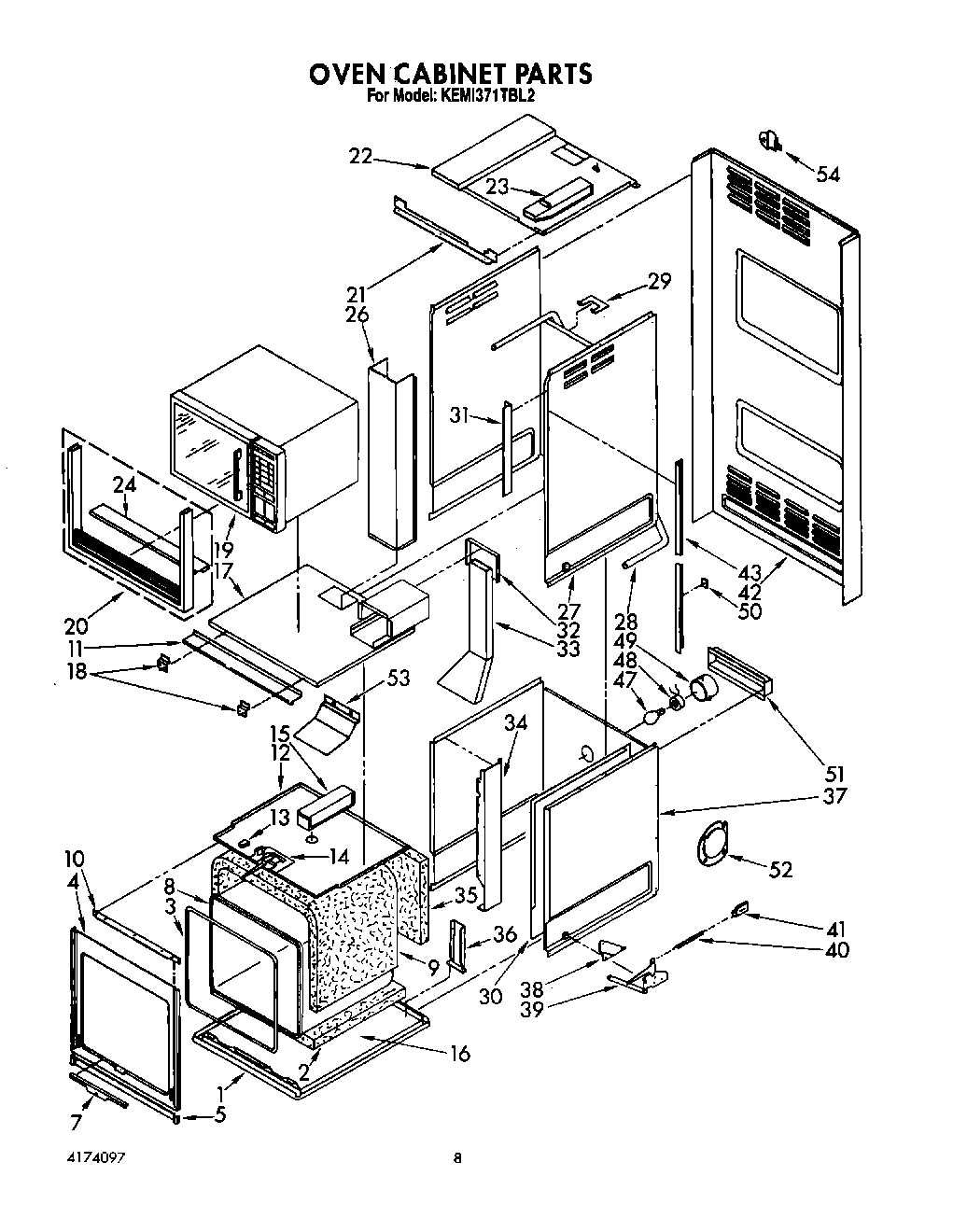

KEMI371TBL2 08 – OVEN CABINET

Products

Position	Product
1	Main Bottom
2	Insulation, Bottom
3	Door Gasket
4	front frame
5	Bottom Trim
7	Cover, Seal End
7	Vent, Lower Trim (Screw (2))
8	Oven Liner (See Parts Page)
9	Insulation, Top and Sides
10	Control Frame Support
11	Module Air Baffle
12	Compartment Top
13	Screw (2)
13	Knob, Latch Lever
14	Latch (See Parts Page)
15	Collector Box
16	Support, Oven
17	Module Support Plate
18	Module Brace
18	nut (3)
19	Microwave Module (Complete Unit Not Available, Order Component Parts)
20	Module, Trim
21	Control Frame Support
22	Exhaust Shield
23	Vent Box
24	Screw, No.10-24 X 3/8“ Hex TCS
24	Deflector
26	Cabinet Back Duct
27	Cabinet Side Upper
28	Vent Tube
29	Vent Tube, Retainer
30	WPL 4173017
30	WPL 4173016
31	Trim Bracket
32	Intake Box Back
33	Module Intake Duct
34	Air Du
34	Air Duct (Upper Oven) (Left)
35	Insulation, Rear
36	Rear Anchor
37	Cabinet Side, Lower
38	Cam Plate (Left Left)
38	Cam Plate (Right)
39	Hinge Assembly
40	Door Spring (Self Cleaning Oven)
41	Spring, Anchor
42	Cabinet Back
43	SCREW
43	Cabinet Support (Right)
43	Screw (2)
43	Cabinet Support (Left)
47	RANGE ONLY 40W 120V APPL BULB
48	Socket, Lamp
49	Light Shield
50	WPL 4159188
50	Spacer
51	WPL 4159451
51	Back Cover
52	Probe Cover
53	Air Scoop
54	7111P002-60 Whirlpool Clamp
54	Screw, (2)
