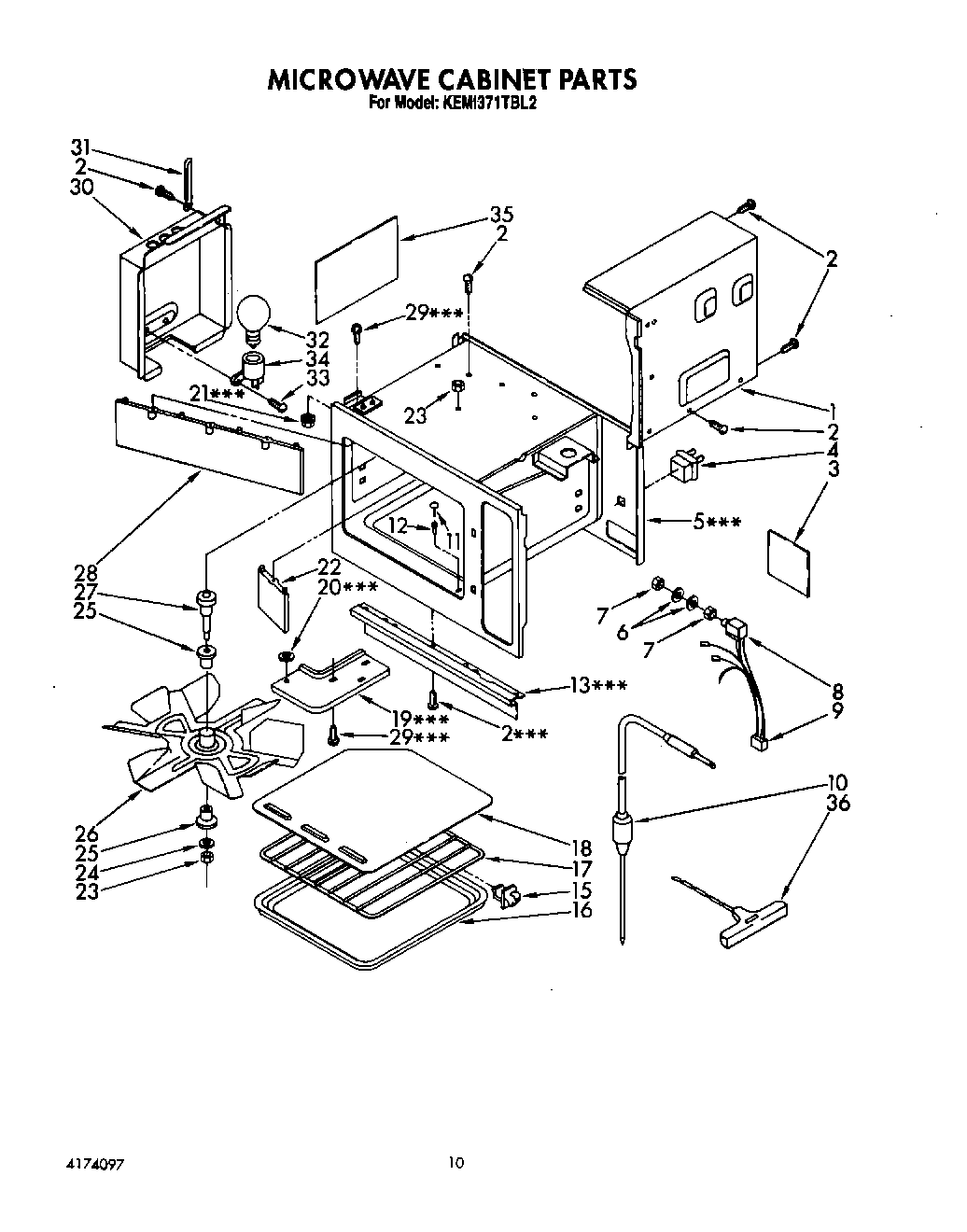

KEMI371TBL2 09 – MICROWAVE CABINETadmin2025-04-26T10:28:05+00:00KEMI371TBL2 09 – MICROWAVE CABINET
Products
| Position | Product |
|---|
| 1 | Cabinet |
| 2 | Screw, Truss Hd. Tapping, 4 X 8mm, Z1-2 |
| 3 | Caution Label And Nameplate |
| 4 | AC Plug |
| 5 | Oven Cavityxxx (Also Order Caution Label Illus. No. 3) |
| 6 | Special Washer Temperature Probe Jack |
| 7 | Special Nut, Temperature Probe Jack |
| 8 | Jack, Temperature Probe |
| 9 | 5-Wire Harness With Socket |
| 10 | Temperature Probe |
| 11 | Plastic Stopper, Glass tray |
| 12 | Plastic Stopper |
| 13 | Trim Piece Assy (Incls. Five Screws Illus No. 14), One Ferrite Rubber, One Steel Piece, And One Pl |
| 15 | Rack Holder |
| 16 | Glass Tray |
| 17 | Metal Tray |
| 18 | Stirrer Cover |
| 19 | Hinge, Lowerxxx |
| 20 | Washer, 5mm |
| 21 | Nut, Hex Hd. with Washer, 5mm |
| 22 | Air Guide, Stirrer, Right |
| 23 | Hex Nut, 8mm Z1-1 |
| 24 | Special Washer |
| 25 | Collar, Stirrer Shaft |
| 26 | Stirrer Fan Assy. |
| 27 | Stirrer Shaft |
| 28 | Air Guide, Left |
| 29 | Bolt, Hex Hd. with Phillips Slot, 5x14mm |
| 30 | Bracket, Lamp Cover |
| 31 | Wire Clip |
| 32 | 8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb |
| 33 | Screw, Pan Hd. Tapping, 3X8mm, Z1-2 |
| 34 | Lamp Socket |
| 35 | Cover, Light Opening |
| 36 | Probe Spacer |
