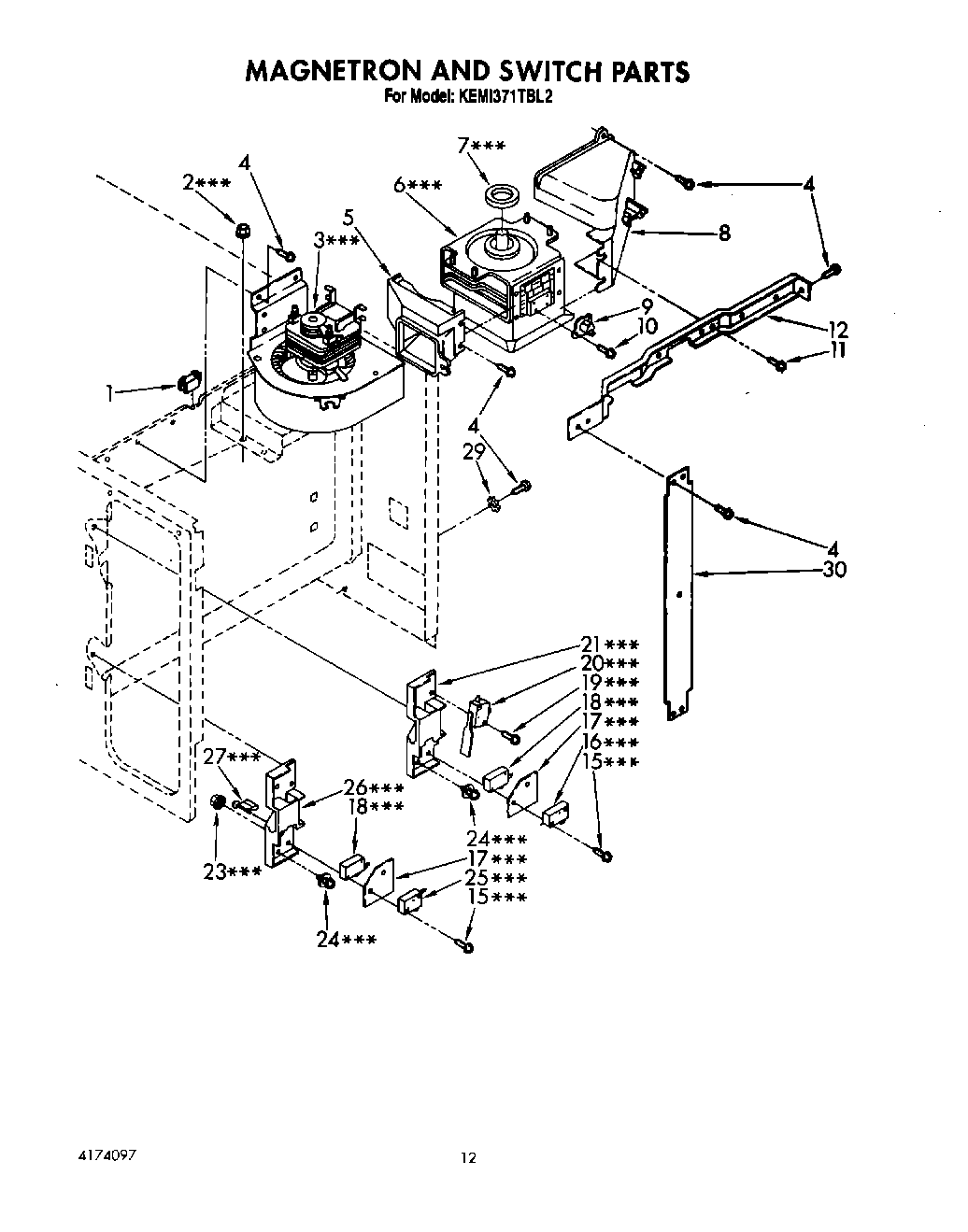

KEMI371TBL2 10 – MAGNETRON AND SWITCHadmin2025-04-26T10:26:27+00:00KEMI371TBL2 10 – MAGNETRON AND SWITCH
Products
| Position | Product |
|---|
| 1 | Insulator, Oven Cavity |
| 2 | Nut, Hex Hd. with Washer, 5mm |
| 3 | Blower Assembly |
| 4 | Screw, Truss Hd. Tapping, 4 X 8mm, Z1-2 |
| 5 | Duct, Intake |
| 6 | Magnetron, 2M-128 (B-RT) (Includes Illus. 7) |
| 7 | Magnetron Gasketxxx |
| 8 | Duct, Exhaust |
| 9 | Thermostat, Magnetron |
| 10 | Screw, Pan Hd. Tapping, 3 X 6mm, Z1-1 |
| 11 | Screw, Pan Hd. Tapping 4x12mm |
| 12 | Stay, Cavity And Magnetron |
| 15 | Screw, Pan Hd. Machine, 3x30mm Z1xxx |
| 16 | Micro Switch, Door Sensing xxx |
| 17 | Insulation Sheet, Micro Switchxxx |
| 18 | 4392027 Whirlpool Microwave Primary Switch |
| 19 | Screw, Pan Hd. Tapping, 3 X16mm, Z1-1xxx |
| 20 | Micro Switch, Interlock Monitorxxx |
| 21 | Lever Stopperxxx |
| 23 | Nut, Hex Hd. with Washer, 3mmxxx |
| 24 | Screw, Pan Hd. Machine w/Bolt Washer & Spring Washer 4x12mm xxx |
| 25 | Micro Switch, Cavity Lightxxx |
| 26 | Lever Stopperxxx |
| 27 | Latch Leverxxx |
| 29 | Washer, External Tooth, 4mm |
| 30 | Stay |
