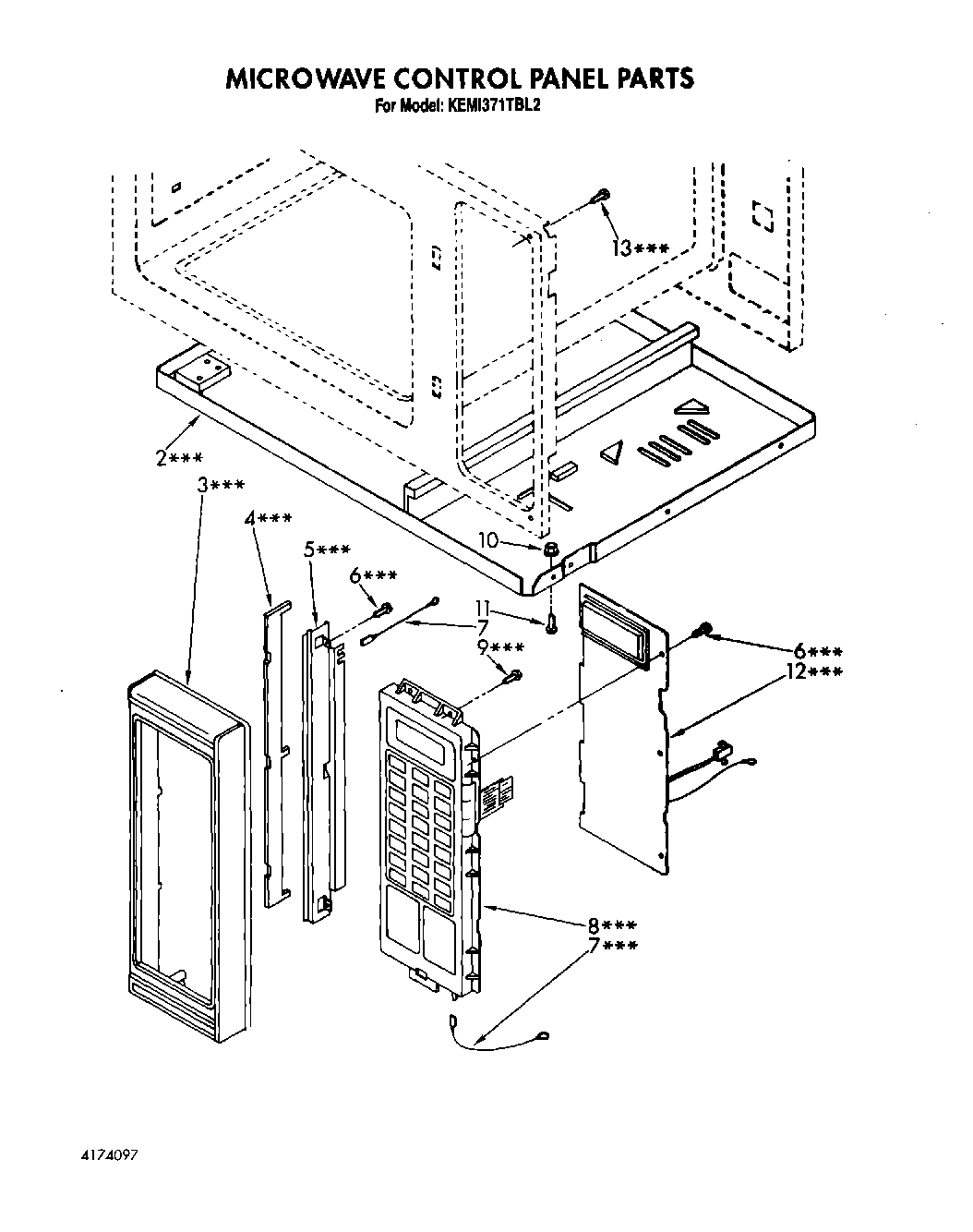

KEMI371TBL2 12 – MICROWAVE CONTROL PANEL

Products

PositionProduct
2Bottom Platexxx
3Control Framexxx
4Ferrite Rubberxxx Panel Back
5Metal Bracketxxx Panel Mounting (3)
6Screw, Pan Hd. Tapping, 3x12mm
7Ground Leadxxx
8Touch Key Boardxxx
9Screw, Truss Hd. Tapping, 4 X 12 mm Z1-1xxx
10Nut, Hex Hd. with Washer, 4mm
11Screw, Pan Hd. Diacut, 4 X 10mm Z1
12Power & Control Circuit Boardxxx
13Screw, Truss Hd. Tapping 4x10mm
