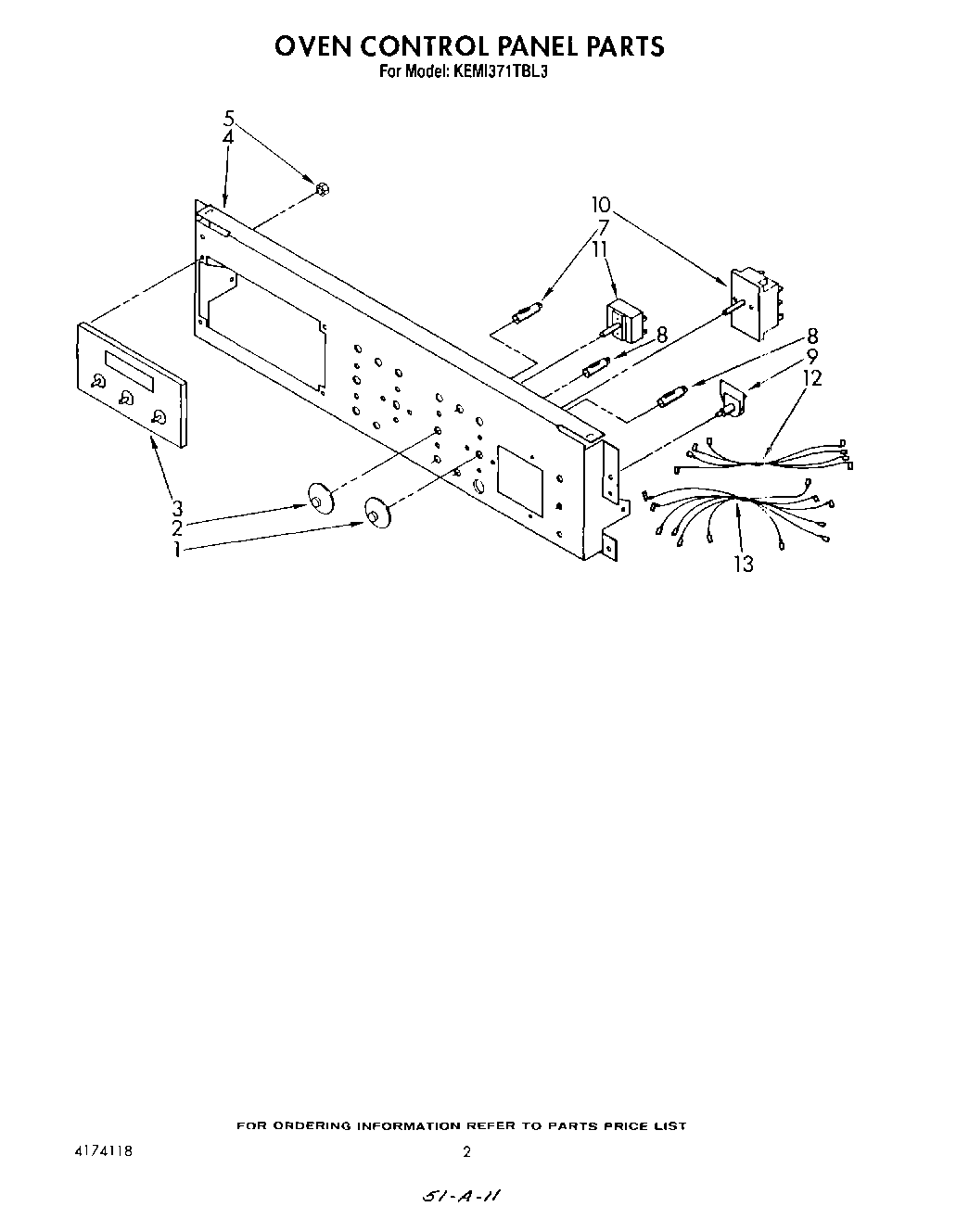

KEMI371TBL3 02 – OVEN CONTROL PANEL , LIT/OPTIONAL

Products

Position	Product
1	Thermostat Disc
2	Selector Disc
3	nut (3)
3	Clock
3	Screw (2)
4	Control Mounting Panel
5	Nut, Timer (4)
7	Indicator Light,
8	Indicator Light (2)
9	Oven Light Switch
10	Thermostat
11	Switch, Selector
11	WP486579 Whirlpool Air Conditioner Screw
12	Wire Harness, Hi-Temp
13	Wire Harness, Lo-Temp
