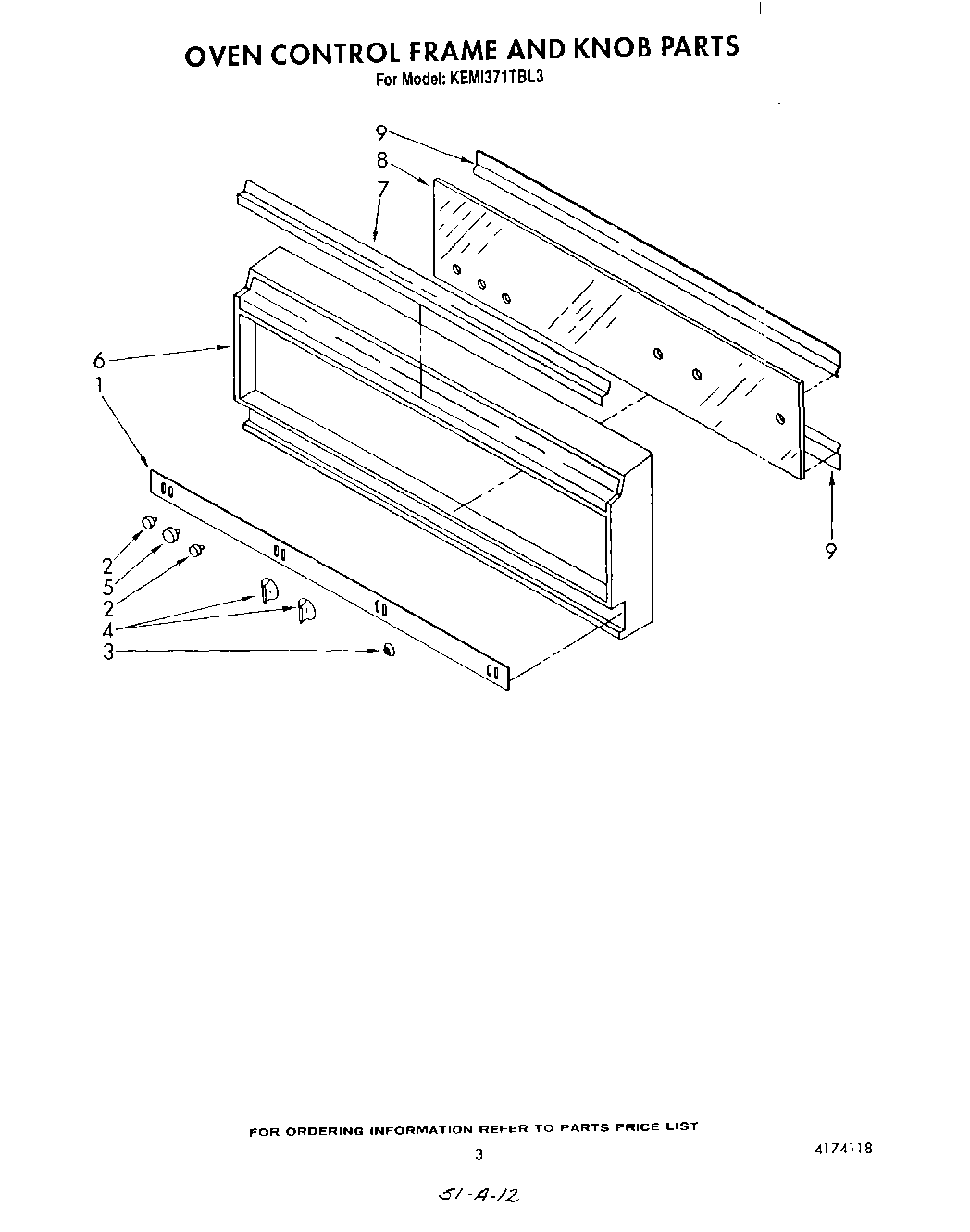

KEMI371TBL3 03 – OVEN CONTROL FRAME AND KNOB

KEMI371TBL3 03 – OVEN CONTROL FRAME AND KNOB

Written by

in

KEMI371TBL3 03 – OVEN CONTROL FRAME AND KNOB

Products

PositionProduct
1Vent Insert
1Nut (4)
1nut (3)
2Knob, Clock (2)
3Bezel, Oven Light Switch
4WP4168403 Whirlpool Knob
5Knob, Clock
6Control Frame
7Screw (5)
7Insert, Top (Black)
8Screw (6)
8Glass, Control Panel
9Retainer
