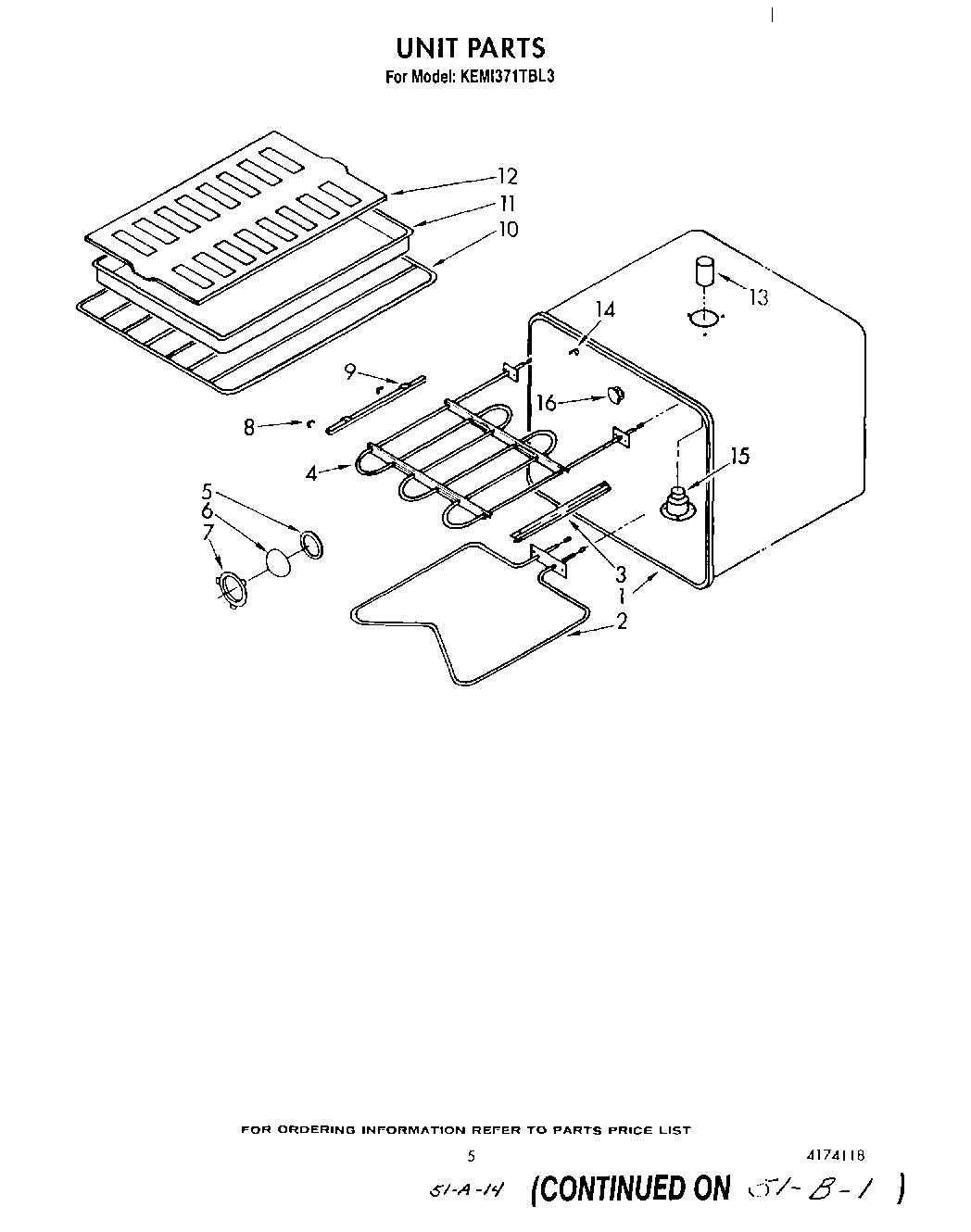

KEMI371TBL3 05 – UNIT

Products

Position	Product
1	liner, oven
2	WP3177420 Whirlpool Bake Element
3	Broiler Element Support-Right
4	Broiler Element
4	screw (4)
5	Light Lens Gasket
6	Light Lens
7	Screw
7	Light Lens Retainer
8	Clip, Thermostat Bulb
9	Broiler Element Support-Left
10	Rack, Oven
11	4396923 Whirlpool Broil Pan Set Gray Porcelain
13	Vent Tube Extension
14	Cover, Cap Tube
15	Smoke Eliminator (Upper Oven)
15	Screw, (2)
16	Plug Button (3/8“ Hole)
16	Plug Button (5/8“ Hole)
