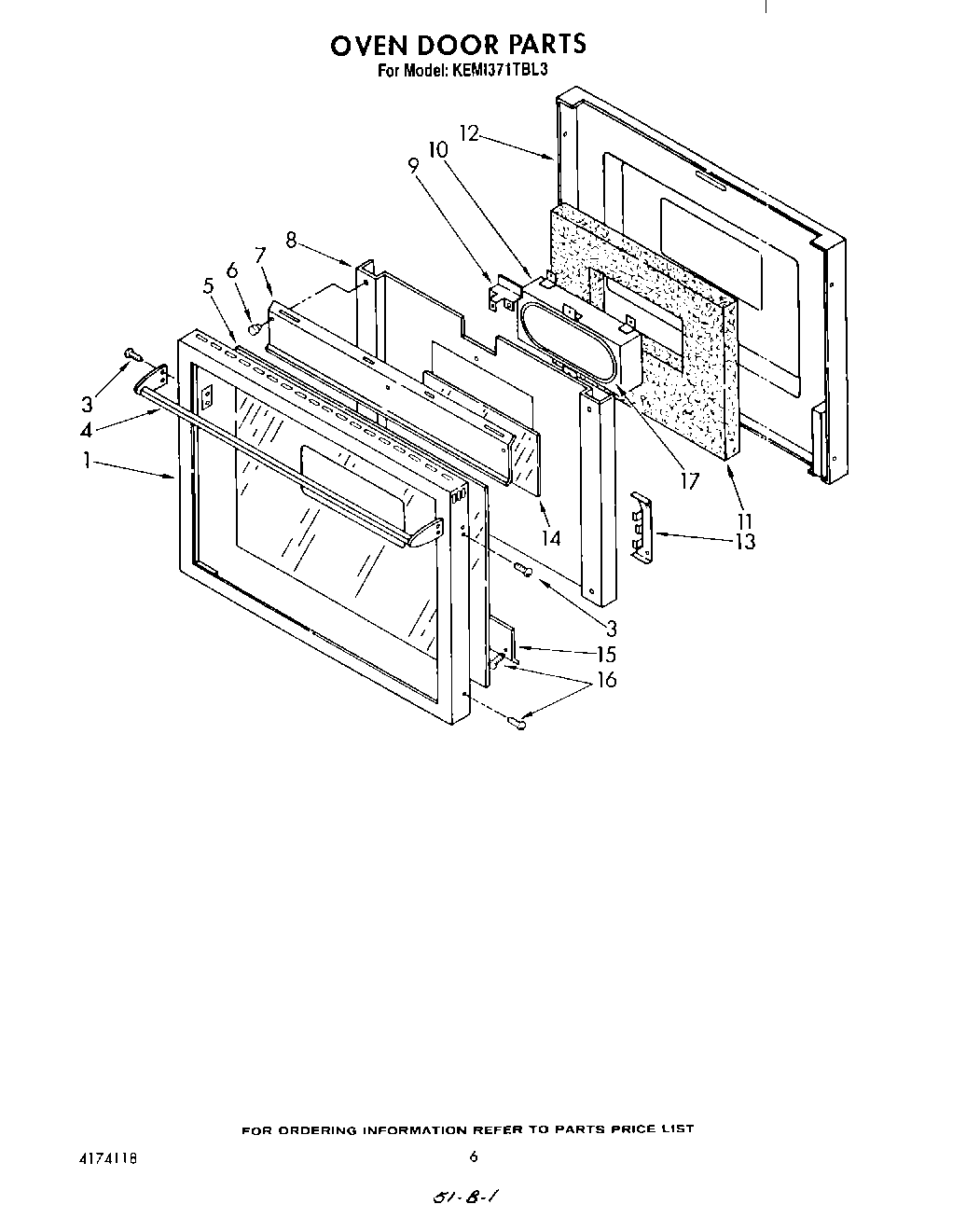

KEMI371TBL3 06 – OVEN DOOR

Products

PositionProduct
1Door Frame
3Insert
3Screw, 8-32 X 3/8“ PFHMS
4Door Handle
5Door Glass
6Rubber Bumper
7Air Baffle
8Insulation Retainer
9Bracket, Lock
10Window Package
11Insulation
12door liner
13Bracket, Glass Mtg.
13Screw, (2)
14Glass, Reflective
15Air Baffle, Bottom
16Vent, Lower Trim (Screw (2))
17Seal, Window
