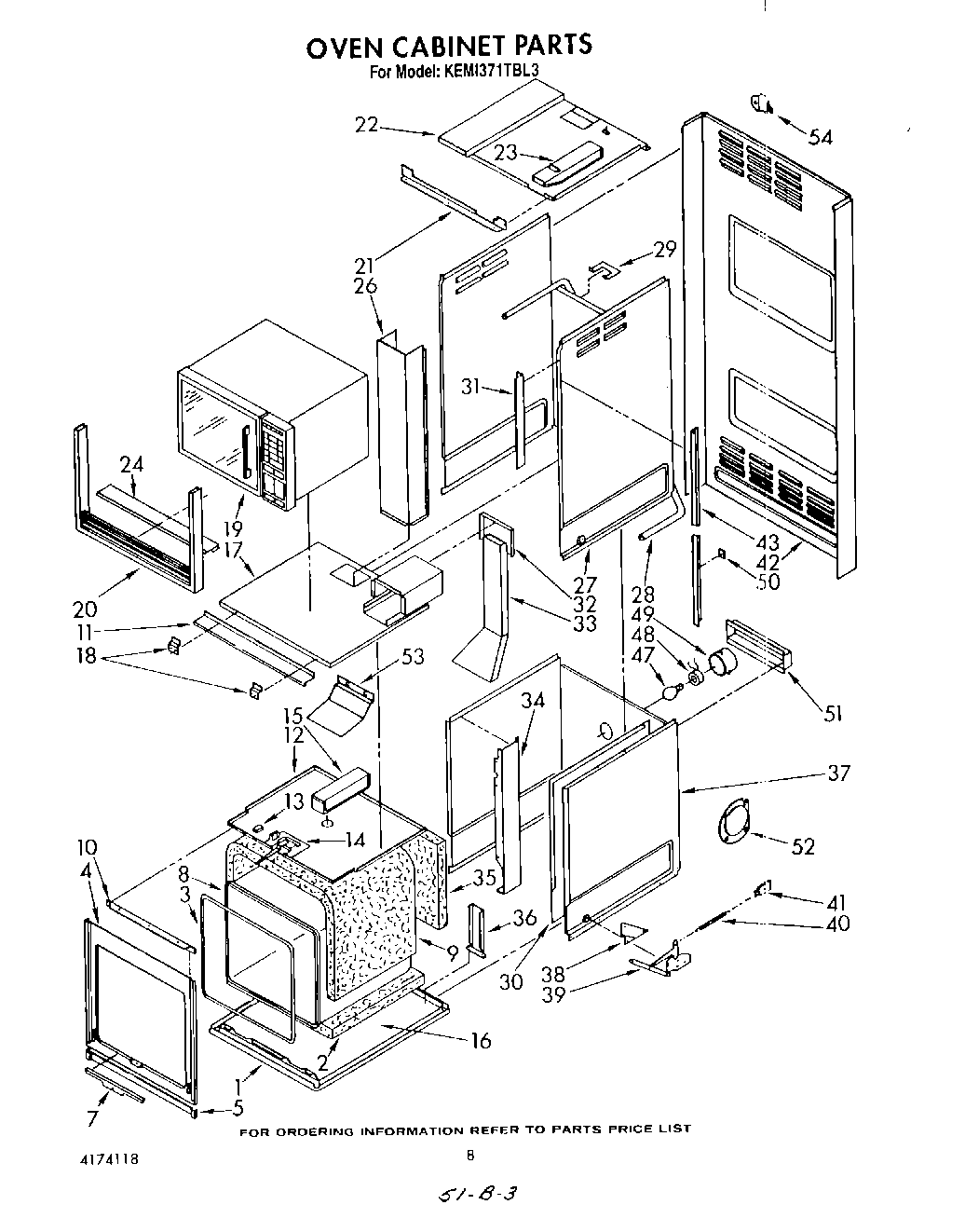

KEMI371TBL3 08 – OVEN CABINETadmin2025-04-26T10:25:47+00:00KEMI371TBL3 08 – OVEN CABINET
Products
| Position | Product |
|---|
| 1 | Main Bottom |
| 2 | Insulation, Bottom |
| 3 | Door Gasket |
| 4 | front frame |
| 5 | Bottom Trim |
| 7 | Cover, Seal End |
| 7 | Vent, Lower Trim (Screw (2)) |
| 8 | Oven Liner (See Page 5) |
| 9 | Insulation, Top and Sides |
| 10 | Control Frame Support |
| 11 | Module Air Baffle |
| 12 | Compartment Top |
| 13 | Screw (2) |
| 13 | Knob, Latch Lever |
| 14 | Latch (See Page 7) |
| 15 | Collector Box |
| 16 | Support, Oven |
| 17 | Module Support Plate |
| 18 | nut (3) |
| 18 | Module Brace |
| 19 | Microwave Module (Complete Unit Not Available, Order Component Parts) |
| 20 | Module, Trim |
| 21 | Control Frame Support |
| 22 | Exhaust Shield |
| 23 | Vent Box |
| 24 | Deflector |
| 24 | Screw, No.10-24 X 3/8`` Hex TCS |
| 26 | Cabinet Back Duct |
| 27 | Cabinet Side Upper |
| 28 | Vent Tube |
| 29 | Vent Tube, Retainer |
| 30 | WPL 4173016 |
| 30 | WPL 4173017 |
| 31 | Trim Bracket |
| 32 | Intake Box Back |
| 33 | Module Intake Duct |
| 34 | Air Duct (Upper Oven) (Left) |
| 34 | Air Du |
| 35 | Insulation, Rear |
| 36 | Rear Anchor |
| 37 | Cabinet Side, Lower |
| 38 | Cam Plate (Right) |
| 38 | Cam Plate (Left Left) |
| 39 | Hinge Assembly |
| 40 | Door Spring (Self Cleaning Oven) |
| 41 | Spring, Anchor |
| 42 | Cabinet Back |
| 43 | Cabinet Support (Right) |
| 43 | Screw (2) |
| 43 | SCREW |
| 43 | Cabinet Support (Left) |
| 47 | RANGE ONLY 40W 120V APPL BULB |
| 48 | Socket, Lamp |
| 49 | Light Shield |
| 50 | WPL 4159188 |
| 50 | Spacer |
| 51 | WPL 4159451 |
| 51 | Back Cover |
| 52 | Probe Cover |
| 53 | Air Scoop |
| 54 | Screw, (2) |
| 54 | 7111P002-60 Whirlpool Clamp |
