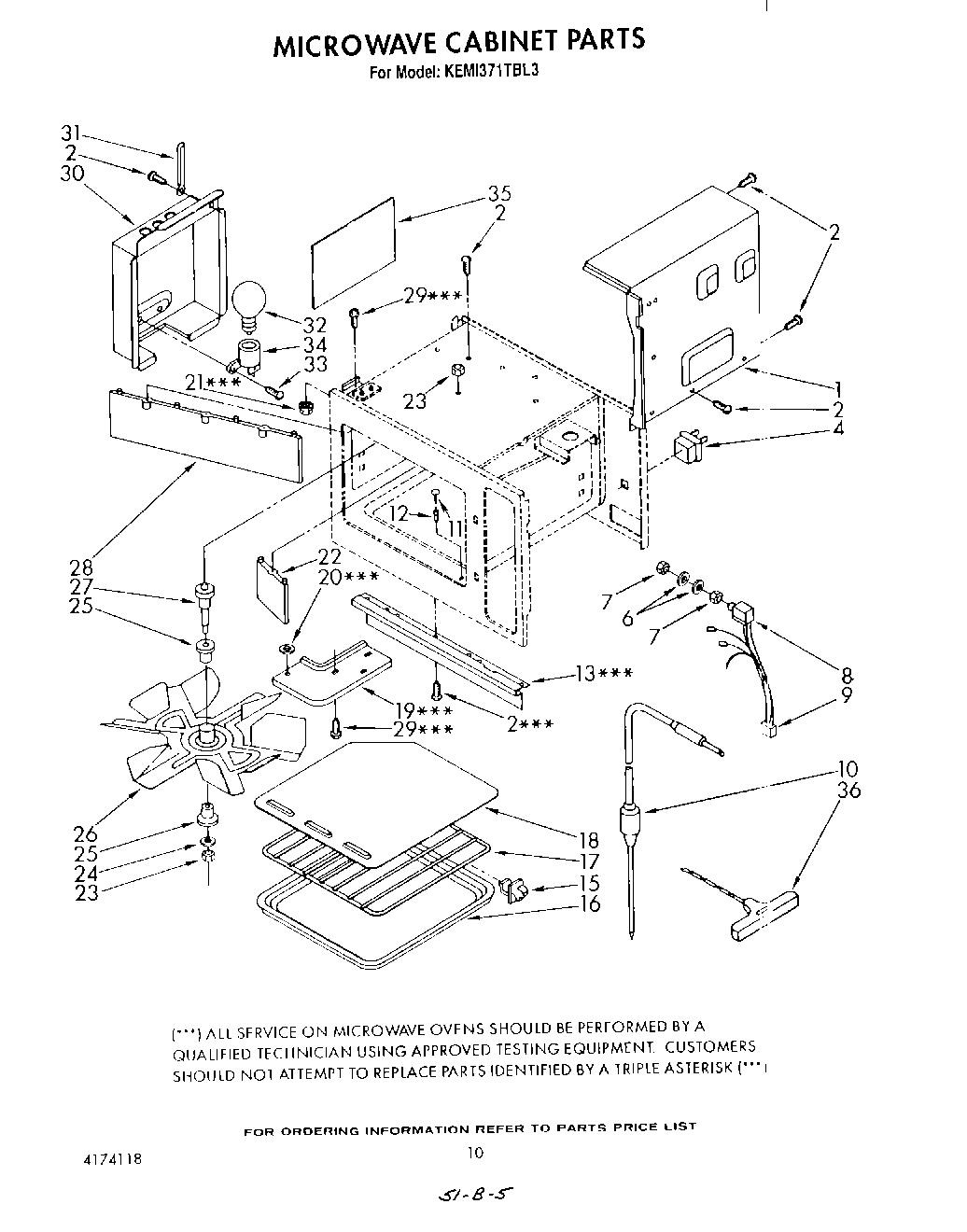

KEMI371TBL3 09 – MICROWAVE CABINET

Products

PositionProduct
1Cabinet
2Screw, Truss Hd. Tapping, 4 X 8mm, Z1-2
4AC Plug
6Special Washer Temperature Probe Jack
7Special Nut, Temperature Probe Jack
8Jack, Temperature Probe
95-Wire Harness With Socket
10Temperature Probe
11Plastic Stopper, Glass tray
12Plastic Stopper
13Trim Piece Assy (Incls. Five Screws Illus No. 14), One Ferrite Rubber, One Steel Piece, And One Pl
15Rack Holder
16Glass Tray
17Metal Tray
18Stirrer Cover
19Hinge, Lowerxxx
20Washer, 5mm
21Nut, Hex Hd. with Washer, 5mm
22Air Guide, Stirrer, Right
23Hex Nut, 8mm Z1-1
24Special Washer
25Collar, Stirrer Shaft
26Stirrer Fan Assy.
27Stirrer Shaft
28Air Guide, Left
29Bolt, Hex Hd. with Phillips Slot, 5x14mm
30Bracket, Lamp Cover
31Wire Clip
328206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
33Screw, Pan Hd. Tapping, 3X8mm, Z1-2
34Lamp Socket
35Cover, Light Opening
36Probe Spacer
