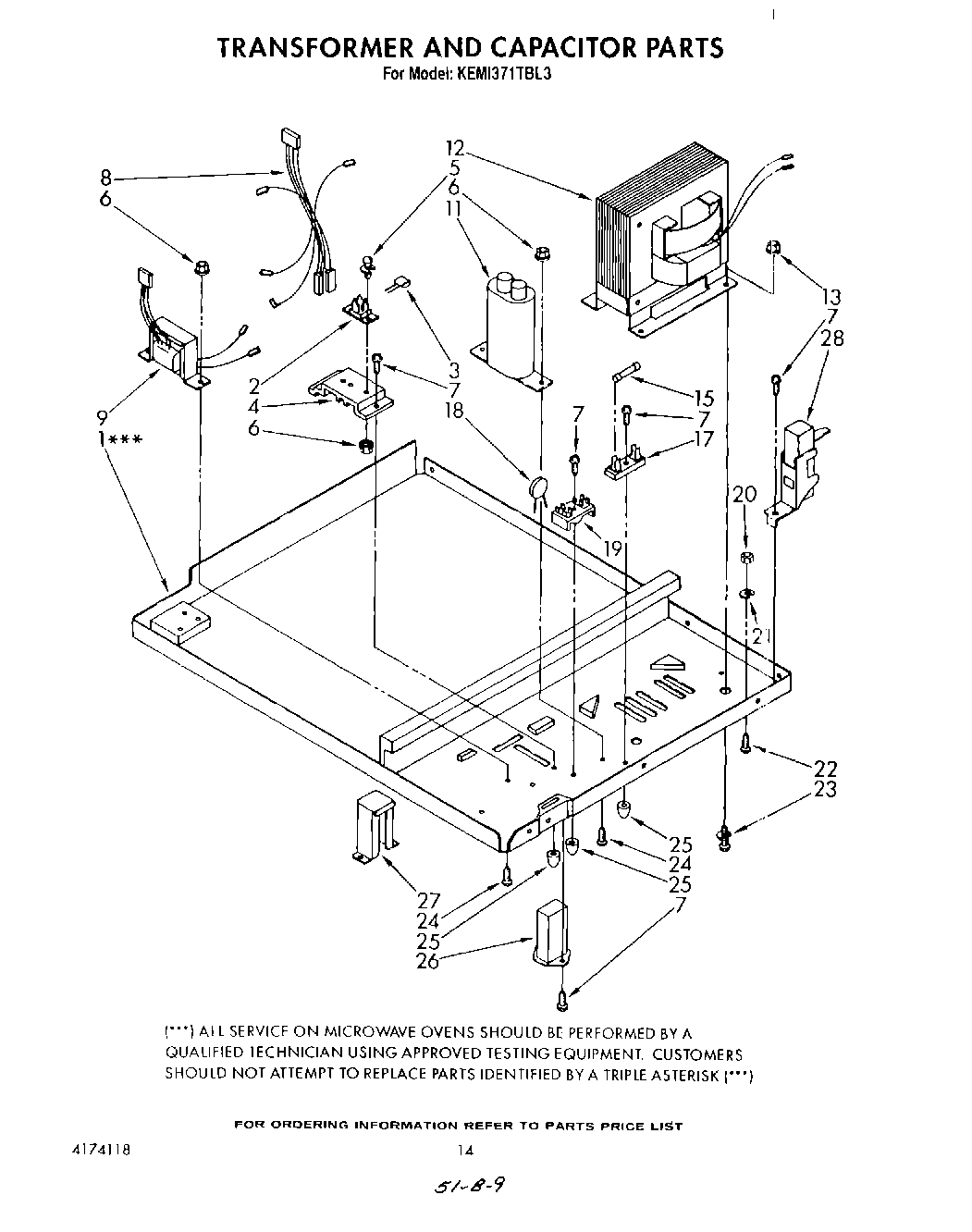

KEMI371TBL3 11 – TRANSFORMER AND CAPACITOR

Products

Position	Product
1	Bottom Platexxx
2	Triac
3	Polyester Film Capacitor, 0.1 mfd +/- 20 Percent, 50V
4	Heat Sink
5	Screw, Pan Hd. Machine w/Bolt Washer & Spring Washer 4x12mm xxx
6	Nut, Hex Hd. with Washer, 4mm
7	Screw, Bind Hd. Tapping, 4x12mm
8	Connector, Triac
9	Step-down Transformer, Control Circuit, P6T-3825
11	High Voltage Capacitor With Resistor And Rectifier, 0.85 MFD
12	High Voltage Transformer, 120 V Input, H6T-3825
13	Nut, Hex Hd. With Washer, 6mm
15	Fuse, 15A
17	Fuse Holder
18	Varistor
19	Terminal Board
20	Hex Nut, 4mm, Brass, N1-1
21	Spring Washer, 4mm, Phosphated
22	Screw, Pan Hd. Machine, 4 X 10mm Brass, N1
23	Bolt, Hex Hd. Machine with Spring Washer and Bolt Washer 6x16mm
24	Screw, Pan Hd. Diacut, 4 X 10mm Z1
25	Cap, Black Vinyl, Screw
26	Back-up Battery
27	Battery Holder
28	Surge Absorber
