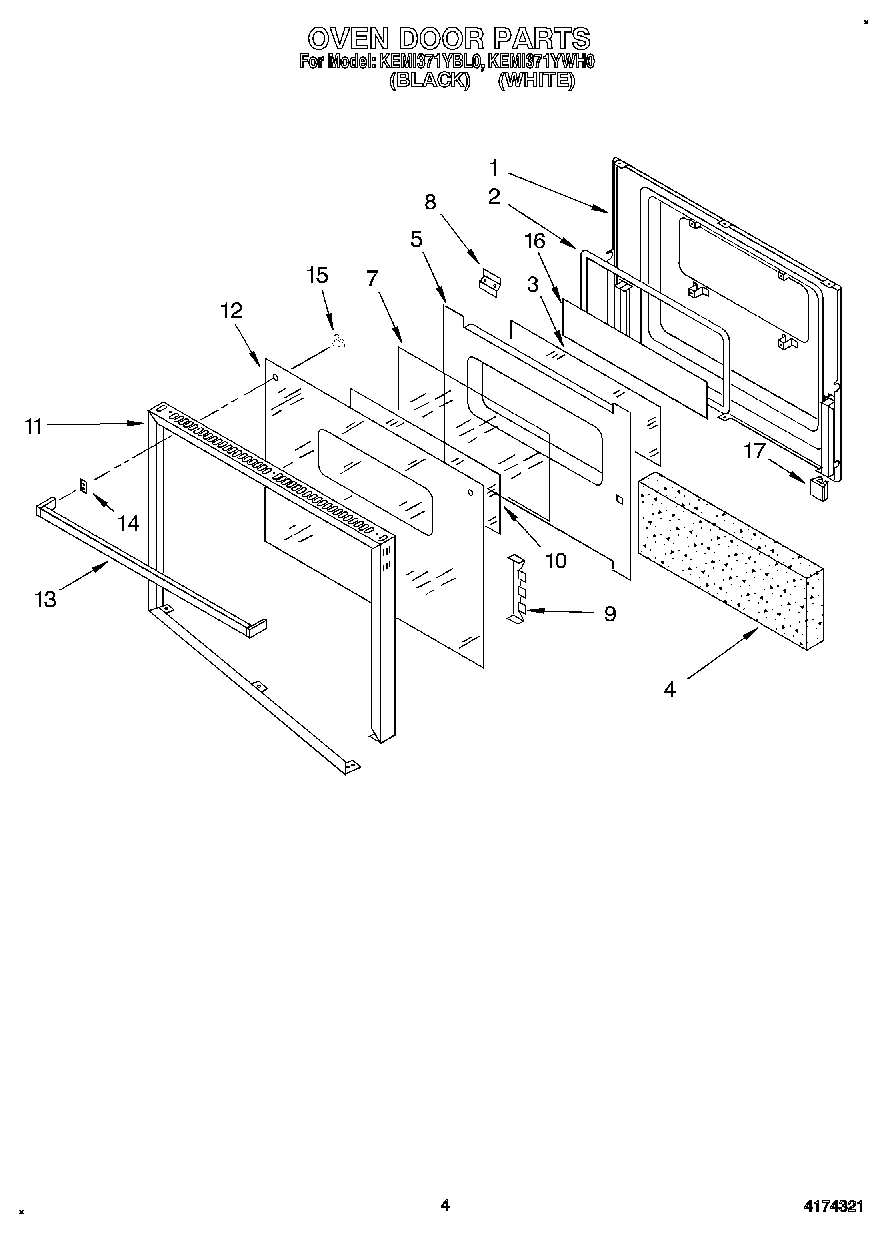

KEMI371YWH0 03 – OVEN DOOR

KEMI371YWH0 03 – OVEN DOOR

Written by

in

KEMI371YWH0 03 – OVEN DOOR

Products

PositionProduct
1Liner, Door
1Screw, Black (2)
2Seal, Window
3Glass, Clear
4Insulation, Door
5Screw
5Retainer, Insulation
7Glass, Reflective
8Latch, Strike
9Retainer, Glass
9Screw
10Glass, Clear
11Frame, Door
12Glass, Door (White Model)
12Glass, Door (Black Model)
13Handle, Door (White Model)
13Handle, Door (Black Model)
14Spacer, Door Handle
15Bushing, Door Handle
16Foil-Adhesive Backed
17Bumper, Door Glass
