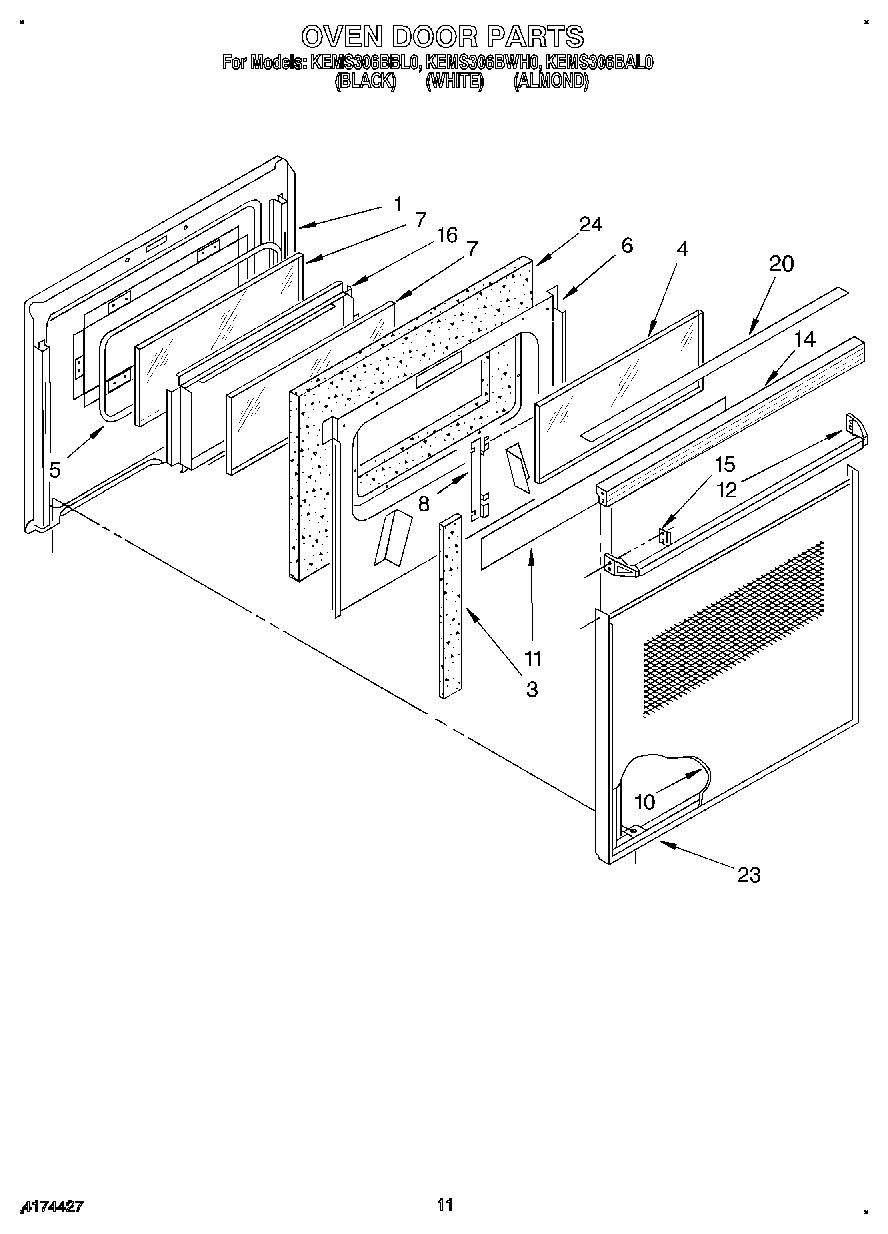

KEMS306BAL0 08 – OVEN DOOR

Products

Position	Product
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
6	Screw
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (White)
10	Glass, Panel (White Model)
10	Glass, Panel (Black Model)
11	Screw
11	Foil, Door
12	Back Splash (Screw (4) 10AB x 1/2“)
12	Handle, Door (Screw (4))
12	Handle, Door (White)
12	Handle, Door (Almond)
12	Handle, Door (Black)
14	Top, Door (White Model)
14	Top, Door (Black Model)
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
20	Cap, Top (Black Model)
20	Cap, Top Door (Almond Model)
20	Cap, Top (White Model)
23	Frame, Panel (Black Model)
23	Frame, Door (Almond Model)
23	Frame, Door (White Model)
24	Insulation, Door
