KEMS306BAL3 01 – OVEN, LITERATURE

Products

Position	Product
	WPL LIT3188186
	WPL LIT3181679
	WPL LIT3188188
	WPL LIT3186660
	Label, Defrost Guide
	Label, Auto Cook Guide
	Cookbook Microwave

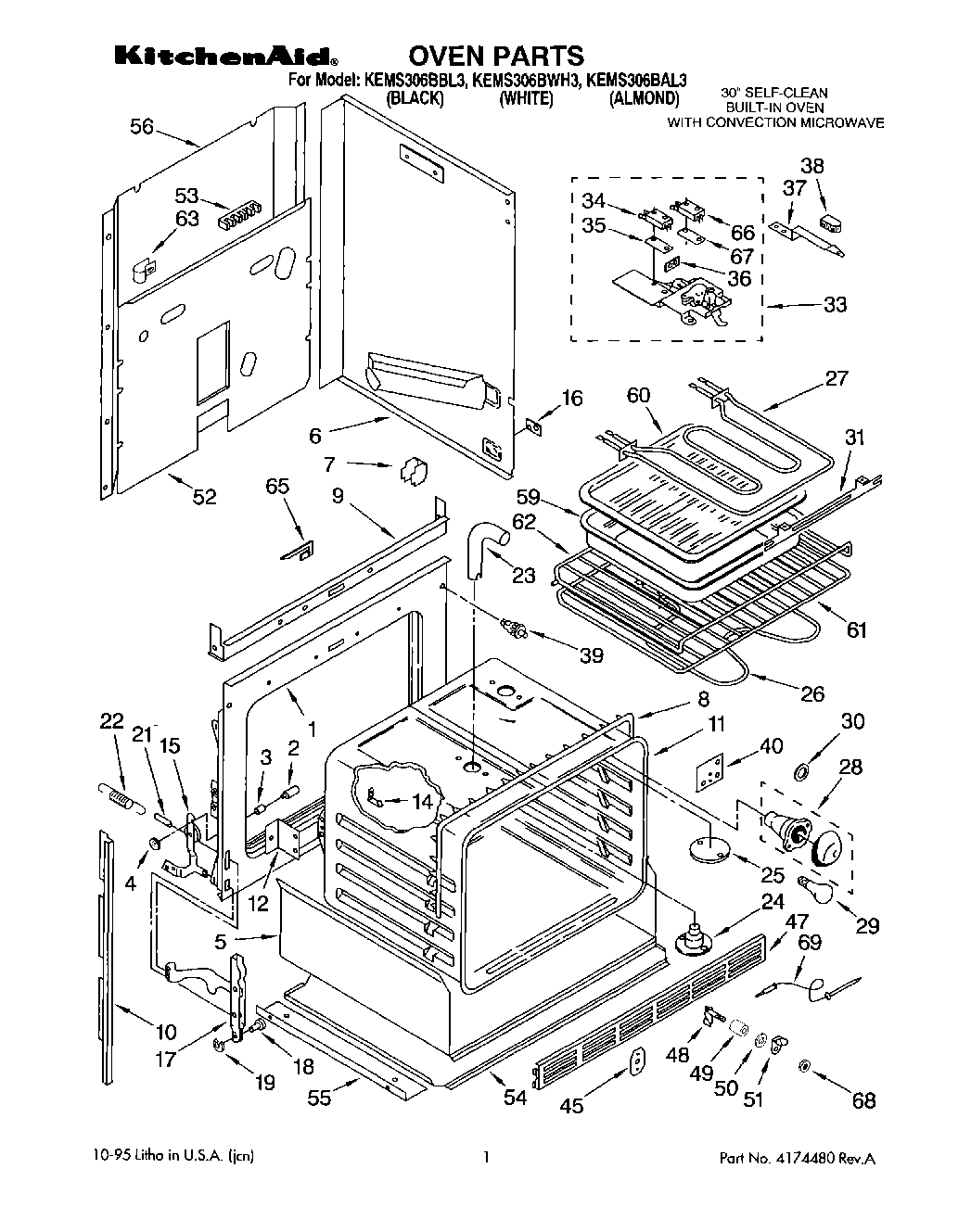

1	Frame Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper L.H.
6	Side Wrapper R.H.
7	Screw
7	Support, Side Wrapper (4)
8	WPL 3185197
9	Baffle, Top Insulation
10	Side Trim (White Model, RH)
10	Side Trim (White Model, LH)
10	Side Trim (Almond Model, RH)
10	Side Trim (Almond Model, LH)
10	Side Trim (Black Model, LH)
10	Side Trim (Black Model, RH)
11	SCREW
11	Oven 30“
12	Bracket, Oven Mounting (2)
14	98005642 Whirlpool Clip
15	Hinge, Ear (Left Side)
15	Hinge, Ear (Right Side)
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Tube, Vent
24	Tube, Vent
24	WP90767 Whirlpool Screw
25	WPL 310662
26	WP661416 Whirlpool Bake Element
27	Unit, Broil
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	WP3184533 Whirlpool Range Light Lens Gasket
31	WP488729 Whirlpool Refrigerator Door Screw
31	Bracket, Element
33	Latch Assembly
33	Screw (3)
34	Safety Switch
35	Insulator, Switch
36	Shield, Latch
36	Screw
37	Screw
37	Latch, Handle
38	Knob, Latch Handle
38	Screw
39	Switch, Door
39	Screw
40	Screw (2)
40	WPL 3183005
45	Plate, Cover
47	Bottom Grill (Almond)
47	Grill, Bottom (Black)
47	Grill, Bottom (Screw (3))
47	Grill, Bottom (White)
48	Receptacle, Probe
49	Spacer – Tubing
50	Gasket, Meat Probe
51	Jack Cover
52	Panel, Back
53	Screw (10-12 x .875)
53	WP8203546 Whirlpool Terminal Block
53	WP112432 Whirlpool Nut Assembly
54	Cover, Bottom
55	Angle, Support (2)
56	Cover, Rear
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	Rack, Straight
62	Rack, Offset
63	WP308605 Whirlpool Refrigerator Clamp
65	WPL 309080
65	Shield, Air
66	Switch, Lock
67	Screw, 10A x 1/2 (2) (Black)
67	WPL 3147864
68	Lock-Nut, Cvr.Jack
69	Probe
69	WPL 310435
69	WPL 3149328
69	WPL 310433
