KEMS306BAL3 08 – OVEN DOOR – Aparts

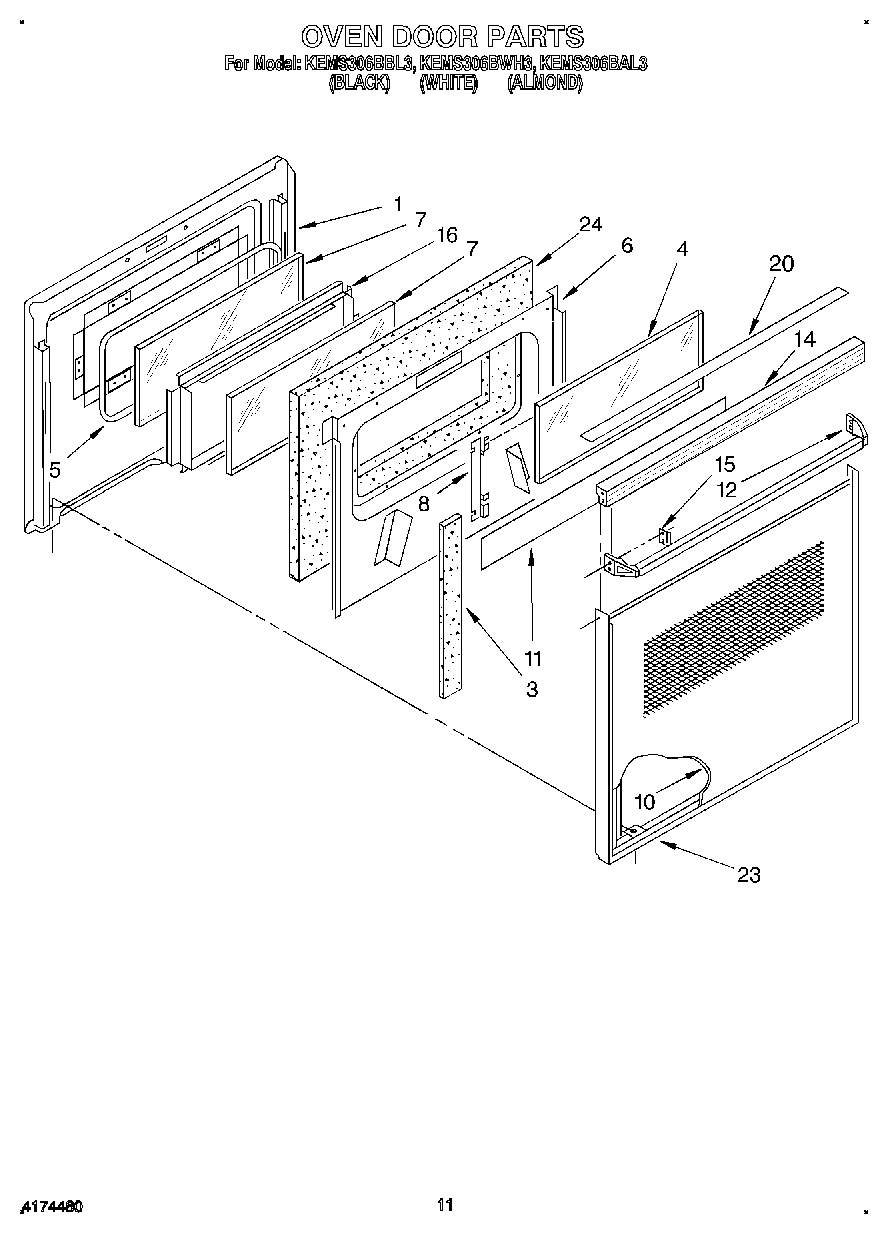

KEMS306BAL3 08 – OVEN DOOR

Products

Position	Product
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Screw
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (Almond Model)
10	Glass, Panel (Black Model)
10	Glass, Panel (White Model)
11	Foil, Door
11	Screw
12	Handle, Door (Screw (4))
12	Handle, Door (Black)
12	Handle, Door (White)
12	Handle, Door (Almond)
12	Back Splash (Screw (4) 10AB x 1/2``)
14	Top, Door (Black Model)
14	Top, Door (White Model)
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
20	Cap, Top (Black Model)
20	Cap, Top (White Model)
20	Cap, Top Door (Almond Model)
23	Frame, Door (Almond Model)
23	Frame, Panel (Black Model)
23	Frame, Door (White Model)
24	Insulation, Door
