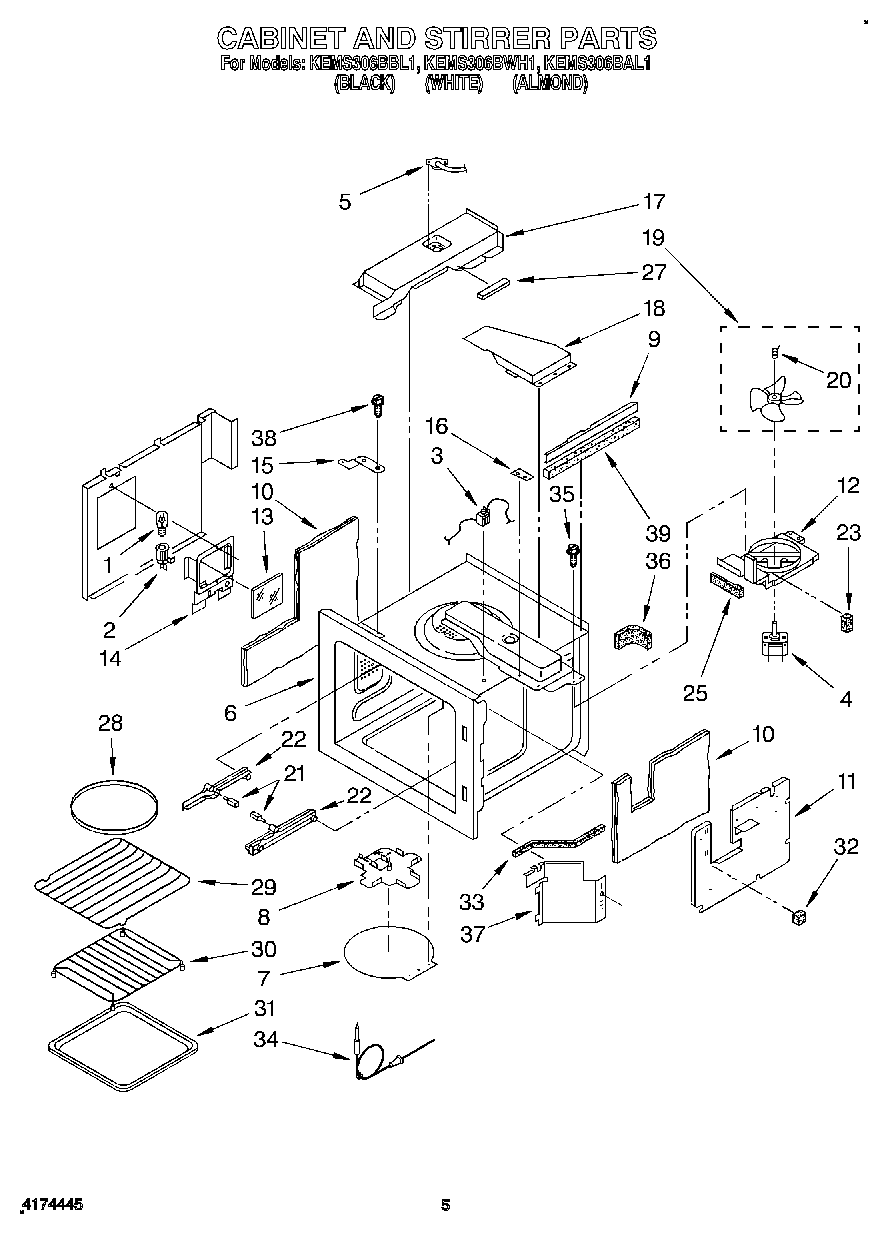

KEMS306BBL1 03 – CABINET AND STIRRER, OPTIONAL

Products

Position	Product
1	WPA3073101 Whirlpool Light Bulb
2	Light Socket
3	Jack Assy.
4	Motor, Fan Cooling
5	Sensor Assy.
6	Cavity, Oven (Not a Serviceable Part)
7	Stirrer Cover Assy.
8	Stirrer Fan Assy.
9	Support, Chassis
10	Insulation (L.H.)
10	Insulation (R.H.)
11	Panel, Oven Cavity (L.H.)
11	Panel, Oven Cavity (R.H.)
12	Stirrer Fan Duct
13	Glass, Oven Light
14	Mounting Plate, Oven Light
15	Upper Hinge
16	Divider Plate
17	Exhaust Duct Assy.
18	Cooling Duct Magnetron
19	Fan Blade Assy.
20	Clip, Retainer
21	Plastic Screw
22	Rack Support (L.H.)
22	Rack Support (R.H.)
23	Block, Foam
25	Block, Foam
27	Block, Foam
28	Cookie Sheet
29	Rack (Upper)
30	Rack (Lower)
31	Tray, Cooking
32	Block, Foam
33	Block, Foam
34	Temperature Probe Assy.
35	Screw
36	Block, Foam
37	Magnetron Duct Assembly
38	Screw (2)
39	Golden Harvest (Uncut)
39	Golden Harvest
39	Toast
39	WPL 72112
39	WPL 786020
39	Paint, Spray (13 Oz.) (Platinum)
39	Enamal, Toast (1 Qt. Uncut)
39	WPL 786032
39	Platinum (Uncut)
39	72113 Whirlpool Touch-Up Paint
39	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
39	350930 Whirlpool White Spray Paint
39	261900 Whirlpool Microwave Spray
39	350956 Whirlpool Spray Assembly
39	72017 Whirlpool Appliance Touch-Up Paint White
39	799344 Whirlpool Refrigerator Paint
39	WP72107 Whirlpool Touchup
39	Leveler (Thinner)
39	Almond (Uncut)
39	WPL 4312992
39	350942 Whirlpool Spray Paint
39	WPL 799832
39	Wire (14 Ga. 150 c Brown)
39	1
39	Wire (14 Ga. 150 c Green)
39	Wire (14 Ga. 150 c Orange)
39	Wire (12 Ga. 150 c Black)
39	18 Ga. 80~c Rating (Red)
39	Wire (14 Ga. 200 c Brown)
39	WPL 591014
39	Wire (14 Ga. 150 c Blue)
39	WP261869 Whirlpool Microwave Paint
39	Wire, 25` Roll (Black 14 Ga.)
39	Wire, 25` Roll (Red 14 Ga.)
39	Wire, 25“ Roll (White 14 GA.)
39	285006 Whirlpool Spray
39	72032 Whirlpool Touch Up Paint Black
39	WP482338 Whirlpool Refrigerator Adhesive
39	242831 Whirlpool Oven Wire
39	Wire (14 Ga. 150 c Yellow)
39	WPL 350806
