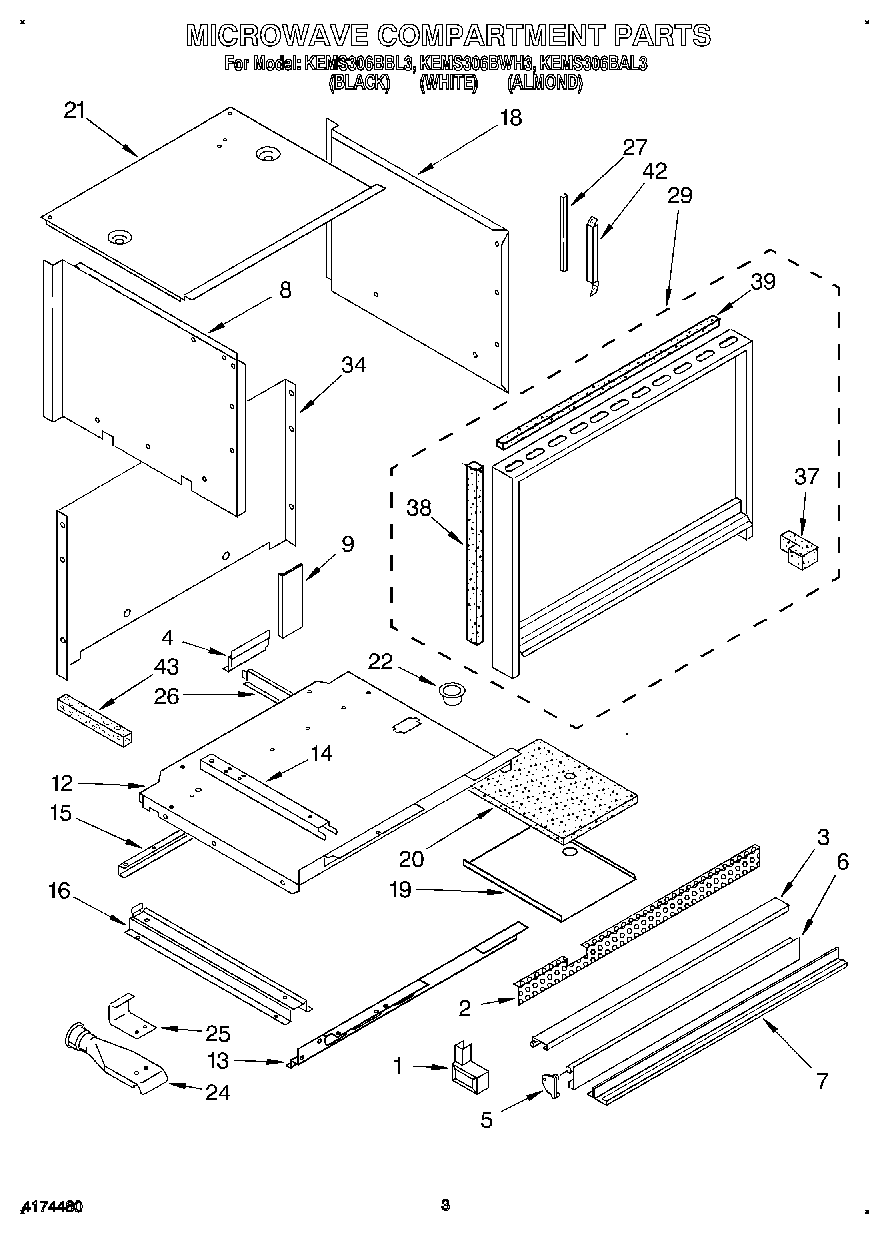

KEMS306BBL3 02 – MICROWAVE COMPARTMENT

Products

Position	Product
1	End Cap (RH, Black Model)
1	End Cap (LH, Almond Model)
1	End Cap (LH, Black Model)
1	End Cap (RH, Almond Model)
1	End Cap (LH, White Model)
1	End Cap (Washer)
1	End Cap (RH, White Model)
2	Trim, Oven Vent
3	WP965173 Whirlpool Dishwasher Screw
3	Trim, Top (White Model)
3	Trim, Top (Almond Model)
3	Trim, Top
4	Baffle, Bottom
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	Trim, Vent Door (Brite Aluminum, L.H.)
6	Door, Vent (White Model)
6	Door, Vent (Almond Model)
6	Door, Vent (Black Model)
7	Screw, 10-32 x 1/2
7	Trim, Bottom
8	Side Panel L.H.
9	Baffle, Rear
9	Seal, foam
12	Panel, Support
13	Support, Brace
14	Screw (4)
14	Rail, Microwave
15	Brace, Bottom
16	Rail, Chassis
18	Side Panel, R.H.
19	Retainer, Insulation
20	Insulation
21	Panel, Top
21	Panel, Side L.H. (Screw, 10A x 1/2 (2))
21	Screw
22	Bushing, Snap
24	Vent Tube
25	Support, Vent Tube
25	Screw,
26	Baffle, Bottom
27	Protector, Edge
29	Frame,
29	Frame, Outer (Almond Model)
29	Frame, Outer (Black Model)
34	WP488729 Whirlpool Refrigerator Door Screw
34	WPL 3186981
37	Seal, Foam (2)
38	WPL 3147595
38	WPL 3184861
39	WPL 3147596
39	WPL 3184862
42	WPL 3150131
42	WPL 3150133
43	WPL 313758
