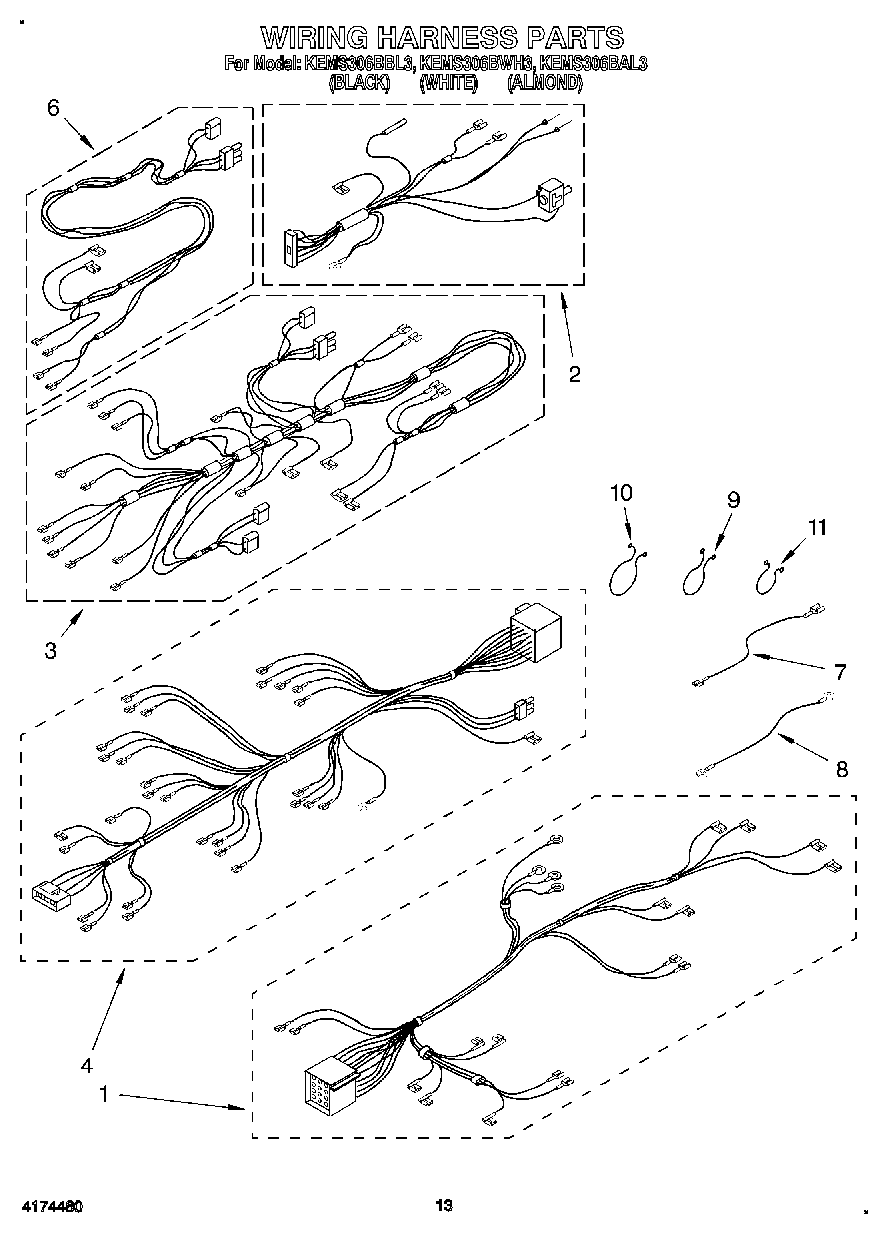

KEMS306BBL3 09 – WIRING HARNESSadmin2025-04-26T10:28:28+00:00KEMS306BBL3 09 – WIRING HARNESS
Products
| Position | Product |
|---|
| 1 | Harness, Wiring (Main Oven) |
| 2 | Jack Assy. |
| 3 | Harness, Wiring (Main Microwave) |
| 4 | Harness, Wiring (Upper, Wire) |
| 6 | Harness, Wire (Base Plate) |
| 7 | Wire, Jumper |
| 8 | Wire, Ground |
| 9 | Clip, Harness |
| 10 | Clip, Harness |
| 11 | Clip, harness |
