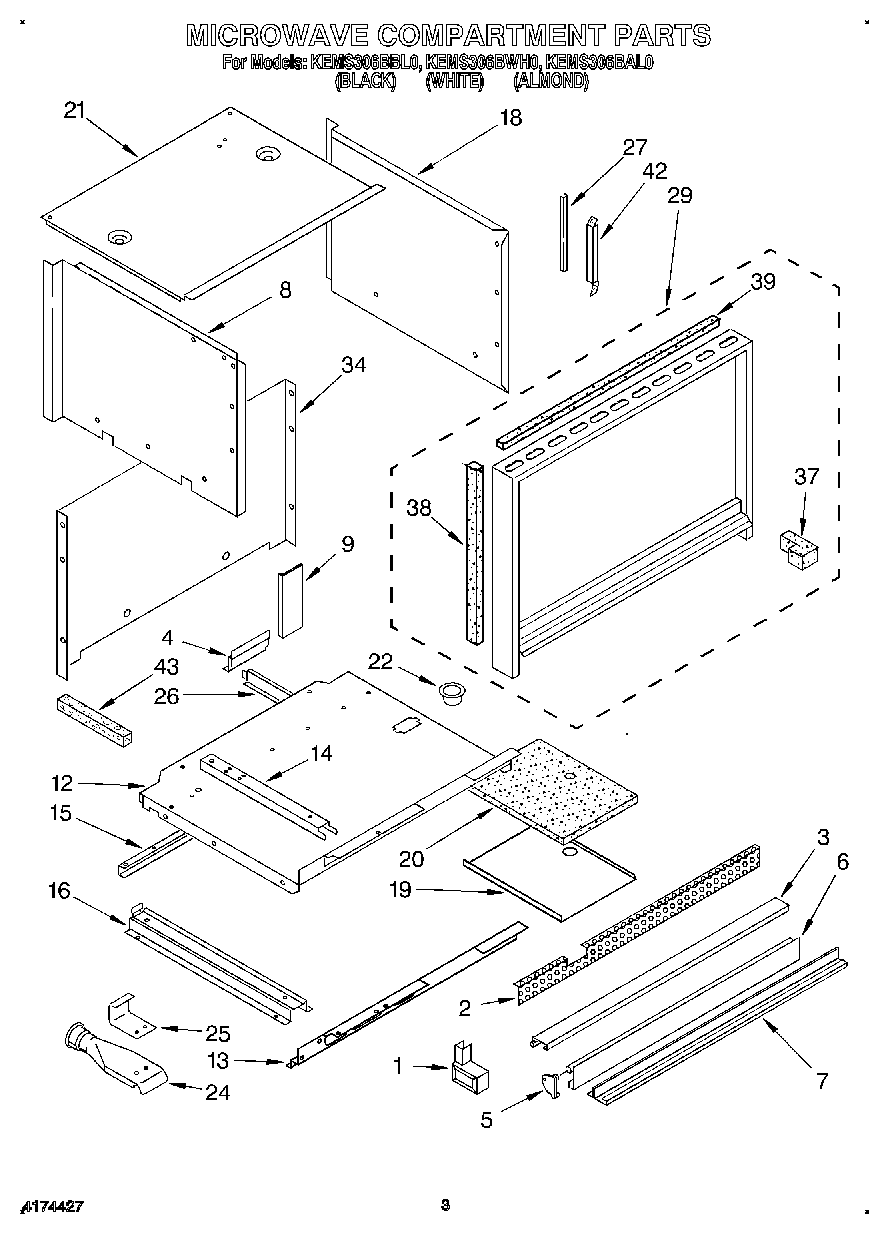

KEMS306BWH0 02 – MICROWAVE COMPARTMENT

Products

Position	Product
1	End Cap (Washer)
1	End Cap (LH, Black Model)
1	End Cap (RH, Almond Model)
1	End Cap (LH, Almond Model)
1	End Cap (RH, White Model)
1	End Cap (LH, White Model)
1	End Cap (RH, Black Model)
2	Trim, Oven Vent
3	WP965173 Whirlpool Dishwasher Screw
3	Trim, Top (Almond Model)
3	Trim, Top
3	Trim, Top (White Model)
4	Baffle, Bottom
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	End Trim, Vent (Right Side)
5	End Trim, Vent (Left Side)
6	Door, Vent (Black Model)
6	Door, Vent (White Model)
6	Door, Vent (Almond Model)
7	Screw, 10-32 x 1/2
7	Trim, Bottom
8	Side Panel L.H.
9	Seal, foam
9	Baffle, Rear
12	Panel, Support
13	Support, Brace
14	Rail, Microwave
14	Screw (4)
15	Brace, Bottom
16	Rail, Chassis
18	Side Panel, R.H.
19	Retainer, Insulation
20	Insulation
21	Screw
21	Panel, Top
21	Panel, Side L.H. (Screw, 10A x 1/2 (2))
22	Bushing, Snap
24	Vent Tube
25	Screw,
25	Support, Vent Tube
26	Baffle, Bottom
27	Protector, Edge
29	Frame, Outer (Black Model)
29	Frame, Outer (Almond Model)
29	Frame,
34	WP488729 Whirlpool Refrigerator Door Screw
34	WPL 3186981
37	Seal, Foam (2)
38	WPL 3147595
38	WPL 3184861
39	WPL 3184862
39	WPL 3147596
42	WPL 3150133
42	WPL 3150131
43	Vent, Lower Trim (Screw (4))
43	WPL 313758
