KEMS306XAL0 02 – OVEN, LIT/OPTIONAL

KEMS306XAL0 02 – OVEN, LIT/OPTIONAL

Written by

in

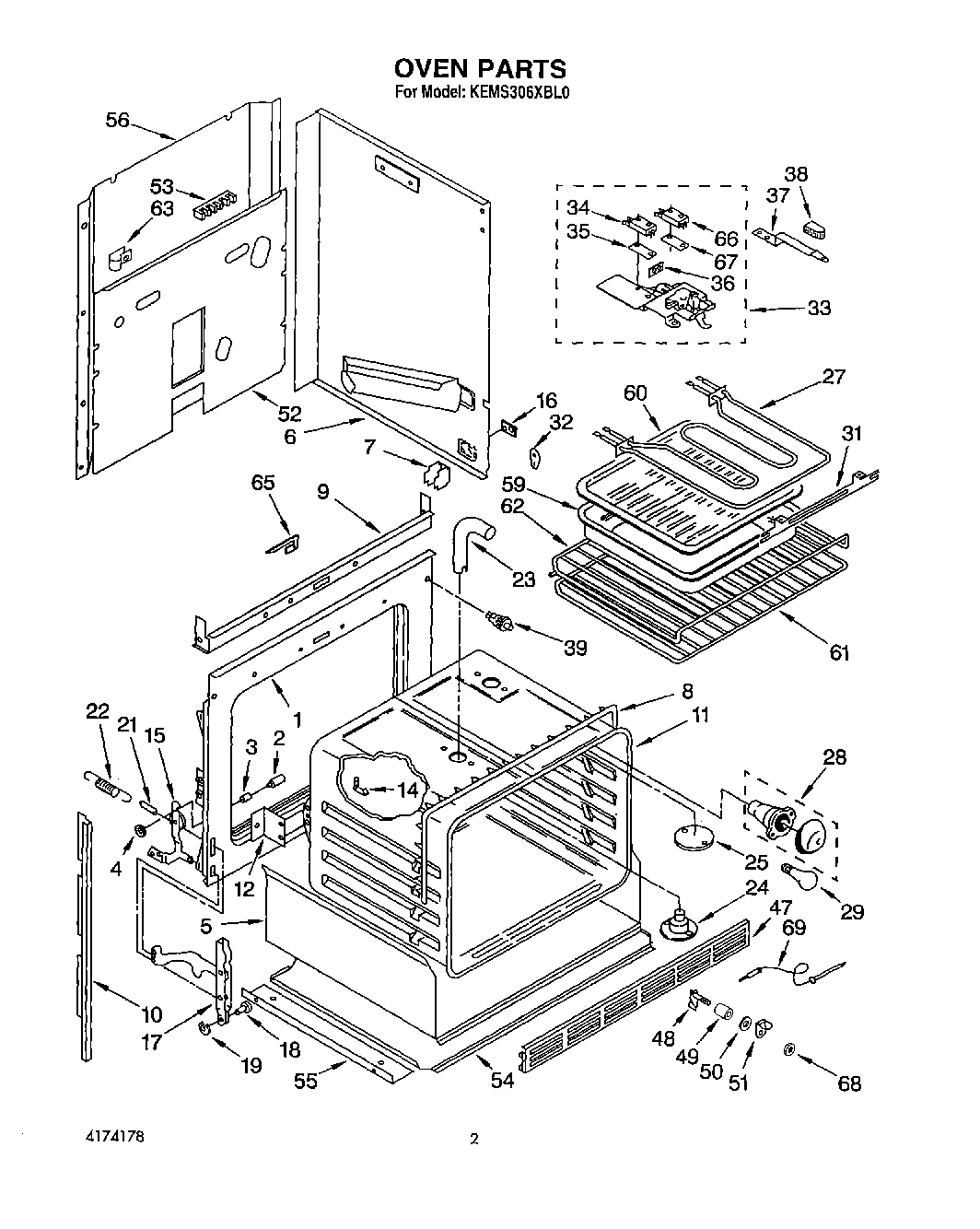

KEMS306XAL0 02 – OVEN, LIT/OPTIONAL

Products

PositionProduct
WPL LIT3150113
WPL LIT3181679
WPL LIT3147005
WPL LIT3150142
WPL LIT3181729
WPL LIT4174178
Label, Defrost Guide
Cookbook Microwave
WPL 3171507
Label, Auto Cook Guide
1Frame, Front
2Pin, Hinge Ear (2)
3Snubber, Door (2)
4Pushnut (2)
5Insulation Tray
6Side Wrapper (Left Side)
6Side Wrapper (Right Side)
7Support, Side Wrapper (4)
8Seal, Door
9Baffle, Top Insulation
10Side Trim (Right Side)
10Side Trim (Left Side)
11SCREW
11Oven (30“ Pyro)
12Bracket, Oven Mounting (2)
13Plug Button
1498005642 Whirlpool Clip
15Hinge Ear, L.H.
15Hinge Ear, R.H.
16WP308544 Whirlpool Screw
16Plate, Side Panel (2)
17Channel Arm (2)
18WP307986 Whirlpool Hinge Pin
19Retainer Ring (2)
21WP308125 Whirlpool Microwave Range/Cooktop Anchor
22WP308126 Whirlpool Door Spring
23Tube, Vent
24Eliminator, Smoke
24WP90767 Whirlpool Screw
25WPL 310662
27Unit, Broil (240V)
28W11594027 Whirlpool Range Oven Light Socket
29RANGE ONLY 40W 120V APPL BULB
31Bracket, Element
32WP488729 Whirlpool Refrigerator Door Screw
32WPL 311982
33Screw (3)
33Latch Assembly
34Safety Switch
35Insulator, Switch
36Screw
36Shield, Latch
37Screw
37Latch, Handle
38Screw, 80 x 5/16
38Knob, Latch Handle
39Screw
39Switch, Door
47Bottom Grill (Almond)
47Grill, Bottom (White)
47Grill, Bottom (Black)
47Grill, Bottom (Screw (3))
48Receptacle, Probe
49Spacer – Tubing
50Gasket, Meat Probe
51Jack Cover
52WPL 3183073
53WP8203546 Whirlpool Terminal Block
53WP112432 Whirlpool Nut Assembly
53Screw (10-12 x .875)
53WPL 3147001
54WPL 310458
55Angle, Support (2)
56Cover, Rear
604396923 Whirlpool Broil Pan Set Gray Porcelain
61WPL 308173
62WPL 308172
63WP308605 Whirlpool Refrigerator Clamp
65screw
65Shield, Air
65WPL 309080
66Switch, Lock
67WPL 3147864
67Screw, 10A x 1/2 (2) (Black)
68Lock-Nut, Cvr.Jack
69WPL 3149328
69WPL 310433
69WPL 310434
69Probe
