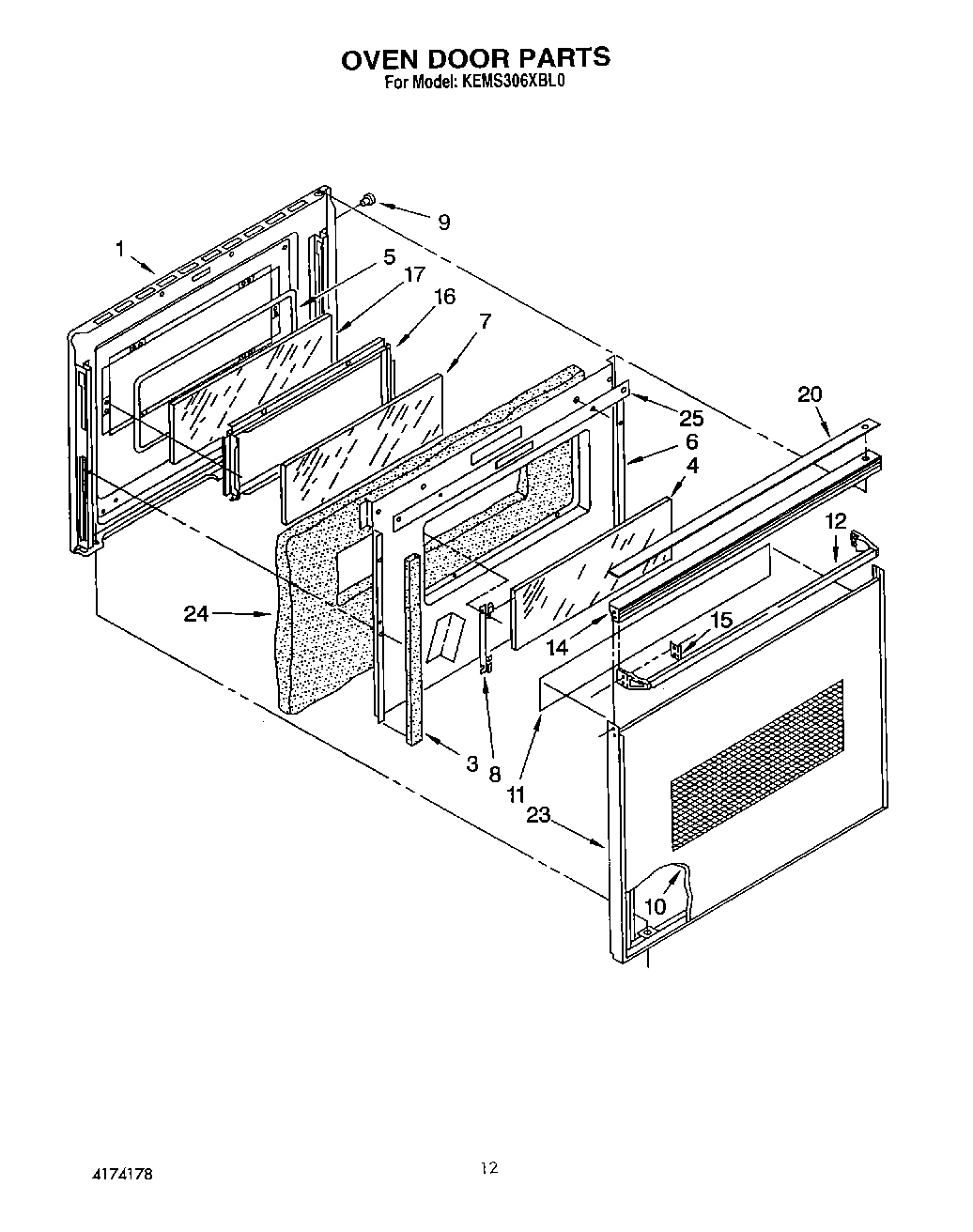

KEMS306XAL0 09 – OVEN DOORadmin2025-04-26T10:25:52+00:00KEMS306XAL0 09 – OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Liner, Door |
| 3 | Seal, Flange (2) |
| 4 | Glass, Reflective |
| 5 | Seal, Door |
| 6 | Retainer, |
| 8 | Retainer, Glass (2) |
| 9 | Bumper (4) |
| 10 | Glass, Panel (Black Model) |
| 10 | Glass, Panel (White) |
| 10 | Glass, Panel (White Model) |
| 11 | Foil, Door |
| 12 | WP308685 Whirlpool Microwave Screw |
| 12 | Handle, Door (White) |
| 12 | Handle, Oven Door |
| 12 | Handle, Door (Almond) |
| 14 | Top, Door (White Model) |
| 14 | Top, Door (Black Model) |
| 15 | WP355515 Whirlpool Screw |
| 15 | Clip, Mtg (2) |
| 16 | Frame, Inner |
| 16 | Screw |
| 17 | WP3169203 Whirlpool Door Glass |
| 20 | Screw |
| 20 | Cap, Top |
| 23 | Frame, Door |
| 24 | Insulation, Door |
| 25 | Sheild, Door |
| 25 | Screw, |
