KEMS306XAL1 02 – OVEN, LIT/OPTIONAL

Products

PositionProduct
Label, Defrost Guide
Cookbook Microwave
Label, Auto Cook Guide
WPL 3171507
WPL LIT4174241
WPL LIT3147005
WPL LIT3181679
WPL LIT3150113
WPL LIT3150142
WPL LIT3181729

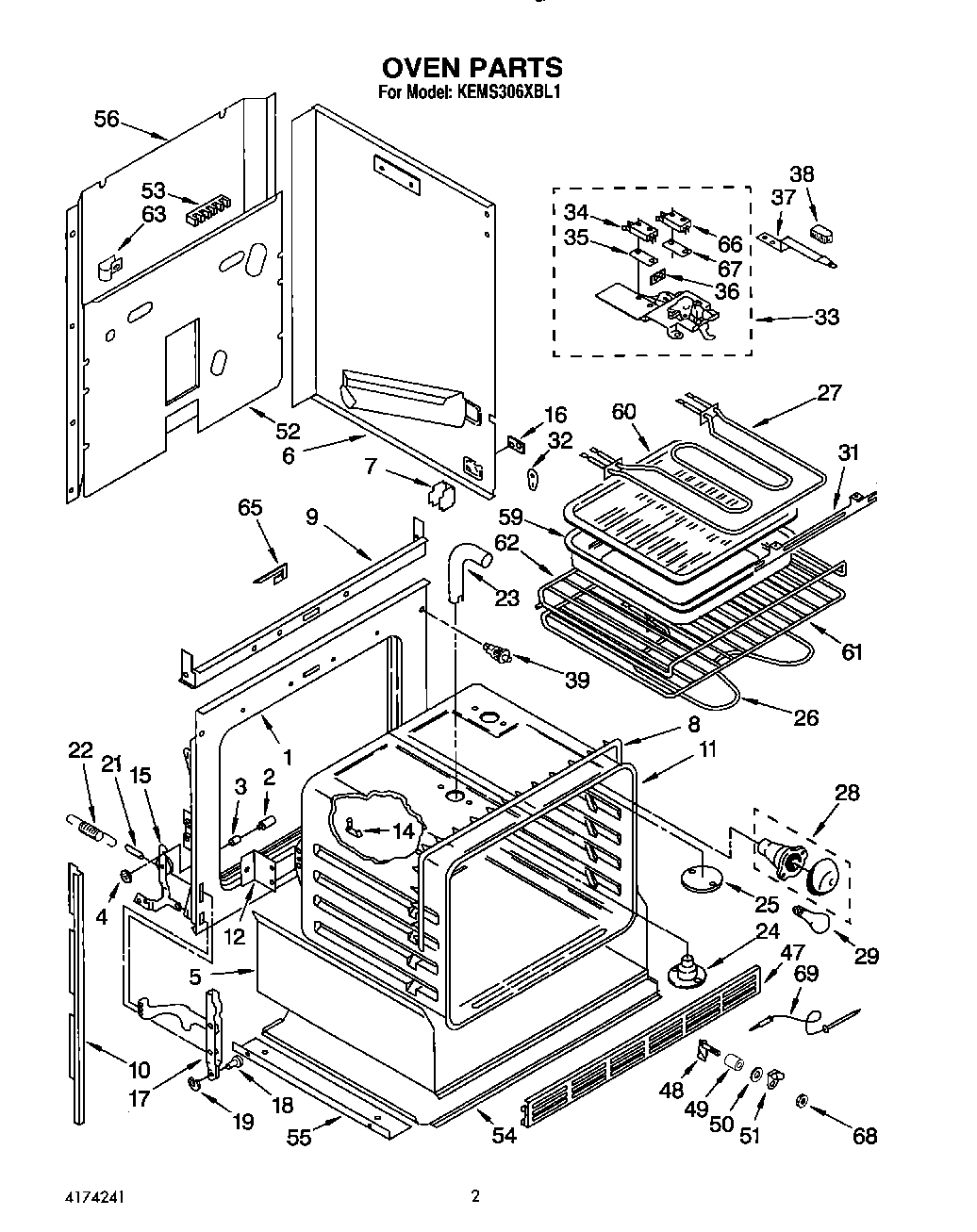

1Frame, Front
2Pin, Hinge Ear (2)
3Snubber, Door (2)
4Pushnut (2)
5Insulation Tray
6Side Wrapper (Right Side)
6Side Wrapper (Left Side)
7Support, Side Wrapper (4)
8Seal, Door
9Baffle, Top Insulation
10Side Trim (Right Side)
10Side Trim (Left Side)
11SCREW
11Oven 30“
12Bracket, Oven Mounting (2)
1498005642 Whirlpool Clip
15Hinge Ear, R.H.
15Hinge Ear, L.H.
16WP308544 Whirlpool Screw
16Plate, Side Panel (2)
17Channel Arm (2)
18WP307986 Whirlpool Hinge Pin
19Retainer Ring (2)
21WP308125 Whirlpool Microwave Range/Cooktop Anchor
22WP308126 Whirlpool Door Spring
23Tube, Vent
24Eliminator, Smoke
24WP90767 Whirlpool Screw
25WPL 310662
26WP661416 Whirlpool Bake Element
27Unit, Broil
28W11594027 Whirlpool Range Oven Light Socket
29RANGE ONLY 40W 120V APPL BULB
31Bracket, Element
32WP488729 Whirlpool Refrigerator Door Screw
32WPL 311982
33Screw (3)
33Latch Assembly
34Safety Switch
35Insulator, Switch
36Screw
36Shield, Latch
37Screw
37Latch, Handle
38Knob, Latch Handle
38Screw
39Switch, Door
39Screw
47Grill, Bottom (White)
47Bottom Grill (Almond)
47Grill, Bottom (Black)
47Grill, Bottom (Screw (3))
48Receptacle, Probe
49Spacer – Tubing
50Gasket, Meat Probe
51Jack Cover
52Panel, Back
53WPL 3147001
53WP112432 Whirlpool Nut Assembly
53WP8203546 Whirlpool Terminal Block
53Screw (10-12 x .875)
54WPL 310458
55Angle, Support (2)
56Cover, Rear
604396923 Whirlpool Broil Pan Set Gray Porcelain
61Rack, Straight
62Rack, Oven Offset
63WP308605 Whirlpool Refrigerator Clamp
65WPL 309080
65Shield, Air
65screw
66Switch, Lock
67WPL 3147864
67Screw, 10A x 1/2 (2) (Black)
68Lock-Nut, Cvr.Jack
69WPL 3149328
69Probe
69WPL 310433
69WPL 310434
