KEMS306XAL3 01 – OVEN, LITERATURE

KEMS306XAL3 01 – OVEN, LITERATURE

Written by

in

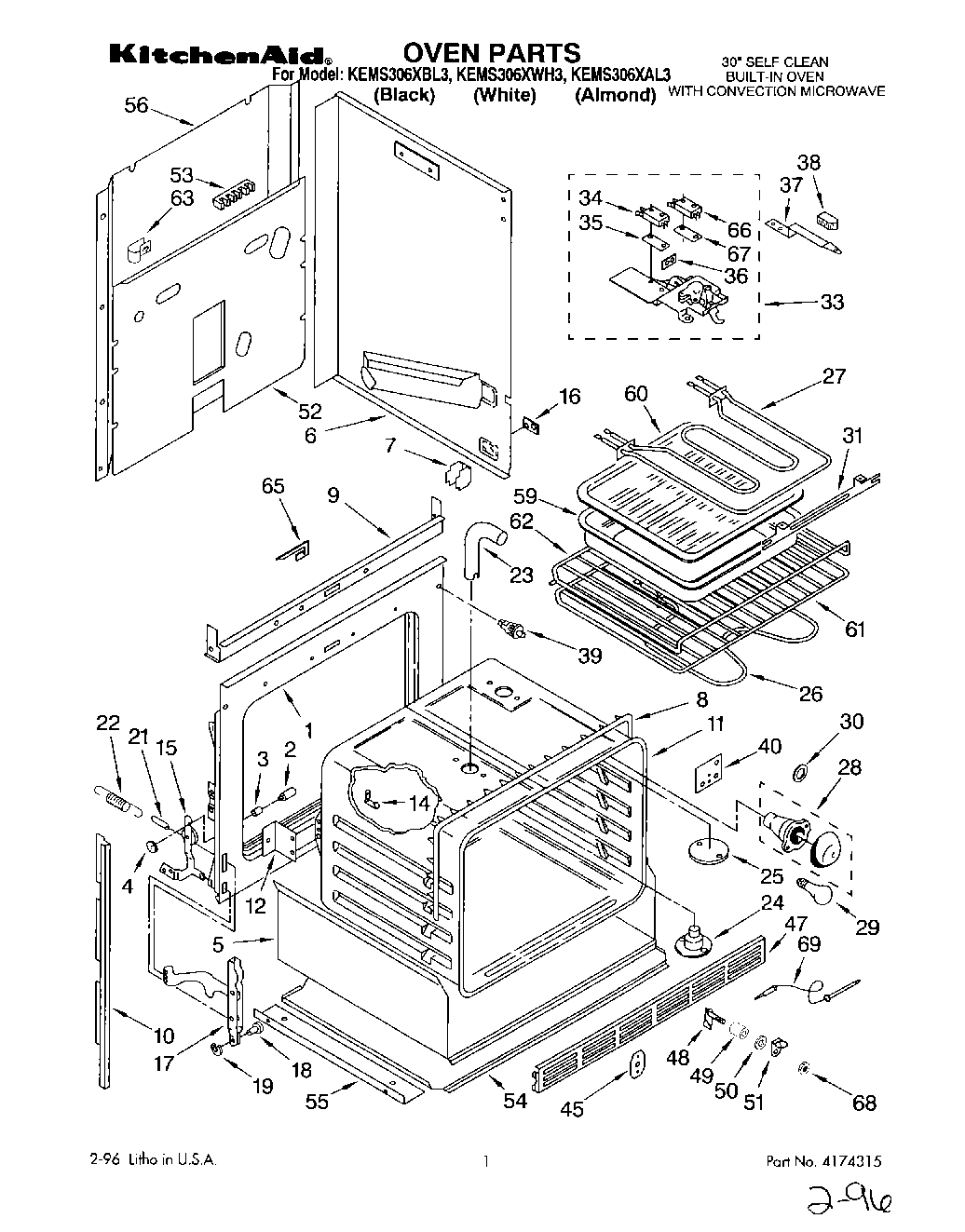

KEMS306XAL3 01 – OVEN, LITERATURE

Products

PositionProduct
WPL 3171507
WPL LIT3181679
WPL LIT3150113
WPL LIT4174316
WPL LIT3150142
WPL LIT3181729
Label, Defrost Guide
Label, Auto Cook Guide
Cookbook Microwave
WPL LIT3147005
1Frame, Front
2Pin, Hinge Ear (2)
3Snubber, Door (2)
4Pushnut (2)
5Insulation Tray
6Side Wrapper (Right Side)
6Side Wrapper (Left Side)
7Support, Side Wrapper (4)
8WPL 3185197
9Baffle, Top Insulation
10Side Trim (Right Side)
10Side Trim (Left Side)
11SCREW
11Oven 30“
12Bracket, Oven Mounting (2)
1498005642 Whirlpool Clip
15Hinge, Ear (Right Side)
15Hinge, Ear (Left Side)
16Plate, Side Panel (2)
16WP308544 Whirlpool Screw
17Channel Arm (2)
18WP307986 Whirlpool Hinge Pin
19Retainer Ring (2)
21WP308125 Whirlpool Microwave Range/Cooktop Anchor
22WP308126 Whirlpool Door Spring
23Tube, Vent
24WP90767 Whirlpool Screw
24Eliminator, Smoke
25WPL 310662
26WP661416 Whirlpool Bake Element
27Unit, Broil
28W11594027 Whirlpool Range Oven Light Socket
29RANGE ONLY 40W 120V APPL BULB
30WP3184533 Whirlpool Range Light Lens Gasket
31WP488729 Whirlpool Refrigerator Door Screw
31Bracket, Element
33Latch Assembly
33Screw (3)
34Safety Switch
35Insulator, Switch
36Shield, Latch
36Screw
37Latch, Handle
37Screw
38Knob, Latch Handle
38Screw
39Switch, Door
39Screw
40WPL 3183005
45Plate, Cover
47Grill, Bottom (White)
47Bottom Grill (Almond)
47Grill, Bottom (Black)
47Grill, Bottom (Screw (3))
48Receptacle, Probe
49Spacer – Tubing
50Gasket, Meat Probe
51Jack Cover
52Panel, Back
53WPL 3147001
53Screw (10-12 x .875)
53WP8203546 Whirlpool Terminal Block
53WP112432 Whirlpool Nut Assembly
54WPL 310458
55Angle, Support (2)
604396923 Whirlpool Broil Pan Set Gray Porcelain
61Rack, Straight
62Rack, Oven Offset
63WP308605 Whirlpool Refrigerator Clamp
65Shield, Air
65screw
65WPL 309080
66Switch, Lock
67WPL 3147864
67Screw, 10A x 1/2 (2) (Black)
68Lock-Nut, Cvr.Jack
69WPL 310433
69WPL 3149328
69Probe
69WPL 310435
