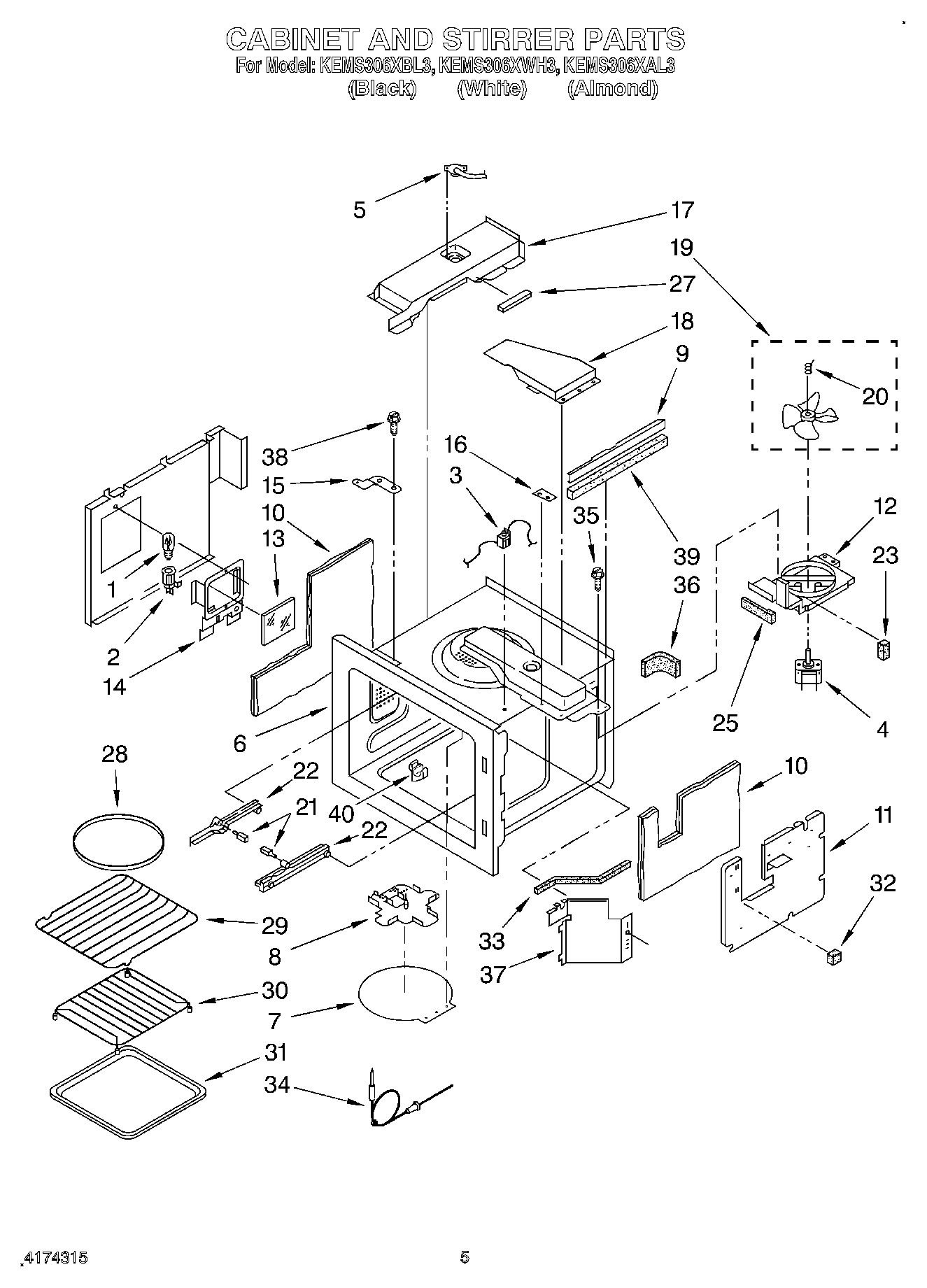

KEMS306XAL3 03 – CABINET AND STIRRER, OPTIONAL

KEMS306XAL3 03 – CABINET AND STIRRER, OPTIONAL

Written by

in

KEMS306XAL3 03 – CABINET AND STIRRER, OPTIONAL

Products

Position	Product
1	WPA3073101 Whirlpool Light Bulb
2	Light Socket
3	Jack Assy.
4	Motor, Fan Cooling
5	Sensor Assy.
6	Cavity, Oven (Not a Serviceable Part)
7	Stirrer Cover Assy.
8	Stirrer Fan Assy.
9	Support, Chassis
10	Insulation (L.H.)
10	Insulation (R.H.)
11	Panel, Oven Cavity (L.H.)
11	Panel, Oven Cavity (R.H.)
12	Stirrer Fan Duct
13	Glass, Oven Light
14	Mounting Plate, Oven Light
15	Upper Hinge
16	Divider Plate
17	Exhaust Duct Assy.
18	Cooling Duct Magnetron
19	Fan Blade Assy.
20	Clip, Retainer
21	Plastic Screw
22	Rack Support (L.H.)
22	Rack Support (R.H.)
23	Block, Foam
25	Block, Foam
27	Block, Foam
28	Cookie Sheet
29	Rack (Upper)
30	Rack (Lower)
31	Tray, Cooking
32	Block, Foam
33	Block, Foam
34	Temperature Probe Assy.
35	Screw
36	Block, Foam
37	Magnetron Duct Assembly
38	Screw (2)
39	WPL 4312992
40	72017 Whirlpool Appliance Touch-Up Paint White
40	Golden Harvest
40	Toast
40	Paint, Spray (13 Oz.) (Platinum)
40	Enamal, Toast (1 Qt. Uncut)
40	WPL 786032
40	Platinum (Uncut)
40	WPL 786020
40	WPL 72112
40	72113 Whirlpool Touch-Up Paint
40	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
40	Golden Harvest (Uncut)
40	799344 Whirlpool Refrigerator Paint
40	350956 Whirlpool Spray Assembly
40	261900 Whirlpool Microwave Spray
40	WP72107 Whirlpool Touchup
40	WPL 3171507
40	Leveler (Thinner)
40	WP3149478 Whirlpool Microwave Support
40	350930 Whirlpool White Spray Paint
40	Almond (Uncut)
40	350942 Whirlpool Spray Paint
40	Wire (14 Ga. 150 c Brown)
40	1
40	Wire (14 Ga. 150 c Green)
40	Wire (14 Ga. 150 c Orange)
40	Wire (14 Ga. 150 c Yellow)
40	18 Ga. 80~c Rating (Red)
40	Wire (14 Ga. 200 c Brown)
40	WPL 832985
40	WPL 591014
40	Wire (14 Ga. 150 c Blue)
40	WP261869 Whirlpool Microwave Paint
40	WPL 799832
40	Wire, 25` Roll (Black 14 Ga.)
40	Wire, 25` Roll (Red 14 Ga.)
40	Wire, 25“ Roll (White 14 GA.)
40	285006 Whirlpool Spray
40	72032 Whirlpool Touch Up Paint Black
40	WP482338 Whirlpool Refrigerator Adhesive
40	242831 Whirlpool Oven Wire
40	Wire (12 Ga. 150 c Black)
40	WPL 350806
