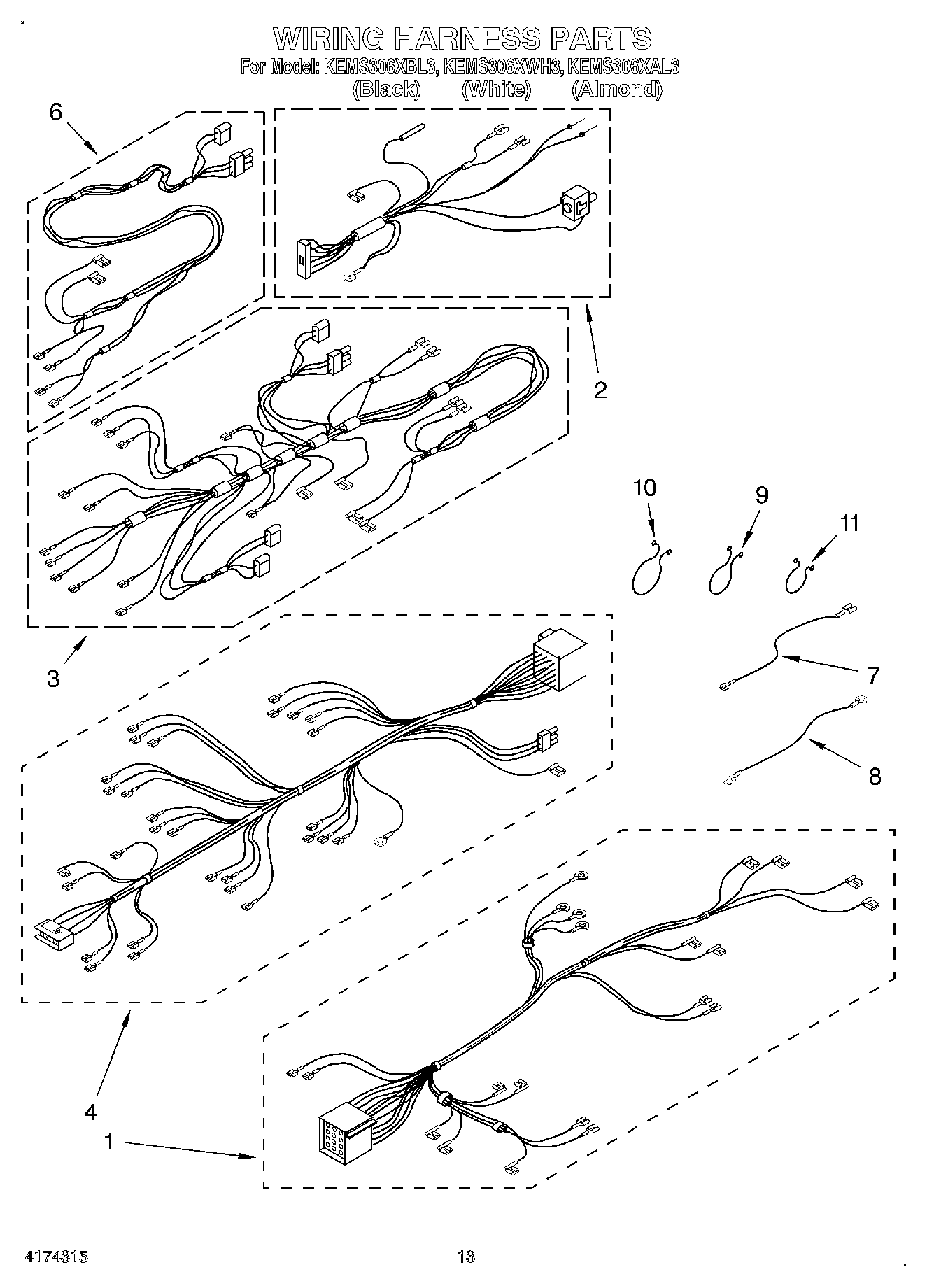

KEMS306XAL3 09 – WIRING HARNESS

Written by

Products

Position	Product
1	Harness, Wiring (Main Oven)
2	Jack Assy.
3	Harness, Wiring (Main Microwave)
4	Harness, Wiring (Sel/Thermo)
6	Harness, Wire (Base Plate)
7	Wire, Jumper
8	Wire, Ground
9	Clip, Harness
10	Clip, Harness
11	Clip, harness
