KEMS306XAL4 05 – CABINET

KEMS306XAL4 05 – CABINET

Written by

in

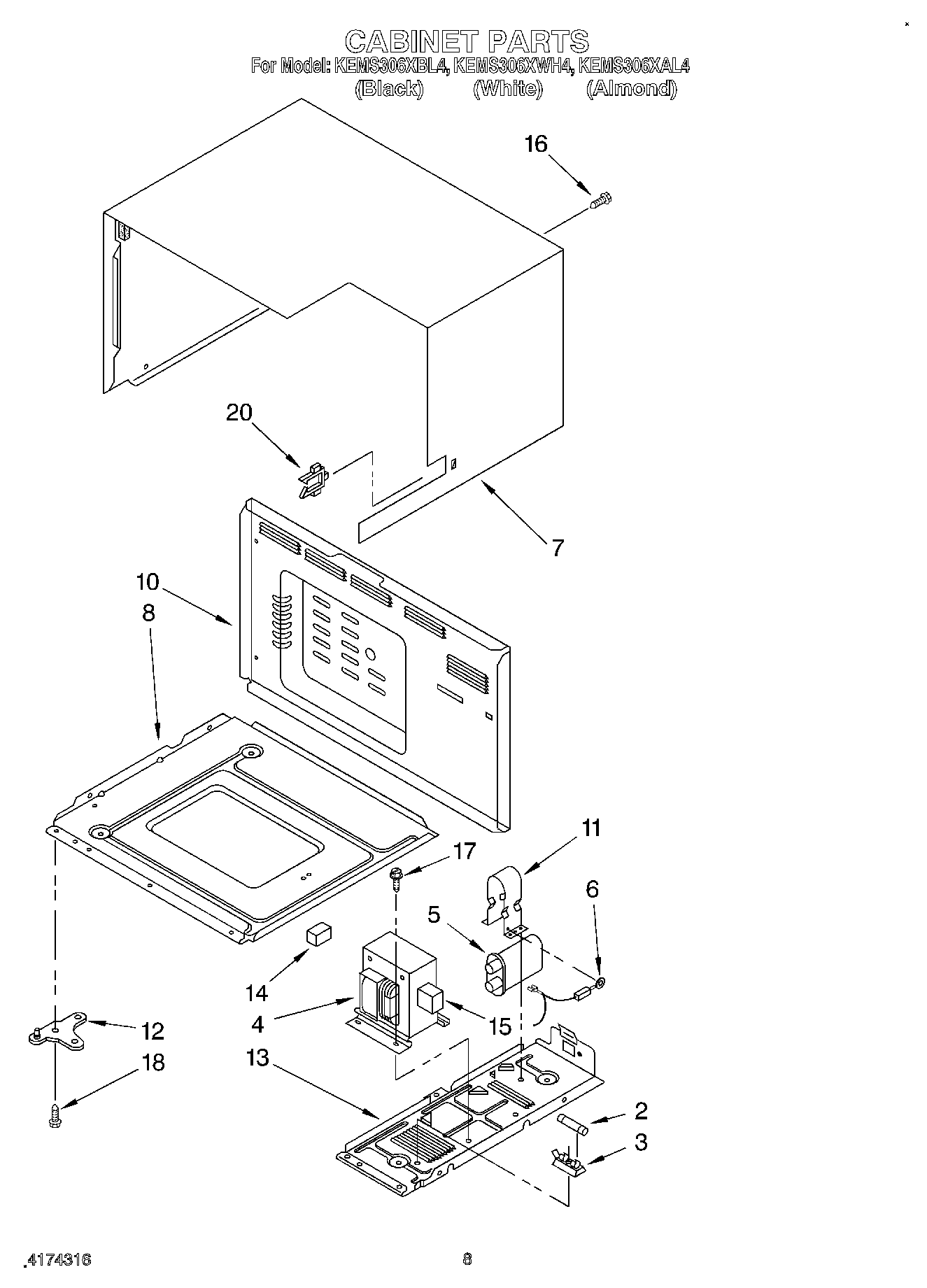

KEMS306XAL4 05 – CABINET

Products

Position	Product
2	Fuse, 20 Amp
3	Fuse Holder
4	Transformer
5	Capacitor
6	Rectifier
7	Outer Cabinet
7	Seal, Foam
8	Cabinet Base
8	Seal, Foam
10	Cabinet Rear
11	Capacitor Holder
12	Lower Hinge
13	Extension, Cabinet Base
14	Block, Foam
15	Vibration Block
16	Screw (9)
17	Screw (2)
18	Screw (3)
20	Holder, Wire
