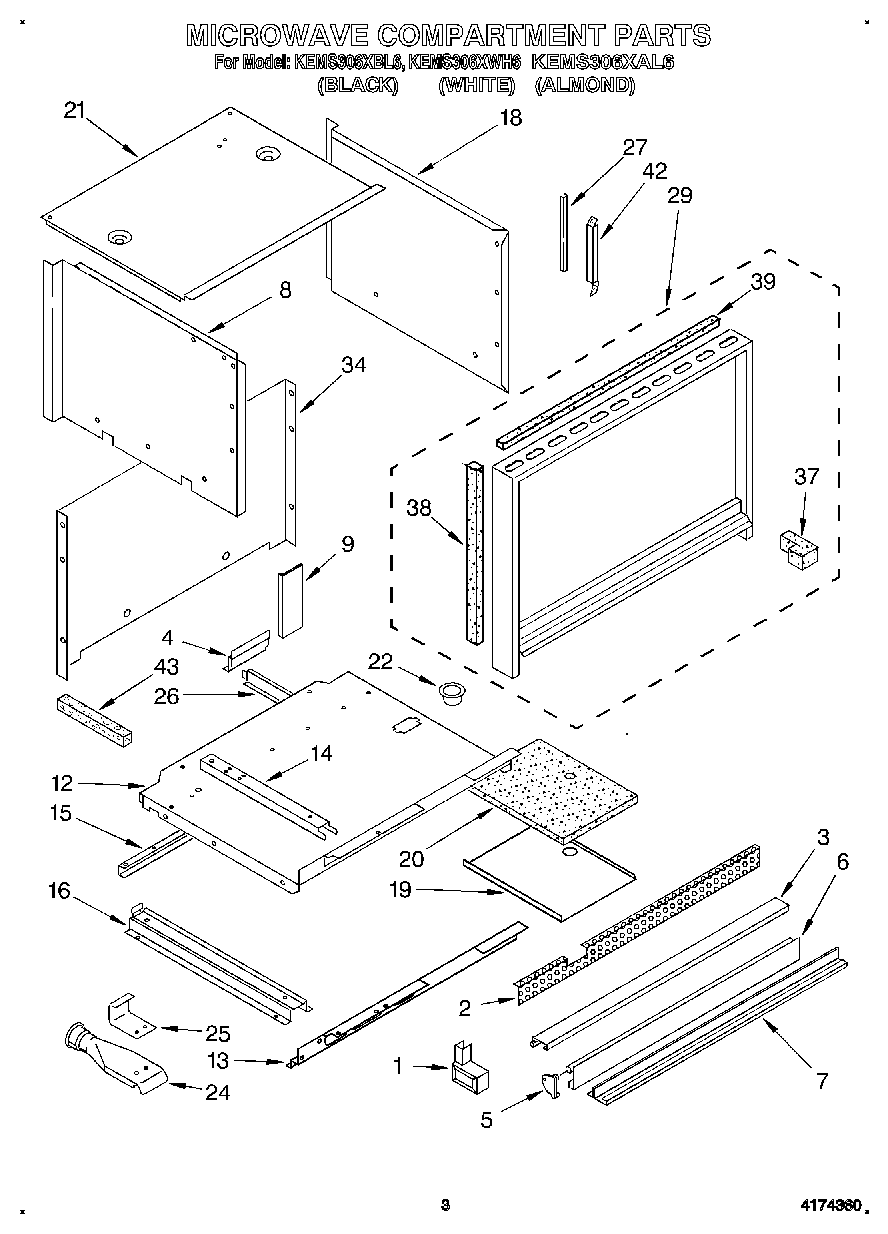

KEMS306XAL6 02 – MICROWAVE COMPARTMENT

Products

Position	Product
1	End Cap (Washer)
1	End Cap, R.H.
1	End Cap, L.H.
2	Trim, Oven Vent
3	WP965173 Whirlpool Dishwasher Screw
3	Trim, Top (White & Almond Model)
3	Trim, Top
4	Baffle, Bottom
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	End Trim, Vent (Right Side)
5	End Trim, Vent (Left Side)
6	Door, Vent (Black Model)
6	Door, Vent (White & Almond Model)
7	Trim, Bottom
7	Screw, 10-32 x 1/2
8	Side Panel L.H.
9	Seal, foam
9	Baffle, Rear
12	Panel, Support
13	Support, Brace
14	Rail, Microwave
14	Screw (4)
15	Brace, Bottom
16	Rail, Chassis
18	Side Panel, R.H.
19	Retainer, Insulation
20	Insulation
21	Panel, Side L.H. (Screw, 10A x 1/2 (2))
21	Panel, Top
22	Bushing, Snap
24	Vent Tube
25	Support, Vent Tube
25	Screw,
26	Baffle, Bottom
27	Protector, Edge
29	Frame, Outer (Almond)
29	Frame, Outer (Black)
29	Frame, Outer (White)
34	Cover, Rear
34	WP488729 Whirlpool Refrigerator Door Screw
37	Seal, Foam (2)
38	WPL 3147595
38	WPL 3184861
39	WPL 3147596
39	WPL 3184862
42	WPL 3150133
42	WPL 3150131
43	WPL 313758
