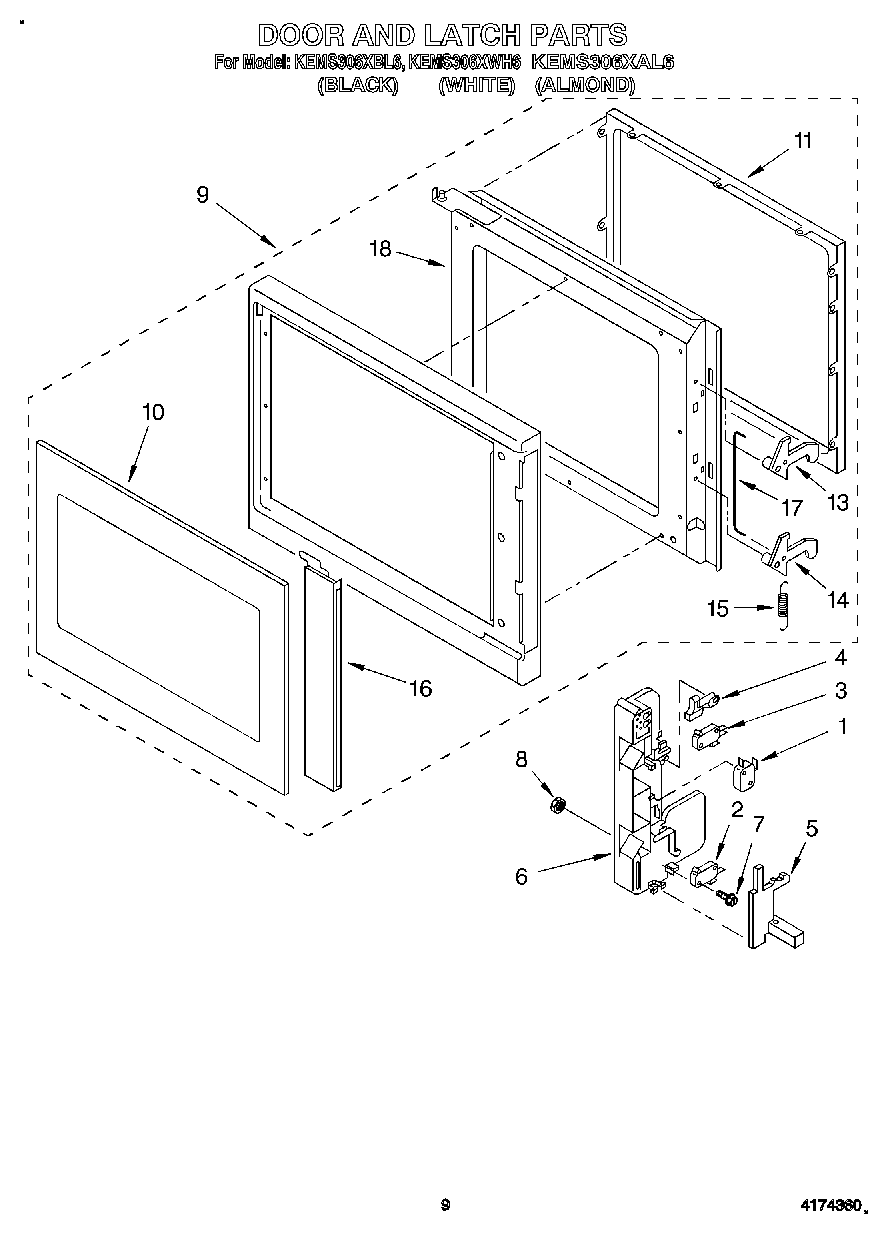

KEMS306XAL6 06 – DOOR AND LATCHadmin2025-04-26T10:30:18+00:00KEMS306XAL6 06 – DOOR AND LATCH
Products
| Position | Product |
|---|
| 1 | Switch and Fuse Assembly |
| 3 | 4392027 Whirlpool Microwave Primary Switch |
| 4 | Hook, Lever |
| 5 | Latch Lever |
| 6 | Latch Hook |
| 7 | Screw |
| 8 | Nut |
| 9 | Door, Complete (Black) |
| 9 | Door, Complete (White) |
| 9 | Door, Complete (Almond) |
| 10 | Panel, Glass (Almond) |
| 10 | Panel, Glass (White) |
| 10 | Panel, Glass (Black) |
| 11 | Retainer Ring |
| 13 | Upper Latch |
| 14 | Lower Latch |
| 15 | Spring, Latch |
| 16 | Cover, Frame (White) |
| 16 | Cover, Frame (Almond) |
| 16 | Cover, Frame (Black) |
| 17 | Shaft, Latch |
| 18 | Liner, Door |
