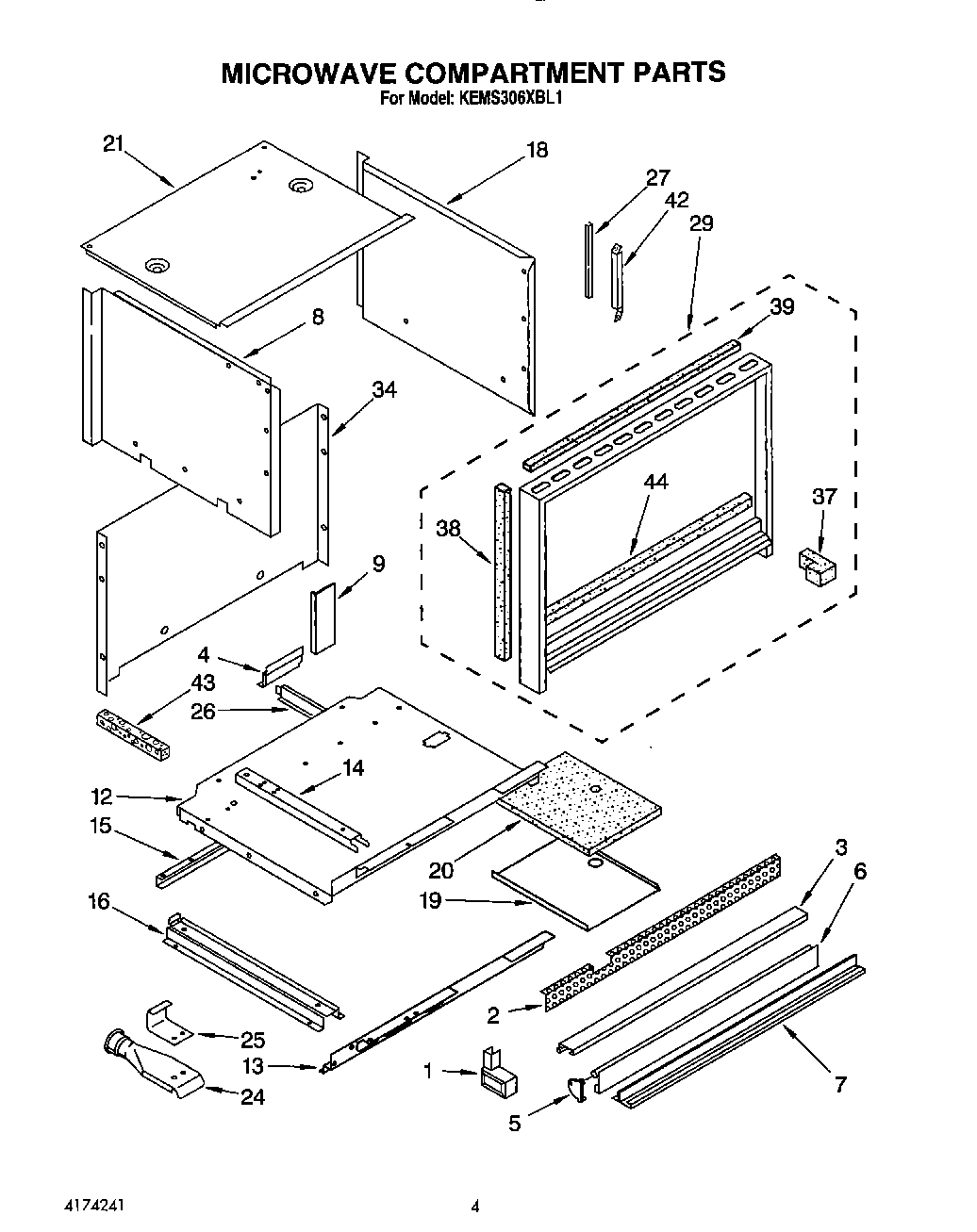

KEMS306XBL1 03 – MICROWAVE COMPARTMENT

Products

Position	Product
1	End Cap, R.H.
1	End Cap, L.H.
2	Trim, Oven Vent
3	WP965173 Whirlpool Dishwasher Screw
3	Trim, Top
3	Trim, Top (White & Almond Model)
4	Baffle, Bottom
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	Door, Vent (White & Almond Model)
6	Door, Vent (Black Model)
7	Trim, Bottom
7	Screw, 10-32 x 1/2
8	Side Panel, L.H.
9	Seal, foam
9	Baffle, Rear
12	Panel, Support
13	Support, Brace
14	Rail, Microwave
14	Screw (4)
15	Brace, Bottom
16	Rail, Chassis
17	Bushing, Snap
18	Side Panel, R.H.
19	Retainer, Insulation
20	Insulation
21	Panel, Top
21	302251 Whirlpool Dishwasher Screw
21	Panel, Side L.H. (Screw, 10A x 1/2 (2))
24	Vent Tube
25	Screw,
25	Support, Vent Tube
26	Baffle, Bottom
27	Protector, Edge
29	Frame, Outer (Almond)
29	Frame, Outer (White)
29	Frame, Outer (Black)
34	WP488729 Whirlpool Refrigerator Door Screw
34	Cover, Rear
37	Seal, Foam (2)
38	Seal, Foam Side (2) (White & Almond Model)
38	WPL 3147595
39	Seal, Foam Top (W
39	WPL 3147596
42	WPL 3150133
42	WPL 3150131
43	WPL 313758
44	WPL 3147590
