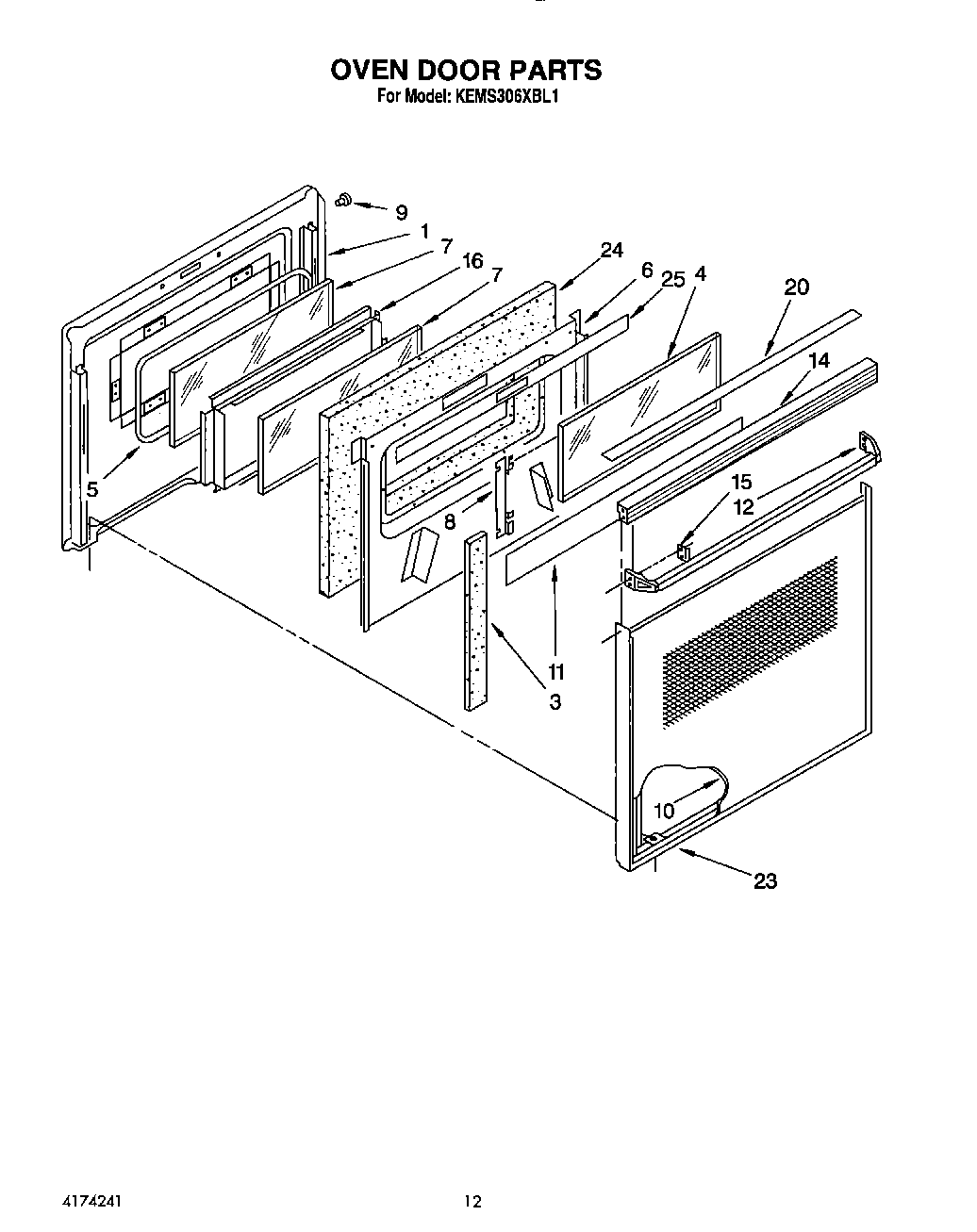

KEMS306XBL1 09 – OVEN DOOR

Products

Position	Product
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (White)
10	Glass, Panel (Black Model)
10	Glass, Panel (White Model)
11	Foil, Door
12	WP308685 Whirlpool Microwave Screw
12	Handle, Door (White)
12	Handle, Oven Door
12	Handle, Door (Almond)
14	Top, Door (White Model)
14	Top, Door (Black Model)
15	WP355515 Whirlpool Screw
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
20	Screw
20	Cap, Top
23	Frame, Door
24	Insulation, Door
25	Sheild, Door
25	Screw,
