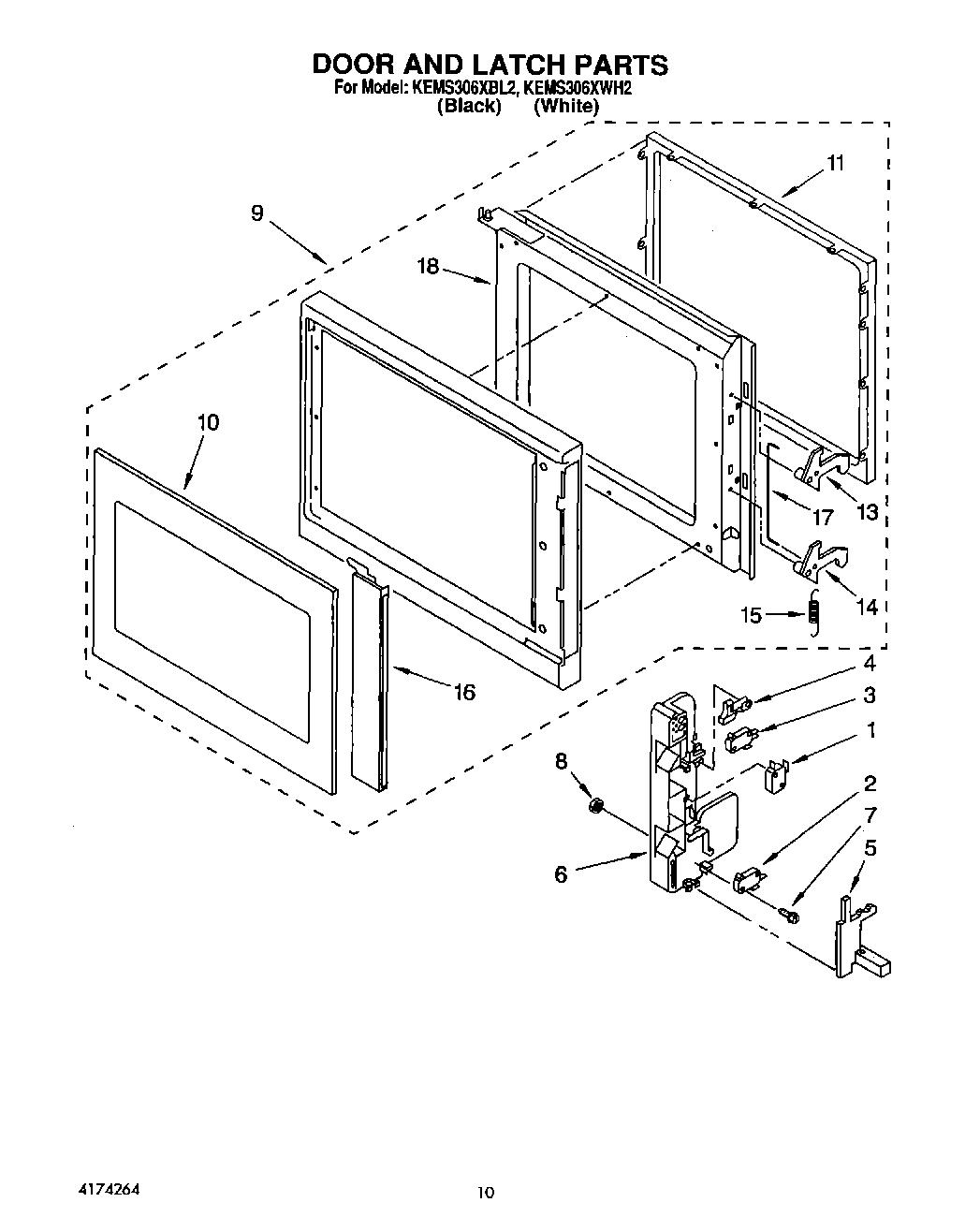

KEMS306XBL2 06 – DOOR AND LATCH

Products

Position	Product
1	Switch and Fuse Assembly
3	4392027 Whirlpool Microwave Primary Switch
4	Hook, Lever
5	Latch Lever
6	Latch Hook
7	Screw
8	Nut
9	Door, Complete (Black)
9	Door, Complete (White)
9	Door, Complete (Almond)
10	Panel, Glass (Almond)
10	Panel, Glass (White)
10	Panel, Glass (Black)
11	Retainer Ring
13	Upper Latch
14	Lower Latch
15	Spring, Latch
16	Cover, Frame (White)
16	Cover, Frame (Almond)
16	Cover, Frame (Black)
17	Shaft, Latch
18	Liner, Door
