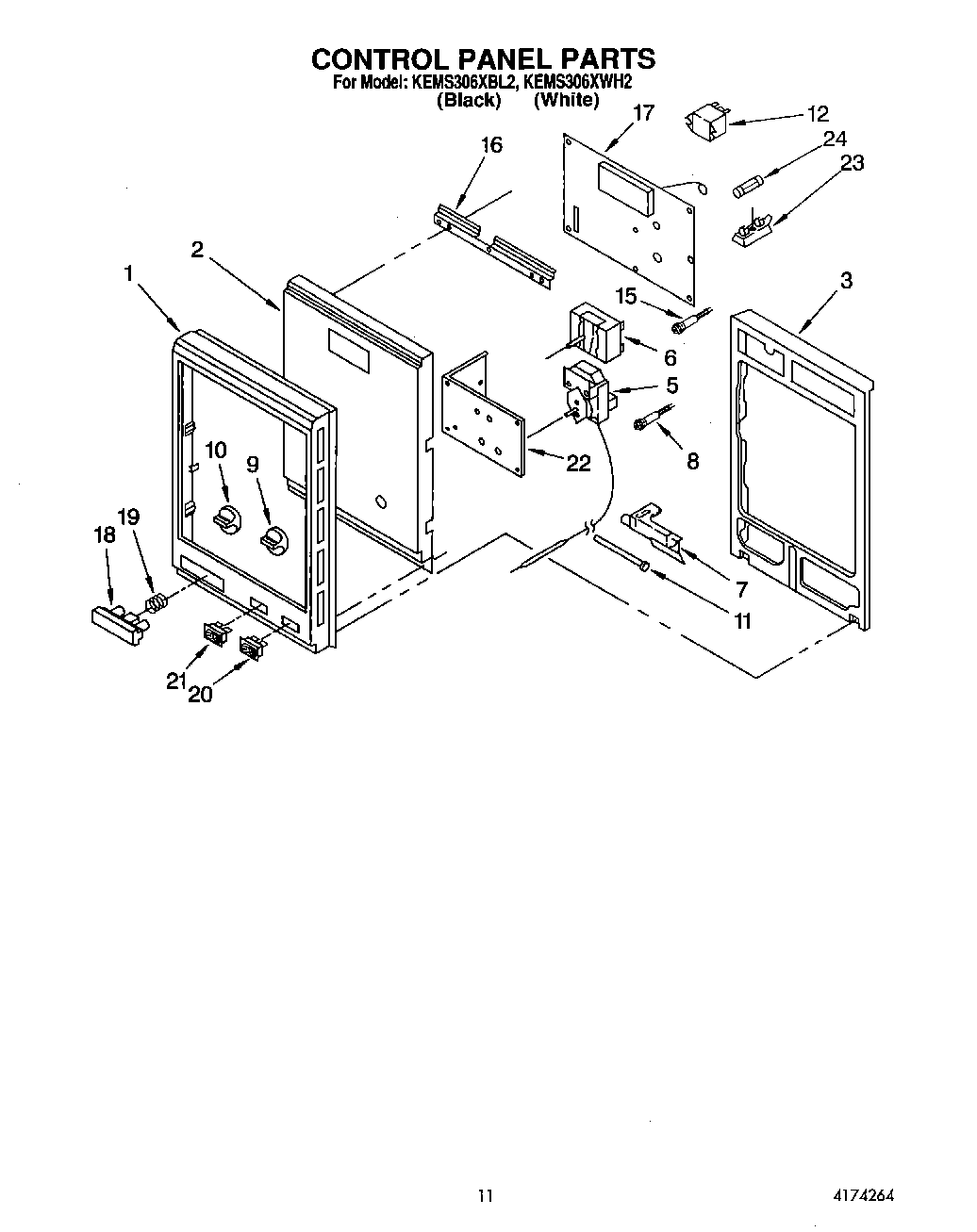

KEMS306XBL2 07 – CONTROL PANEL

Products

Position	Product
1	Screw (2)
1	Frame, Control Panel (Black)
1	Frame, Control Panel (White)
2	Screw
2	Switch Membrane (Control Module) (Black)
2	Switch Membrane (Control Module) (White)
3	Bracket, Control (Mounting)
5	WP313808 Whirlpool Screw
5	Thermostat
6	Switch, Selector
6	Screw, 8-32 x 3/16 (2)
7	Release Lever
8	Light, Indicator (4)
9	Knob, Control
10	Knob, Control
11	Mounting Pin
12	Relay, Power
12	Screw
15	Screw
15	Light, Indicator
16	Bracket, Mounting
16	Screw (3)
17	Microcomputer
17	Screw
18	Push Button (White)
18	Push Button (Black)
19	Spring, Button
20	WP4314961 Whirlpool Lite Switch
22	Bracket, Control Mounting
23	4454949 Whirlpool Oven Fuse Block
23	WP488729 Whirlpool Refrigerator Door Screw
24	WPW10017410 Whirlpool Fuse
