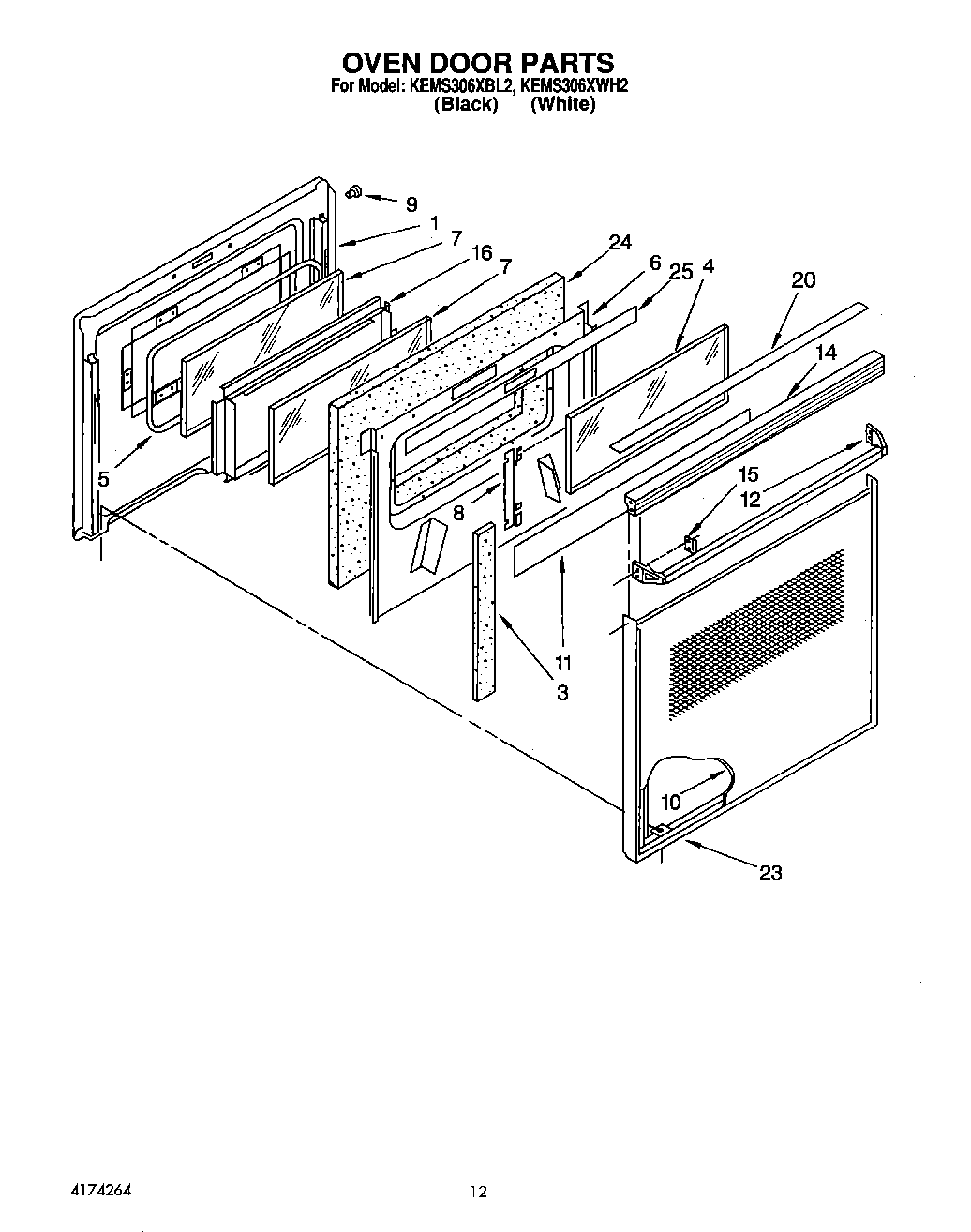

KEMS306XBL2 08 – OVEN DOOR

Products

Position	Product
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (White Model)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Oven Door (Black Model)
12	Handle, Oven Door (White Model)
12	WP308685 Whirlpool Microwave Screw
14	Top, Door (Black Model)
14	Top, Door (White Model)
15	WP355515 Whirlpool Screw
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
20	Cap, Top
20	Screw
23	Frame, Door
24	Insulation, Door
25	Screw,
25	Sheild, Door
