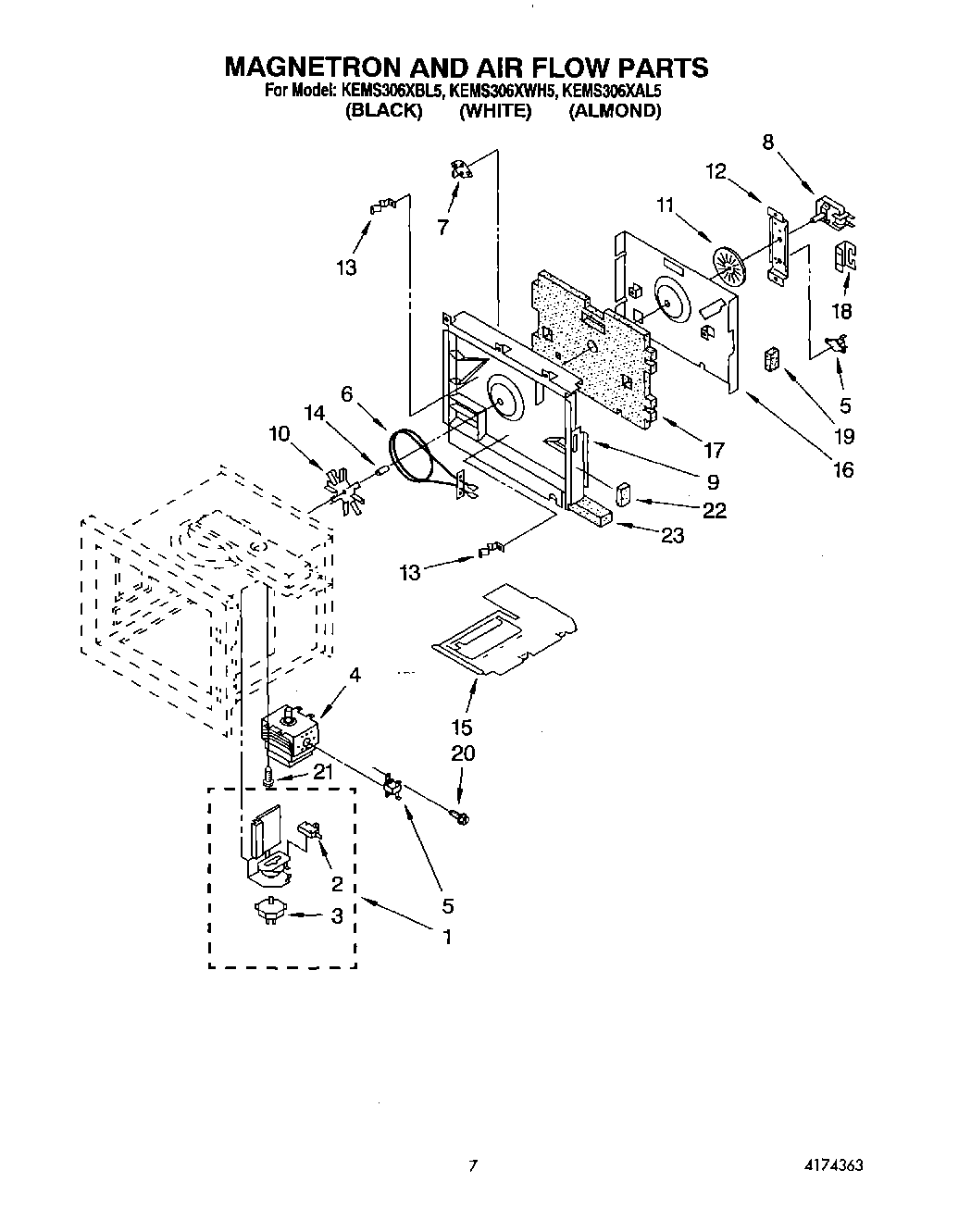

KEMS306XBL5 04 – MAGNETRON AND AIR FLOW

KEMS306XBL5 04 – MAGNETRON AND AIR FLOW

Written by

in

KEMS306XBL5 04 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Damper Assy.
24392027 Whirlpool Microwave Primary Switch
3Motor, Damper
4Magnetron
5Thermal Protector (2)
6Heating Element
7Thermistor
8Motor, Fan (Convection)
9Heater Duct Assy.
10Fan Blade (Convection)
11Fan Blade (Reflection)
12Plate, Motor Mounting
13Clip, Element (2)
14Collar
15Plate, Protector
16Plate, Thermal Protector
17Insulation
18Cover, Thermal Protector
19Foam Block
20Screw (2)
21Screw
22Foam Block
23Seal, Foam
