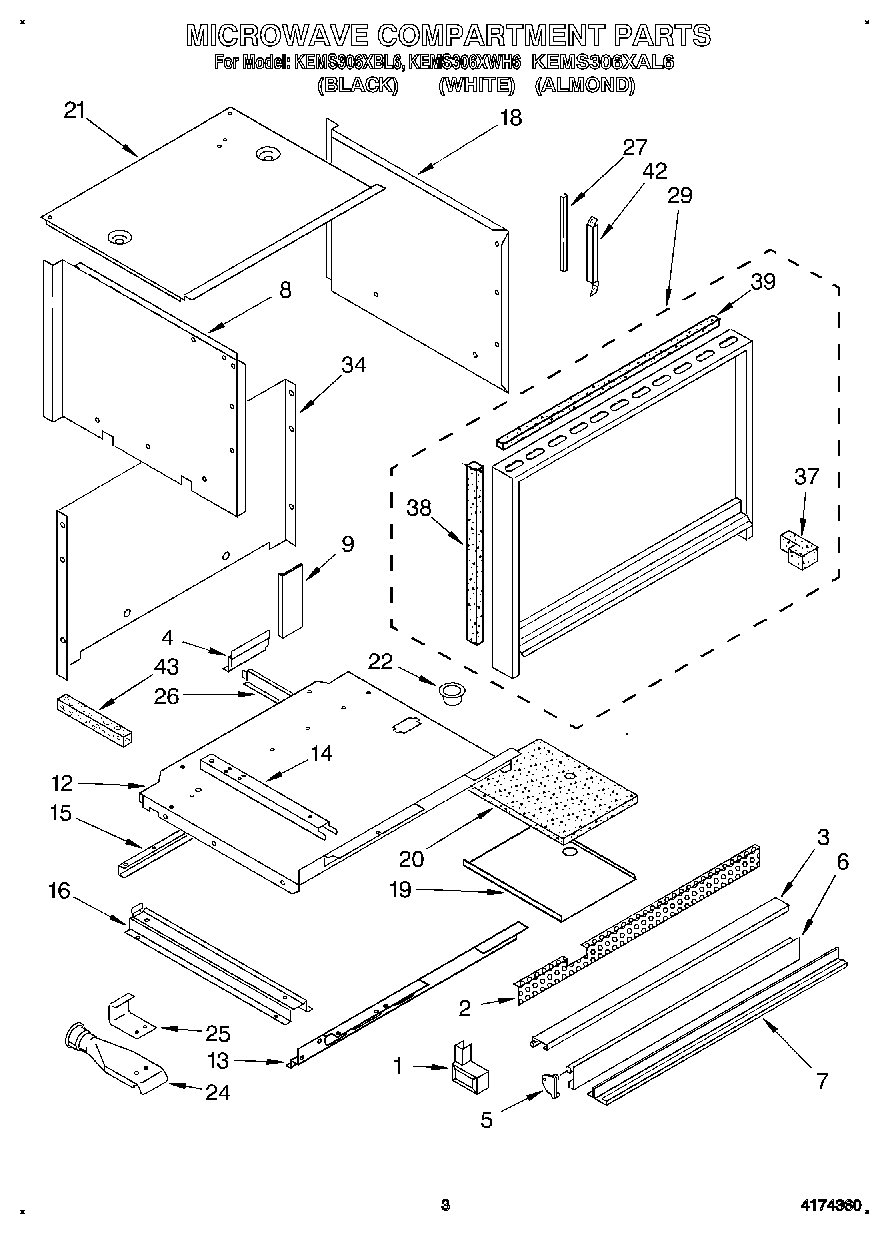

KEMS306XBL6 02 – MICROWAVE COMPARTMENTadmin2025-04-26T10:28:24+00:00KEMS306XBL6 02 – MICROWAVE COMPARTMENT
Products
| Position | Product |
|---|
| 1 | End Cap (Washer) |
| 1 | End Cap, R.H. |
| 1 | End Cap, L.H. |
| 2 | Trim, Oven Vent |
| 3 | WP965173 Whirlpool Dishwasher Screw |
| 3 | Trim, Top (White & Almond Model) |
| 3 | Trim, Top |
| 4 | Baffle, Bottom |
| 5 | Trim, Vent Door (Brite Aluminum, R.H.) |
| 5 | Trim, Vent Door (Brite Aluminum, L.H.) |
| 5 | End Trim, Vent (Right Side) |
| 5 | End Trim, Vent (Left Side) |
| 6 | Door, Vent (Black Model) |
| 6 | Door, Vent (White & Almond Model) |
| 7 | Trim, Bottom |
| 7 | Screw, 10-32 x 1/2 |
| 8 | Side Panel L.H. |
| 9 | Seal, foam |
| 9 | Baffle, Rear |
| 12 | Panel, Support |
| 13 | Support, Brace |
| 14 | Rail, Microwave |
| 14 | Screw (4) |
| 15 | Brace, Bottom |
| 16 | Rail, Chassis |
| 18 | Side Panel, R.H. |
| 19 | Retainer, Insulation |
| 20 | Insulation |
| 21 | Panel, Side L.H. (Screw, 10A x 1/2 (2)) |
| 21 | Panel, Top |
| 22 | Bushing, Snap |
| 24 | Vent Tube |
| 25 | Support, Vent Tube |
| 25 | Screw, |
| 26 | Baffle, Bottom |
| 27 | Protector, Edge |
| 29 | Frame, Outer (Almond) |
| 29 | Frame, Outer (Black) |
| 29 | Frame, Outer (White) |
| 34 | Cover, Rear |
| 34 | WP488729 Whirlpool Refrigerator Door Screw |
| 37 | Seal, Foam (2) |
| 38 | WPL 3147595 |
| 38 | WPL 3184861 |
| 39 | WPL 3147596 |
| 39 | WPL 3184862 |
| 42 | WPL 3150133 |
| 42 | WPL 3150131 |
| 43 | WPL 313758 |
