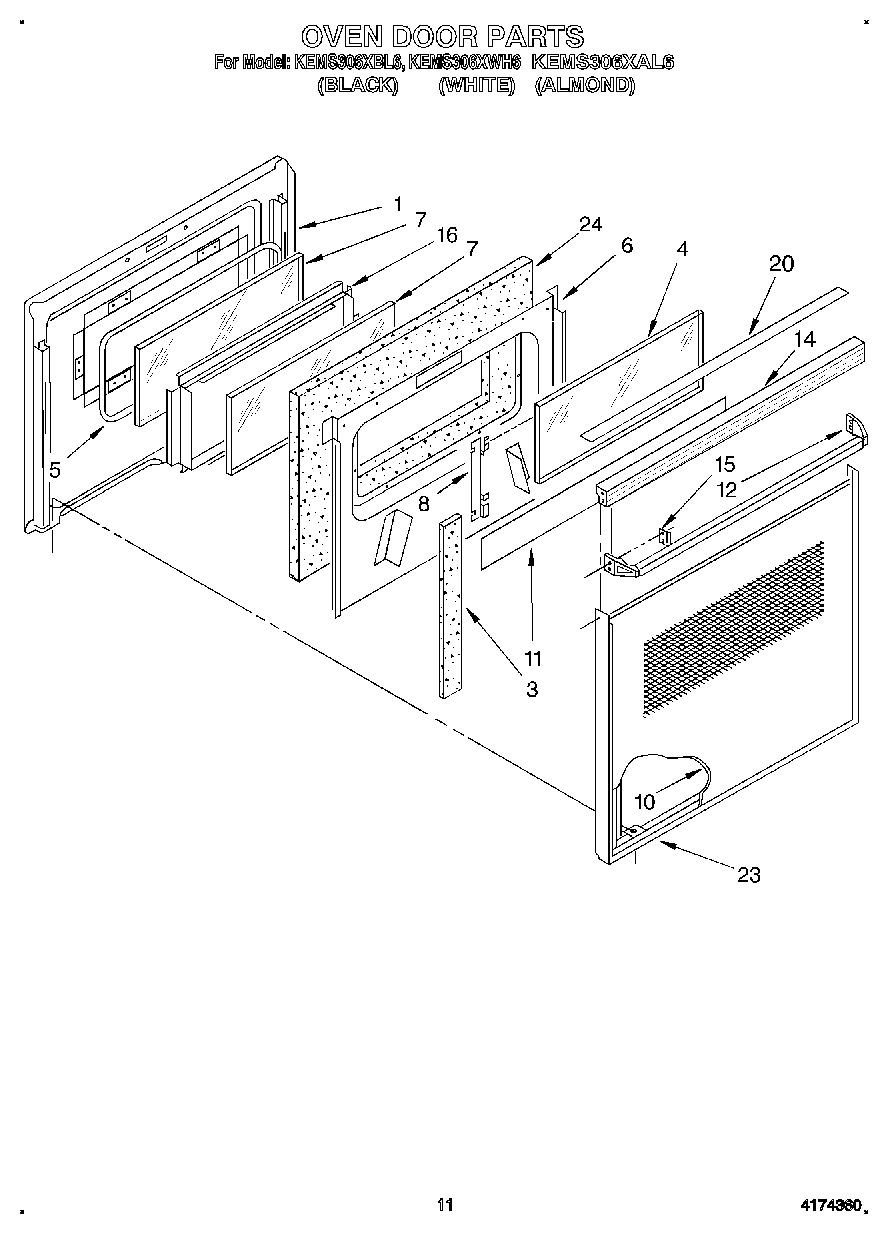

KEMS306XBL6 08 – OVEN DOOR

Products

Position	Product
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
6	Screw
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (White Model)
10	Glass, Panel (Black Model)
10	Glass, Panel (White)
11	Foil, Door
12	Screw
12	Handle, Door (Almond)
12	Back Splash (Screw (4) 10AB x 1/2“)
12	Handle, Door (Black)
12	Handle, Door (White)
14	Top, Door (White Model)
14	Top, Door (Black Model)
15	WP355515 Whirlpool Screw
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
20	Cap, Top
20	Screw
23	Frame, Door
24	Insulation, Door
