KEMS306XWH2 01 – OVEN, LIT/OPTIONAL

KEMS306XWH2 01 – OVEN, LIT/OPTIONAL

Written by

in

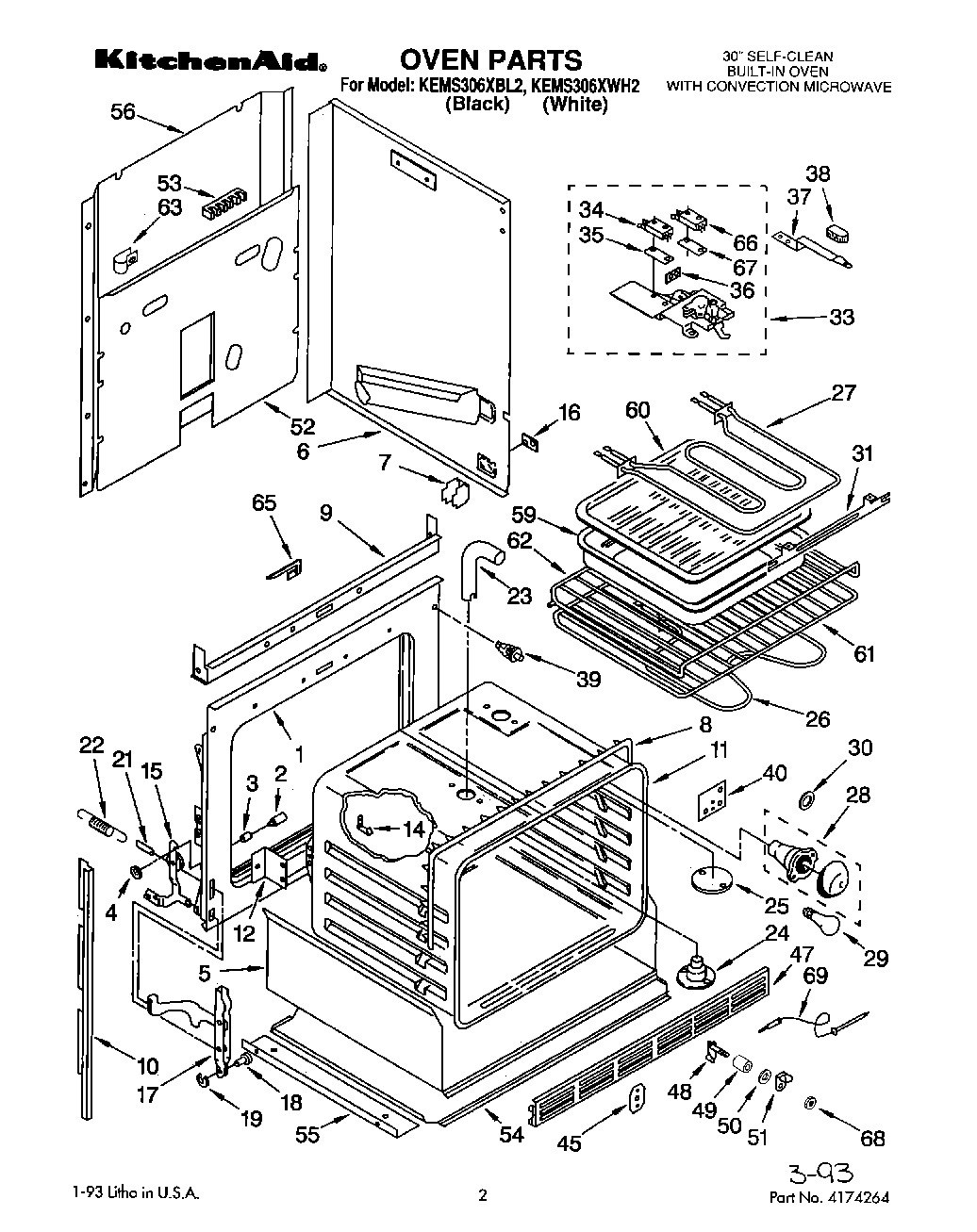

KEMS306XWH2 01 – OVEN, LIT/OPTIONAL

Products

PositionProduct
WPL LIT3181679
Label, Auto Cook Guide
WPL LIT3147005
WPL LIT4174264
Cookbook Microwave
Label, Defrost Guide
WPL LIT3150113
WPL 3171507
WPL LIT3150142
WPL LIT3181729
1Frame, Front
2Pin, Hinge Ear (2)
3Snubber, Door (2)
4Pushnut (2)
5Insulation Tray
6Side Wrapper (Left Side)
6Side Wrapper (Right Side)
7Support, Side Wrapper (4)
8WPL 3185197
9Baffle, Top Insulation
10Side Trim (Right Side)
10Side Trim (Left Side)
11Oven 30“
11SCREW
1498005642 Whirlpool Clip
15Hinge Ear, R.H.
15Hinge Ear, L.H.
16WP308544 Whirlpool Screw
16Plate, Side Panel (2)
17Channel Arm (2)
18WP307986 Whirlpool Hinge Pin
19Retainer Ring (2)
21WP308125 Whirlpool Microwave Range/Cooktop Anchor
22WP308126 Whirlpool Door Spring
23Tube, Vent
24WP90767 Whirlpool Screw
24Eliminator, Smoke
25WPL 310662
26WP661416 Whirlpool Bake Element
27Unit, Broil
28W11594027 Whirlpool Range Oven Light Socket
29RANGE ONLY 40W 120V APPL BULB
31WP488729 Whirlpool Refrigerator Door Screw
31Bracket, Element
33Latch Assembly
33Screw (3)
34Safety Switch
35Insulator, Switch
36Screw
36Shield, Latch
37Latch, Handle
37Screw
38Knob, Latch Handle
38Screw
39Switch, Door
39Screw
40WPL 3183005
45Plate, Cover
47Grill, Bottom (Black)
47Grill, Bottom (White)
47Grill, Bottom (Screw (3))
48Receptacle, Probe
49Spacer – Tubing
50Gasket, Meat Probe
51Jack Cover
52Panel, Back
53WP3184533 Whirlpool Range Light Lens Gasket
53WP112432 Whirlpool Nut Assembly
53Screw (10-12 x .875)
53WPL 3147001
54WPL 310458
55Angle, Support (2)
56Cover, Rear
604396923 Whirlpool Broil Pan Set Gray Porcelain
61Rack, Straight
62Rack, Oven Offset
63WP308605 Whirlpool Refrigerator Clamp
65Shield, Air
65screw
65WPL 309080
66Switch, Lock
67WPL 3147864
67Screw, 10A x 1/2 (2) (Black)
68Bracket, Oven Mounting (2)
69WPL 310433
69WPL 310435
69WPL 3149328
69Probe
