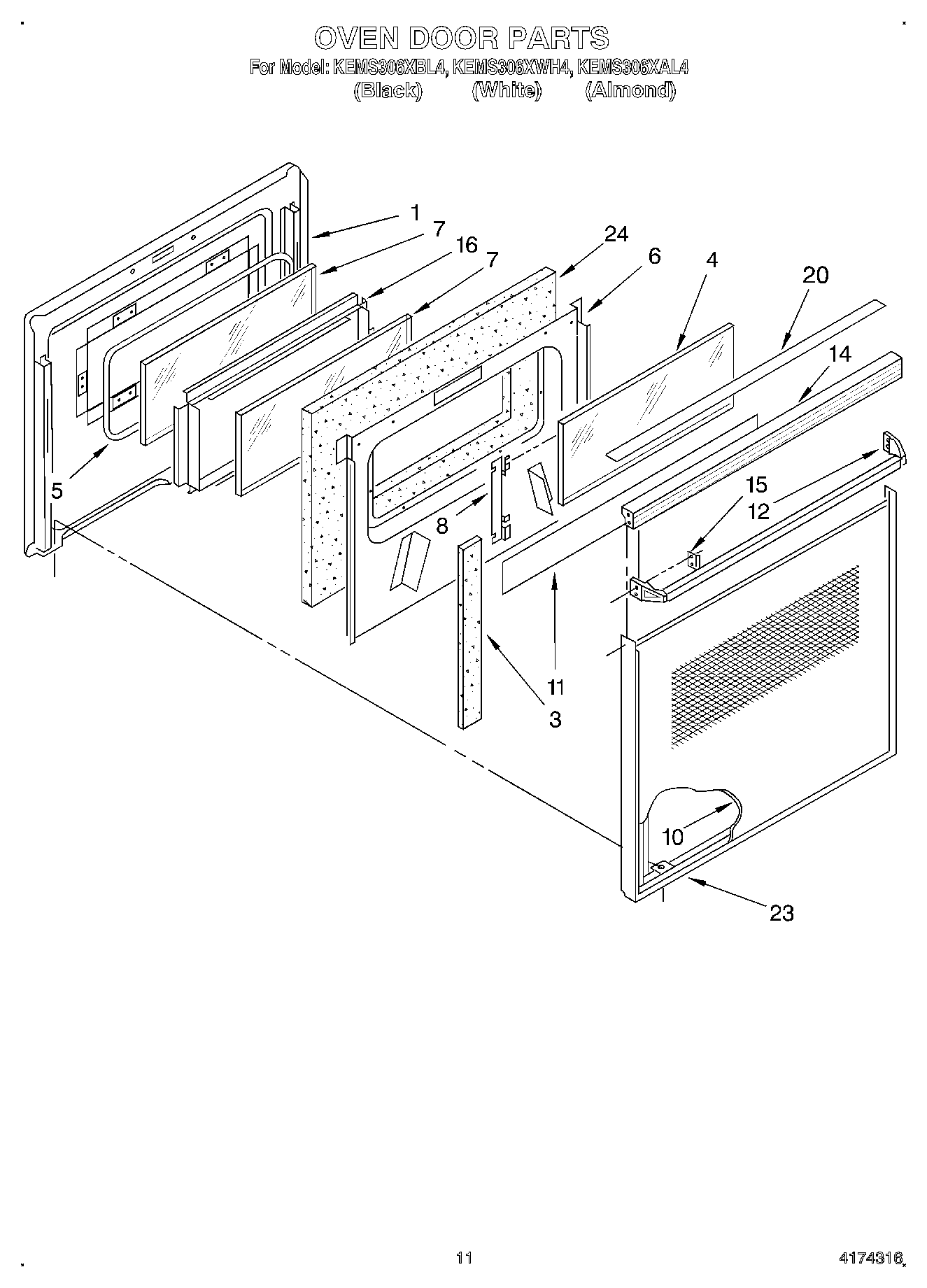

KEMS306XWH4 08 – OVEN DOOR

Products

Position	Product
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (White)
10	Glass, Panel (White Model)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Oven Door (White Model)
12	Handle, Oven Door (Black Model)
12	WP308685 Whirlpool Microwave Screw
12	Handle, Door (Almond)
14	Top, Door (Black Model)
14	Top, Door (White Model)
15	WP355515 Whirlpool Screw
15	Clip, Mtg (2)
16	Screw
16	Frame, Inner
20	Cap, Top
20	Screw
23	Frame, Door
24	Insulation, Door
