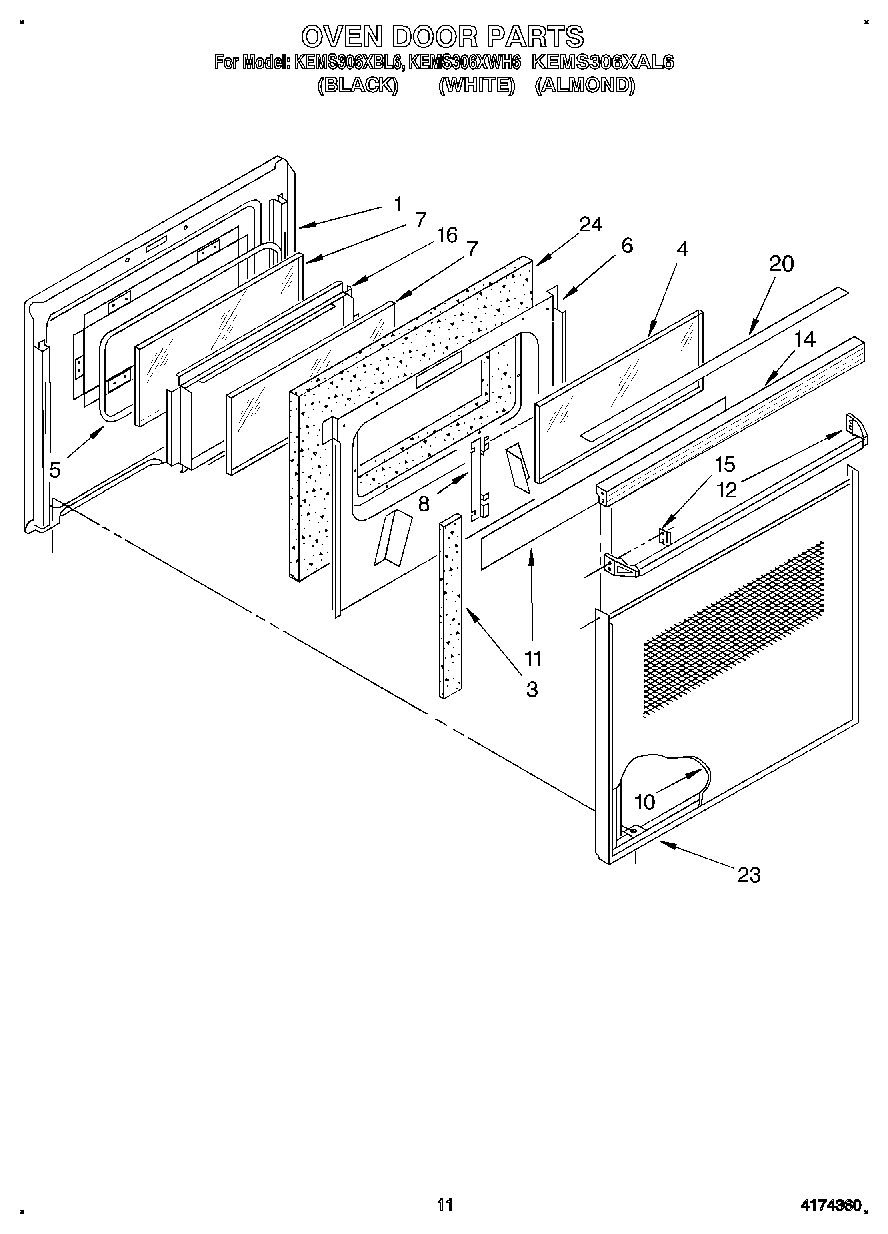

KEMS306XWH6 08 – OVEN DOOR

Products

PositionProduct
1Liner, Door
3Seal, Flange (2)
4Glass, Clear
5Seal, Door
6Retainer,
6Screw
7WP3169203 Whirlpool Door Glass
8Retainer, Glass (2)
10Glass, Panel (White Model)
10Glass, Panel (Black Model)
10Glass, Panel (White)
11Foil, Door
12Screw
12Handle, Door (Almond)
12Back Splash (Screw (4) 10AB x 1/2“)
12Handle, Door (Black)
12Handle, Door (White)
14Top, Door (White Model)
14Top, Door (Black Model)
15WP355515 Whirlpool Screw
15Clip, Mtg (2)
16Frame, Inner
16Screw
20Cap, Top
20Screw
23Frame, Door
24Insulation, Door
