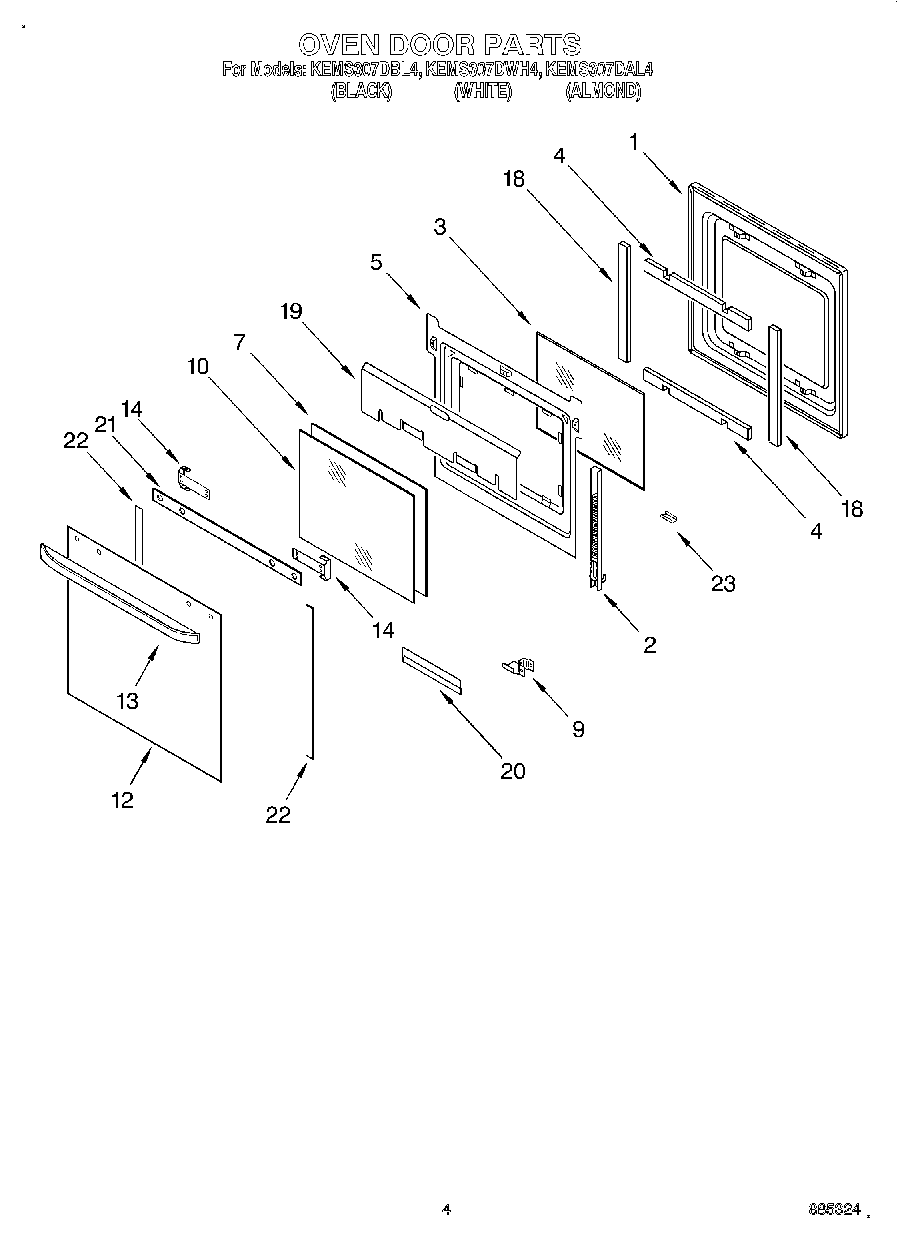

KEMS307DAL4 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP4455525 Whirlpool Oven Door Hinge
2	WP4449743 Whirlpool Screw
3	WP4449259 Whirlpool Glass Window
4	Insulation, Top and Bottom Door
5	Retainer, Glass
9	Retainer, Glass
10	WP4449263 Whirlpool Inner Door Glass
12	Door Glass, Outer (White Model)
12	Door Glass, Outer (Almond Model)
12	WP9759641 Whirlpool Outer Door Glass
13	Handle, Door (Almond Model)
13	Door Handle (Black Model)
13	Handle, Door (White Model)
14	Bracket, Handle
14	Screw
18	W11688413 Whirlpool Insulation
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
22	Seal, Sides
23	Retainer, Clip (Almond Model)
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
