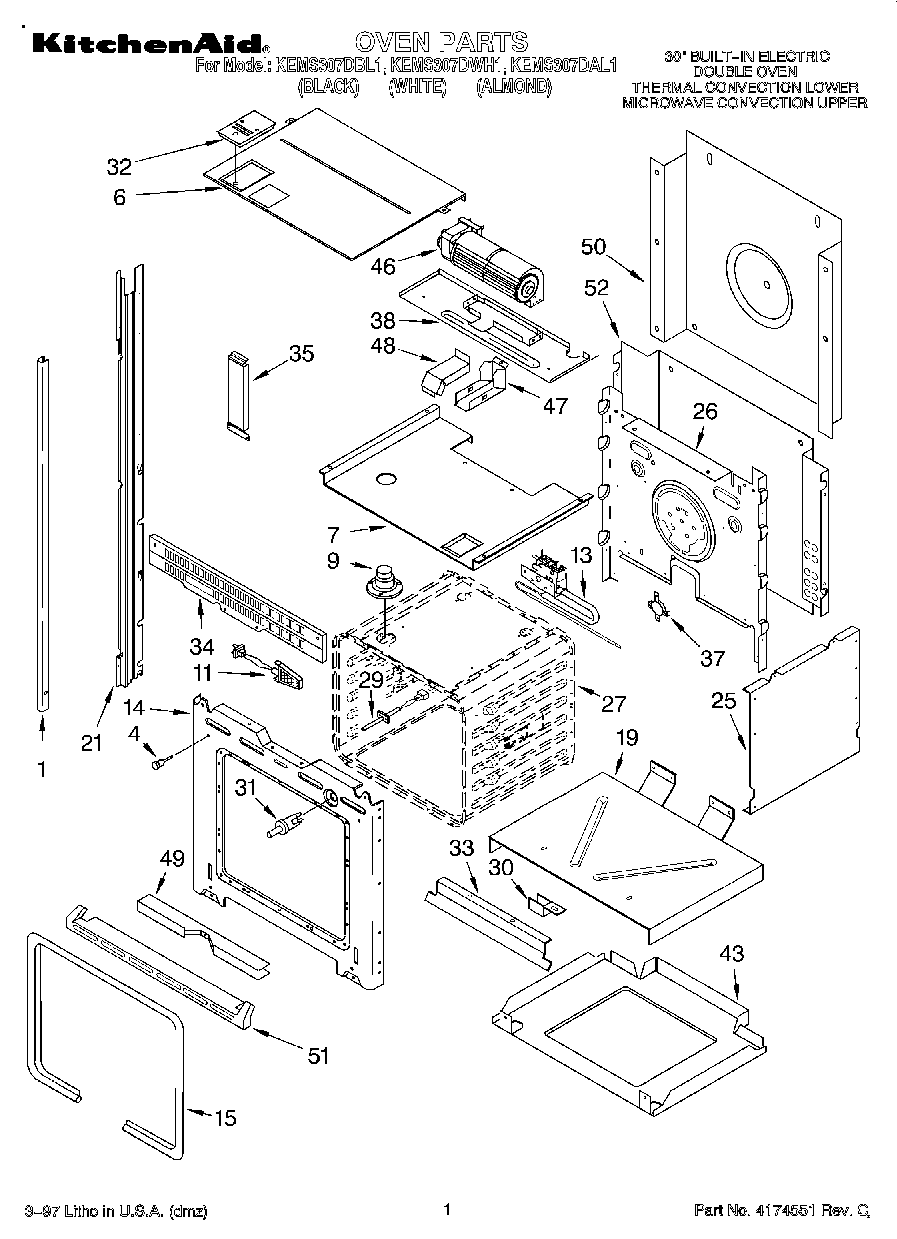

KEMS307DBL1 01 – OVEN

Products

Position	Product
1	Trim, Side (LH Black)
1	Trim, Side (RH White)
1	Trim, Side (LH Almond)
1	Trim, Side (LH White)
1	Trim, Side (RH Almond)
1	Trim, Side (RH Black)
1	Trim, Side (White)
1	WP8281236 Whirlpool Screw
4	4448520 Whirlpool Oven Bumper
6	Divider, Vent
7	Partition
9	Tube, Vent
11	WP4448972 Whirlpool Oven Light
11	4449748 Whirlpool Oven Screw
13	Safety Switch (Oven Temp)
14	Frame, Front
14	Screw
15	W11675844 Whirlpool Oven Gasket
19	Support, Insulation
21	814375 Whirlpool Oven Rail Mount
21	814376 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	Sensor
30	WPL 4449845
31	Switch, Door
32	Vent Box Assy
33	Deflector, Vent
34	Vent, Center
34	WP4450038 Whirlpool Screw
35	Extension Filler
37	Thermostat (TOD) (Temp.) SPST
38	Plate, Adapter
43	Base, Chassis
46	Blower
47	Vent, Bottom
48	Vent, Top
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	WP4449809 Whirlpool Screw
50	Cover, Back
51	Screw, (2)
51	Trim, Bottom (Black Model)
51	Trim, Bottom (White Model)
51	Trim, Bottom (Almond Model)
52	WPL 4450365
52	Chassis, Back
52	W11684730 Whirlpool Insulation
52	Insulation, Bottom
