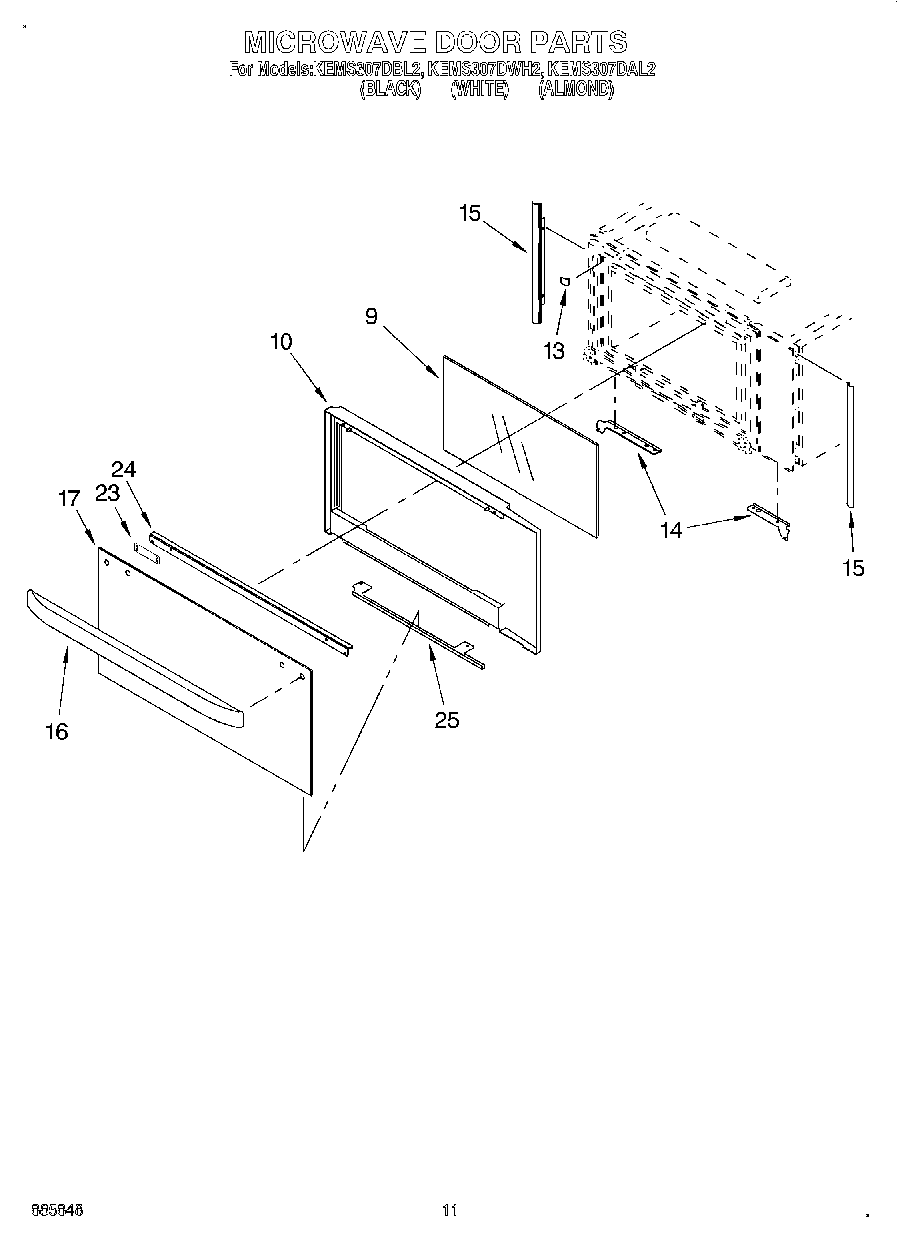

KEMS307DBL2 09 – MICROWAVE DOOR, OPTIONAL

Products

Position	Product
9	Glass, Middle
10	WP4450038 Whirlpool Screw
10	WP8303556 Whirlpool Microwave Door Frame
13	Tape, Foam
14	Bracket, Mounting (Left Side)
14	Bracket, Mounting (Right Side)
15	Filler, Side (Left Side)
15	Filler, Side
16	Handle, Door (White Model)
16	Door Handle (Black Model)
16	Handle, Door (Almond Model)
17	Glass, Outer (White Model)
17	Glass, Outer (Almond Model)
17	Glass, Outer (Black Model)
23	Spacer (Stainless)
24	Screw
24	Bracket, Handle
25	4450950 Whirlpool Oven Conduit
25	Harness, Wire (Latch)
25	Harness, Wire (Door Switch)
25	WPL 591014
25	261900 Whirlpool Microwave Spray
25	WPL 4454708
25	Filler Kit (Bl)
25	Filler Kit (Wh)
25	Filler Kit (Al)
25	Wire, 25“ Roll (White 14 GA.)
25	Clip, Glass (Black Model)
25	Clip, Glass (White Model)
25	Clip, Glass (Almond Model)
25	1
25	Wire (14 Ga. 200 c Brown)
25	18 Ga. 80~c Rating (Red)
25	WP482338 Whirlpool Refrigerator Adhesive
25	72032 Whirlpool Touch Up Paint Black
25	285006 Whirlpool Spray
25	4450800 Whirlpool Oven Screw
25	Wire, 25` Roll (Red 14 Ga.)
25	Wire, 25` Roll (Black 14 Ga.)
25	WP488366 Whirlpool Refrigerator Clamp
25	WP4449809 Whirlpool Screw
25	72017 Whirlpool Appliance Touch-Up Paint White
25	814381 Whirlpool Pin
25	WP4448950 Whirlpool Screw
25	Ground (M/W)
25	Wire (12 Ga. 150 c Black)
25	Wire (14 Ga. 150 c Yellow)
25	Wire (14 Ga. 150 c Orange)
25	Wire (14 Ga. 150 c Green)
25	Wire (14 Ga. 150 c Brown)
25	Wire (14 Ga. 150 c Blue)
25	WP261869 Whirlpool Microwave Paint
25	242831 Whirlpool Oven Wire
25	Transformer
25	350930 Whirlpool White Spray Paint
