KEMS307DBL4 01 – OVEN

KEMS307DBL4 01 – OVEN

Written by

in

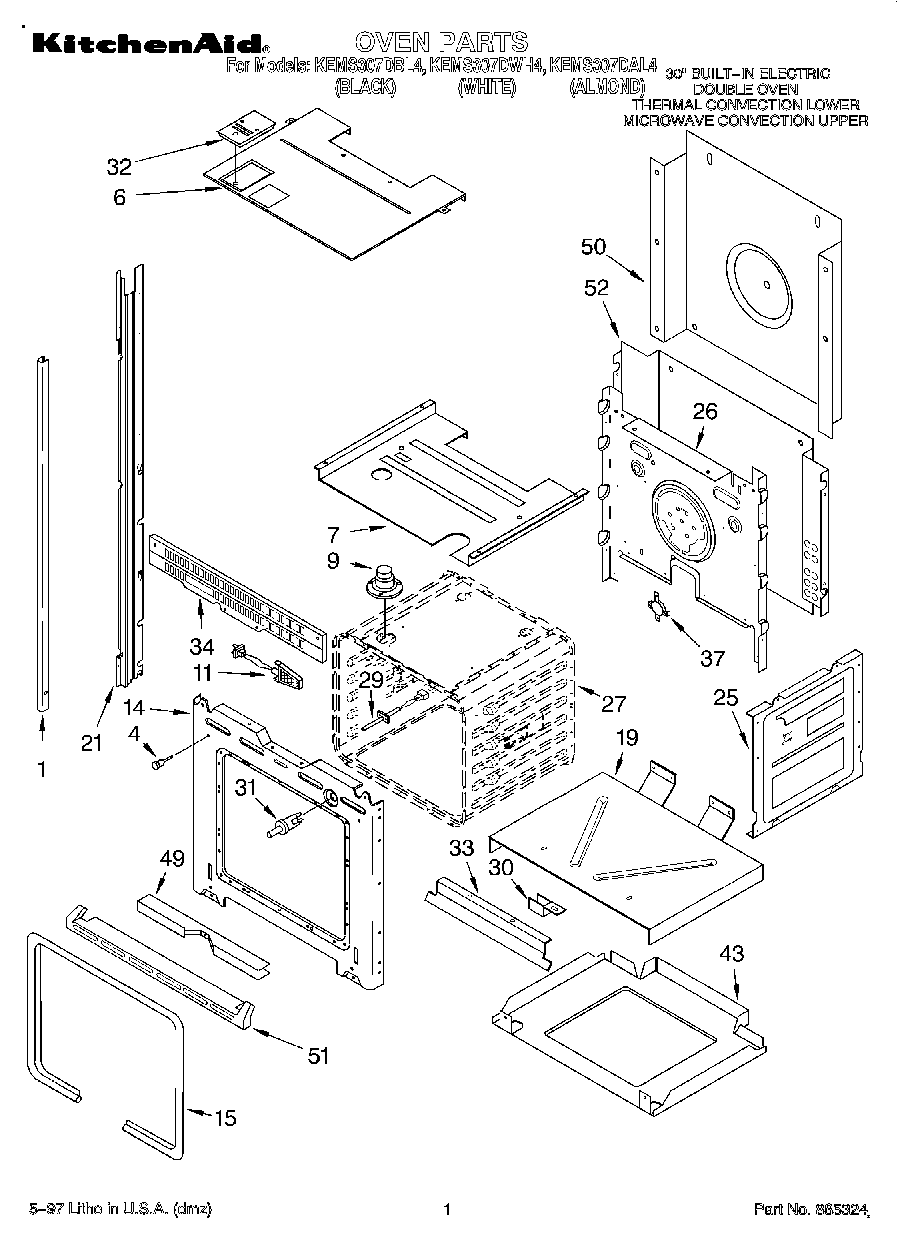

KEMS307DBL4 01 – OVEN

Products

PositionProduct
1Trim, Side (RH Black)
1Trim, Side (RH Almond)
1WP8281236 Whirlpool Screw
1Trim, Side (White)
1Trim, Side (LH White)
1Trim, Side (LH Black)
1Trim, Side (RH White)
1Trim, Side (LH Almond)
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Partition
9Tube, Vent
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
14Screw
14Frame, Front
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
21WP4448444 Whirlpool Grommet
21814376 Whirlpool Oven Rail Mount
21814375 Whirlpool Oven Rail Mount
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29Sensor
30WPL 4449845
31Switch, Door
32Vent Box Assy
33Deflector, Vent
34Vent, Center
34WP4450038 Whirlpool Screw
37Thermostat (TOD) (Temp.) SPST
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4449809 Whirlpool Screw
50Cover, Back
51Screw, (2)
51Trim, Bottom (Black Model)
51Trim, Bottom (White Model)
51Trim, Bottom (Almond Model)
52Insulation, Bottom
52Chassis, Back
52W11684730 Whirlpool Insulation
52WPL 4450365
